ASSEMBLY
'-
.......
1
Read and follow the assembly and adjustment instructions.
All fasteners are in the parts bag. Do not discard any parts or
materials until the unit is assembled.
A WARNING
Before doing any assembly or maintenance to the unit,
remove the wire from the spark plug.
NOTE: Torque is measured in foot-pounds (metric unit
is Nm). This measurement describes how tight a nut or bolt
must be. The torque is measured with a torque wrench.
The following components will be found in the carton with the
quantities shown in ( ):
(1)Edger Operator's Manual
(1)Engine Operator's Manual
(1)Upper Handle
(1)Lower Handle
(1)Handle Panel
(1)Control Rod
(1)500 ml container of engine oil
(1)Parts Bag containing the following:
(4) Pipe Bolts
(4) M8X16 Bolts
(8) M8 Nuts
(2) Hair pins (Cotter pins)
(2) Cable ties
A WARNING
Always wear ANSI compliant safety glasses with side
shields while assembling the edger.

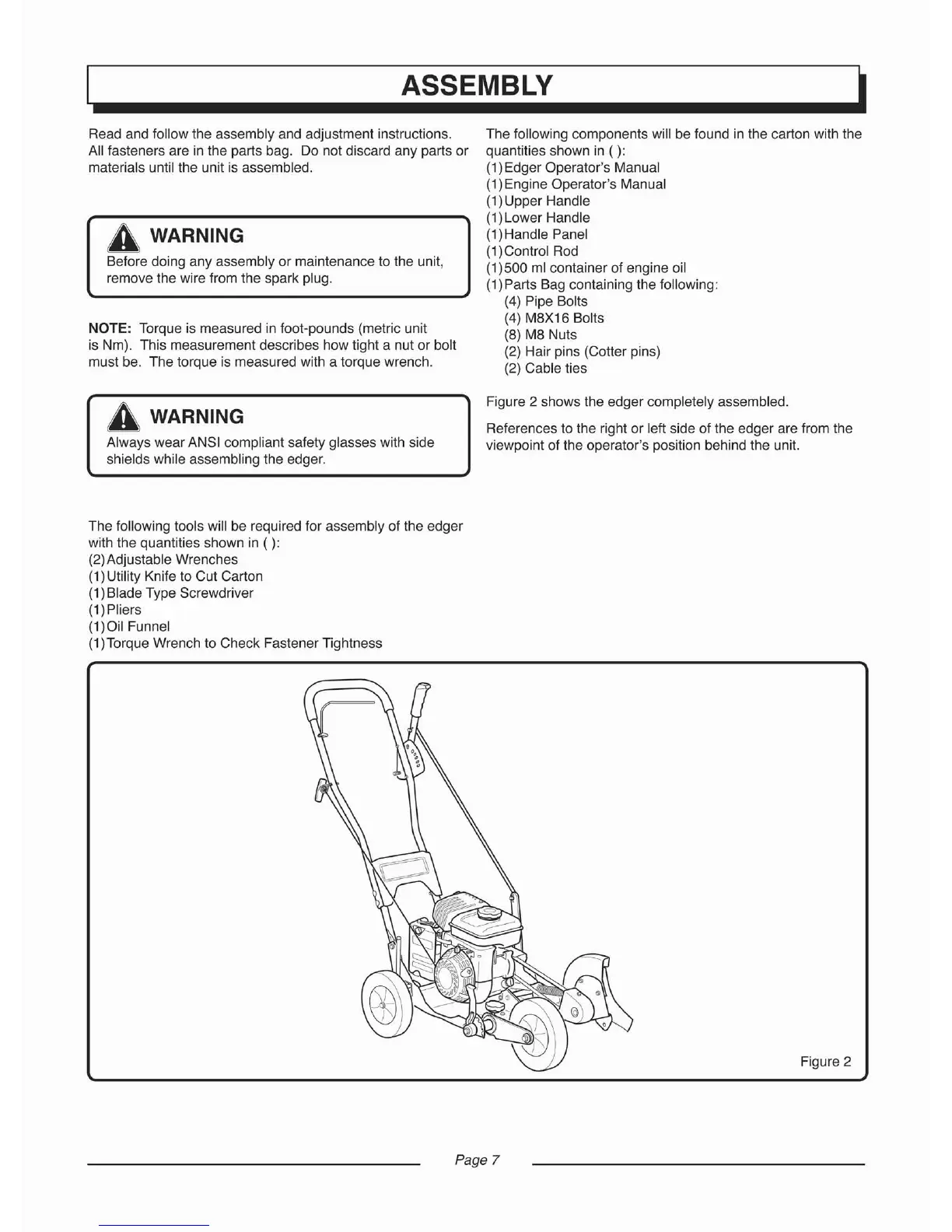

Figure 2 shows the edger completely assembled.
References to the right or left side of the edger are from the
viewpoint of the operator's position behind the unit.
The following tools will be required for assembly of the edger
with the quantities shown in ( ):
(2)Adjustable Wrenches
(1)Utility Knife to Cut Carton
(1)Blade Type Screwdriver
(1)Pliers
(1)Oil Funnel
(1)Torque Wrench to Check Fastener Tightness
Figure 2
Page 7
