FEATURES
'-
1
Engine Displacemen
t.
79cc Oil Capacity: 13.5 oz. [400 ml]
Gasoline Capacity: 1.69 qt. [1.6 L] Spark Plug Model E7RTC
Gasoline Type: Unleaded Regular Spark Plug Gap 0.027-0.031 in. [0.7-0.8 mm]
Oil Type (API SG-SL) SAE 30 (above 32 degrees); Edger Blade Size 9 in. [228 mm]
..........
...........
..
SAE 5W-30 (below 32 degrees)
KNOW YOUR EDGER
READ THE OPERATOR'S MANUAL AND ALL SAFETY RULES BEFORE YOU OPERATE the edger. To familiarize yourself
with the location of the controls, compare Figure 1 with your edger. Save this manual for future reference.

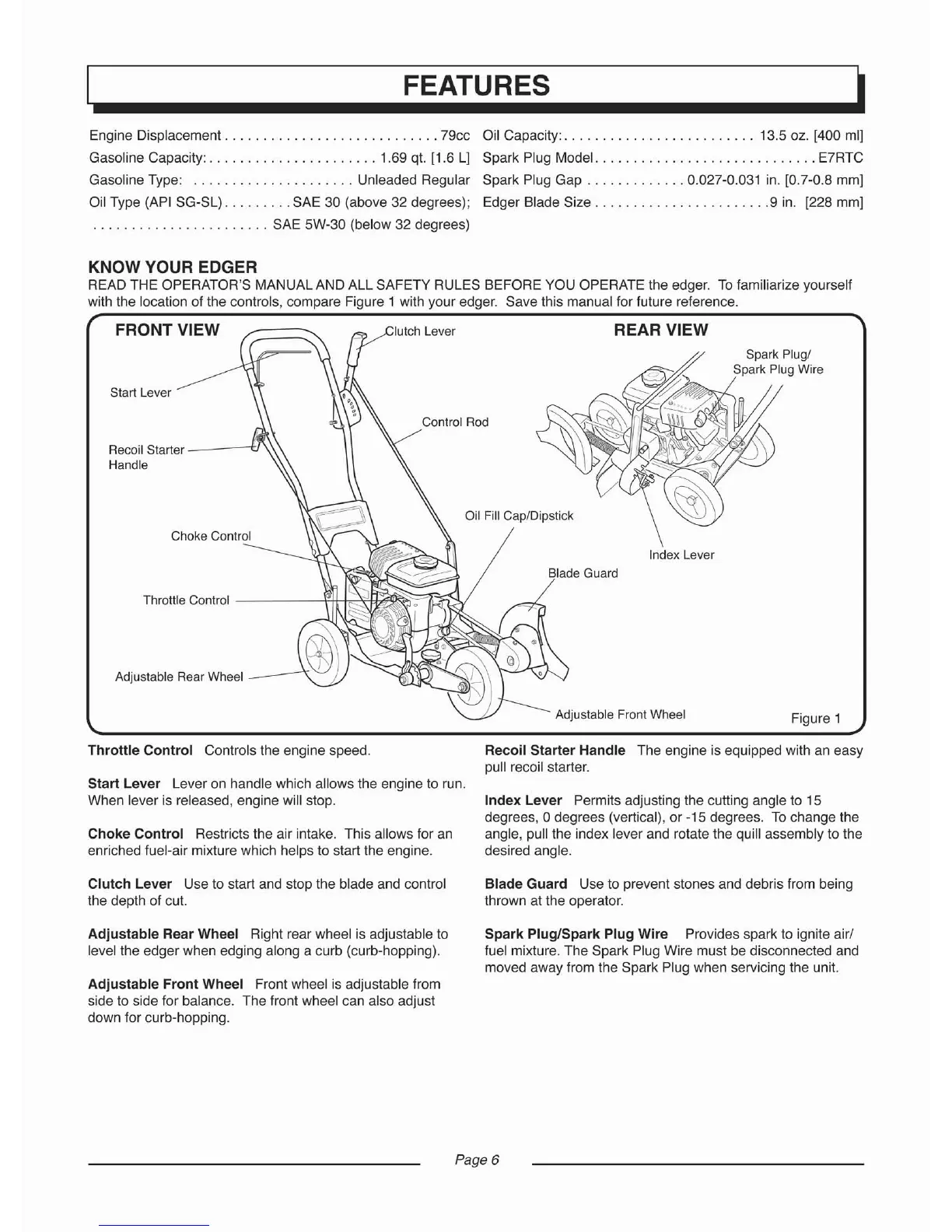

Figure 1
Spark
P
IU9
/
Spark Plug Wire
Index Lever
REAR VIEW
Adjustable Front Wheel
Blade Guard
Oil Fill Cap/Dipstick
Control Rod
lutch Lever
Throttle Control
----
~~~~~~~~
~
Adjus
table
Rear
Wheel
---
,
Start Lever
Choke Control
FRONT VIEW
Recoi l Starter
-tJ
Handle
Throllie
Control
Controls the engine speed.
Start Lever Lever on handle which allows the engine to run.
When lever is released, engine will stop.
Choke
Control
Restricts the air intake. This allows for an
enriched fuel-air mixture which helps to start the engine.
Recoil Starter Handle The engine is equipped with an easy
pull recoil starter.
Index Lever Permits adjusting the cutting angle to 15
degrees, 0 degrees (vertical), or -15 degrees. To change the
angle, pull the index lever and rotate the quill assembly to the
desired angle.
Clutch Lever Use to start and stop the blade and control
the depth of cut.
Blade Guard Use to prevent stones and debris from being
thrown at the operator.
Adjustable
Rear Wheel Right rear wheel is adjustable to
level the edger when edging along a curb (curb-hopping).
Adjustable
Front Wheel Front wheel is adjustable from
side to side for balance. The front wheel can also adjust
down for curb-hopping.
Spark Plug/Spark Plug Wire Provides spark to ignite air/
fuel mixture. The Spark Plug Wire must be disconnected and
moved away from the Spark Plug when servicing the unit.
