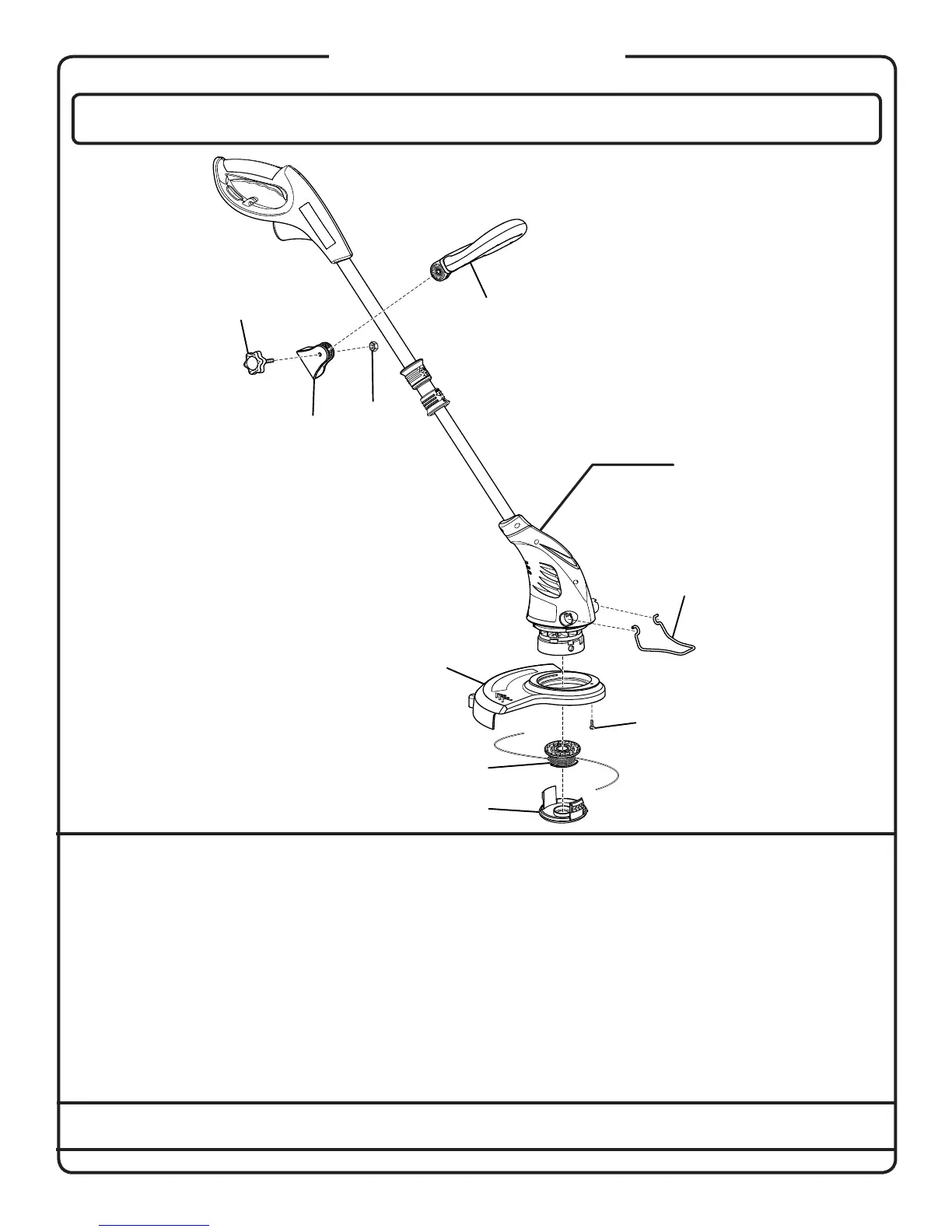

HOMELITE STRING TRIMMER
MODEL NO. UT41110
7
8
6
9
4
3
2
5
1
* Standard Hardware Item — May Be Purchased Locally
PARTS LIST
The model number will be found on a plate attached to the engine housing. Always mention the model number
in all correspondence regarding your STRING TRIMMER or when ordering replacement parts.
1 34108178AG Spool Cap ..................................................................................................................
1
2 31104178G Spool ..........................................................................................................................1
3 33301178G Edger Guide ...............................................................................................................1
4 31100178G Grass Shield ...............................................................................................................1
5 3220811G * Screw (M4 x 16 mm) ..................................................................................................1
6 3110585G Front Handle Assembly ..............................................................................................1
7 3410705AG Knob Screw (M6) ........................................................................................................1
8 3290205G * Hex Nut (M6) ..............................................................................................................1
9 3110482AG Clamp .........................................................................................................................1
987000221 Operator’s Manual ......................................................................................................1
KEY PART
NO. NUMBER DESCRIPTION QTY
NOTE: The assembly shown represents an important part of the Double Insulated System. To avoid the possibility of alteration or
damage to the system, service should be performed by your nearest Homelite authorized service dealer.
SEE NOTE
