Homelite UT42120 - Illustrated Parts List

Page 12 – English

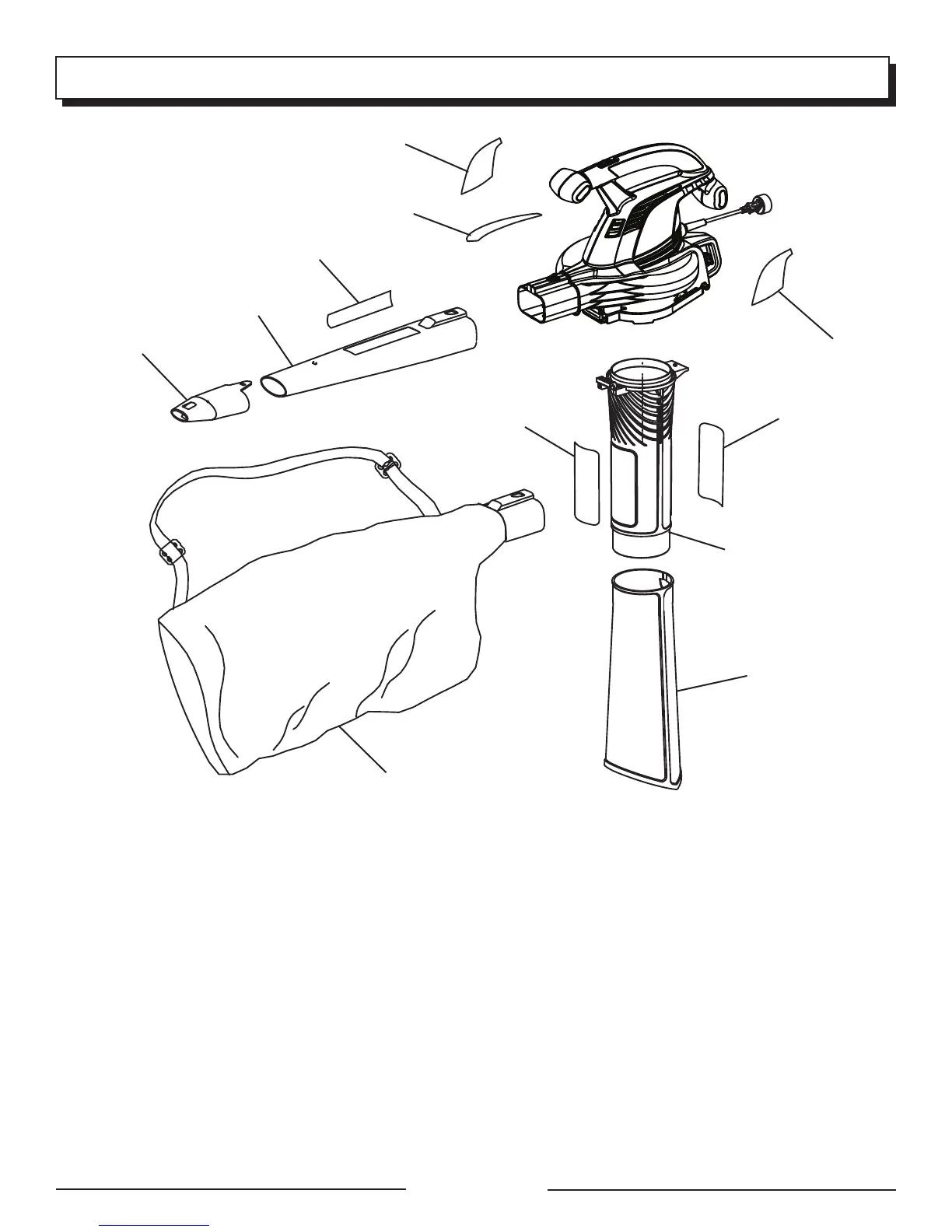

ILLUSTRATED PARTS LIST
1 34115142G High Velocity Nozzle .................................................................................................. 1
2 31104145AG Blower Tube ............................................................................................................... 1
3 099964001901 Logo Label (Blower Tube) .......................................................................................... 1
4 099964001903 Icon Label .................................................................................................................. 1
5 099964001904 Logo Label ................................................................................................................. 1
6 09996400190 Data Label .................................................................................................................. 1
7 31118142AG Vacuum Bag .............................................................................................................. 1
8 31107145G Upper Vacuum Tube .................................................................................................. 1
9 34107142G Lower Vacuum Tube .................................................................................................. 1
10 099964001902 Logo Label (Upper Vacuum Tube) ............................................................................. 2
987000908 Operator’s Manual (Not Shown)
Key Part
No. Number Description Qty.
1
2
3
4
5
6
7
8
9
10
10
