MAINTENANCE
NOTE: Do not replace the screw with an ordinary
screw. Use only identical replacement parts from
the manufacturer when replacing parts.
In addition to preventing chain contact with solid
objects at the nose of the bar, the SAFE-T-TIP also
helps keep the chain away from abrasive surfaces,
such as the ground. Keep it on the right hand side
of the bar where it will be between the chain and
the ground during flush with ground cutting.
The mounting screw requires a 5/16 in. wrench (or
adjustable wrench) to achieve the recommended
torque of 35 to 45 in.lb. A torque within this range
can be achieved by using the following method.
Tighten the screw with wrench until snug.
From the snug position, tighten the screw an
additional 3/4 of a turn using a wrench.
STORING THE PRODUCT
See Figure 50.
Clean all foreign material from the product. Store
it in a well-ventilated place that is inaccessible
to children. Keep away from corrosive agents
such as garden chemicals and de-icing salts.
Always place the sleeve (UT43102) or scabbard
(UT43122) on the bar and chain before storing
or transporting the chain saw. Use caution to
avoid the sharp teeth of the chain.
Model UT43122 only: Place chain saw in the
storage bag as shown before storing or trans-
porting.

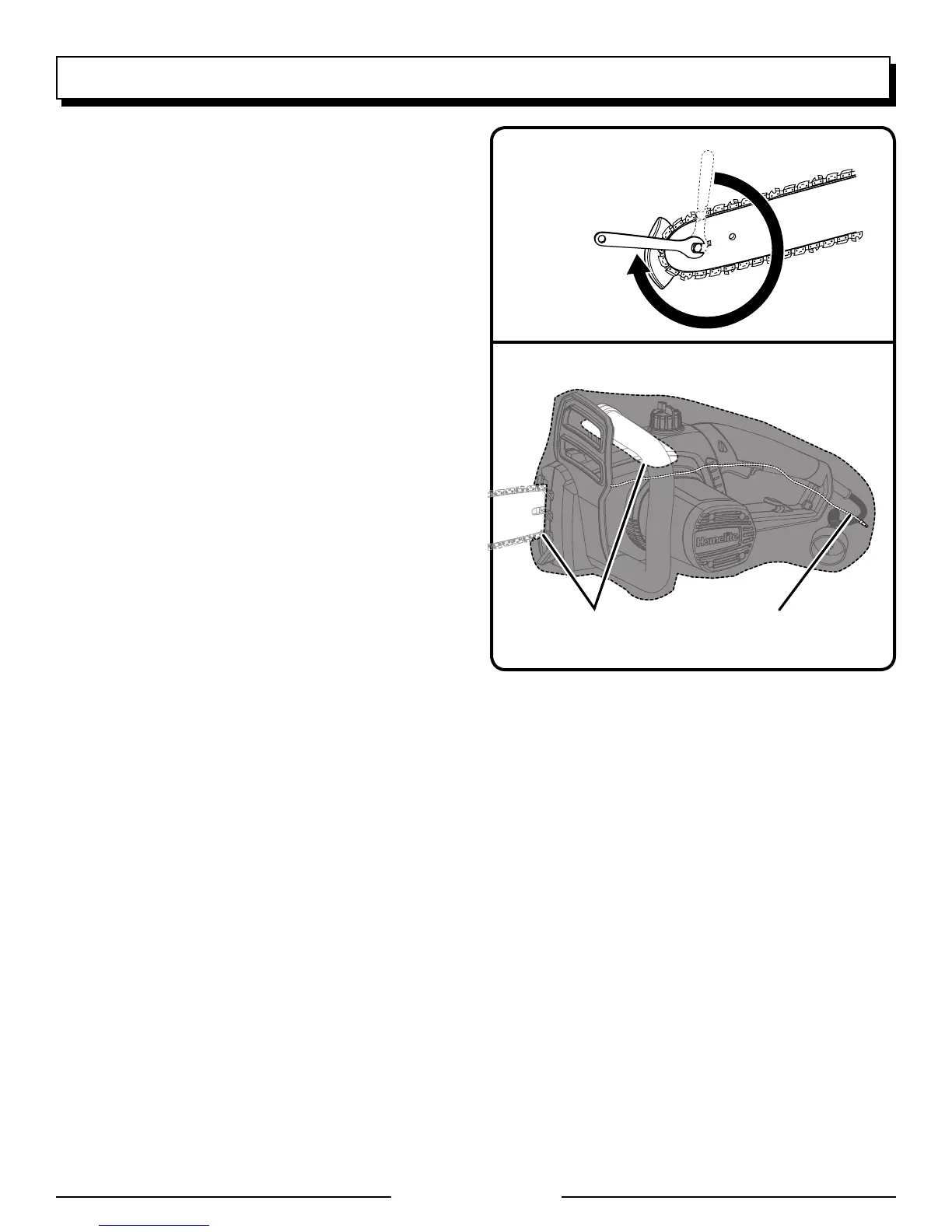

TIGHTEN
3/4 OF A
TURN
Fig. 49
Fig. 50
MODEL UT43122 ONLY
STORAGE BAG
OPENINGS
ZIPPER
