PRODUCT SPECIFICATIONS
FEATURES
UT43102/UT43103
Bar length ....................................................14 in.
Chain pitch .............................................. .375 in.
Chain gauge ............................................ .050 in.
Chain type ........................Low Profile Skip Tooth
Drive sprocket ..........................................6-tooth
Input .................. 120 V, AC only, 60 Hz, 9 Amps
Chain oil tank capacity .................................6 oz.
Weight - No bar, chain, or lubricant ..........7.8 lbs.

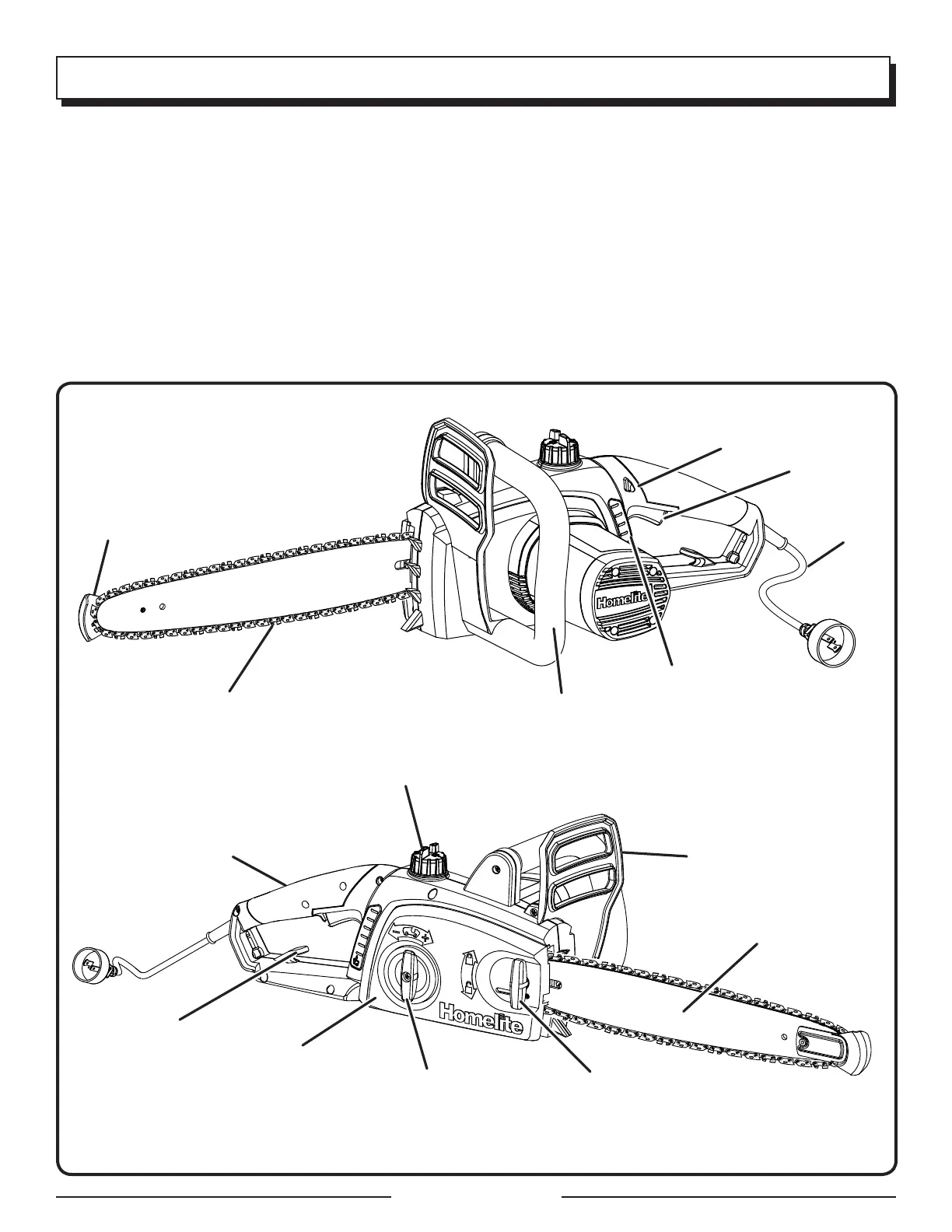

Fig. 6
FRONT HAND
GUARD
FRONT
HANDLE
POWER
CORD
SWITCH
LOCK-OUT
OIL RESERVOIR
CAP
SAFE-T-TIP
®
CHAIN
TENSIONING
KNOB
CHAIN COVER
UT43122
Bar length ....................................................16 in.
Chain pitch .............................................. .375 in.
Chain gauge ............................................ .050 in.
Chain type ........................Low Profile Skip Tooth
Drive sprocket ..........................................6-tooth
Input ................. 120V, AC only, 60 Hz, 12 Amps
Chain oil tank capacity .................................6 oz.
Weight - No bar, chain, or lubricant ..........8.5 lbs.
QUICK VIEW
OIL INDICATOR
CHAIN COVER
LOCK KNOB
REAR
HANDLE
CORD
RETAINER
SWITCH
TRIGGER
GUIDE
BAR
LOW KICKBACK
SAW CHAIN
