10 11
ASSEMBLY
WARNING:
Stop the engine and disconnect the spark plug wire
before installing parts, making adjustments, cleaning, or
when not in use. Failure to do so could result in possible
serious personal injury.

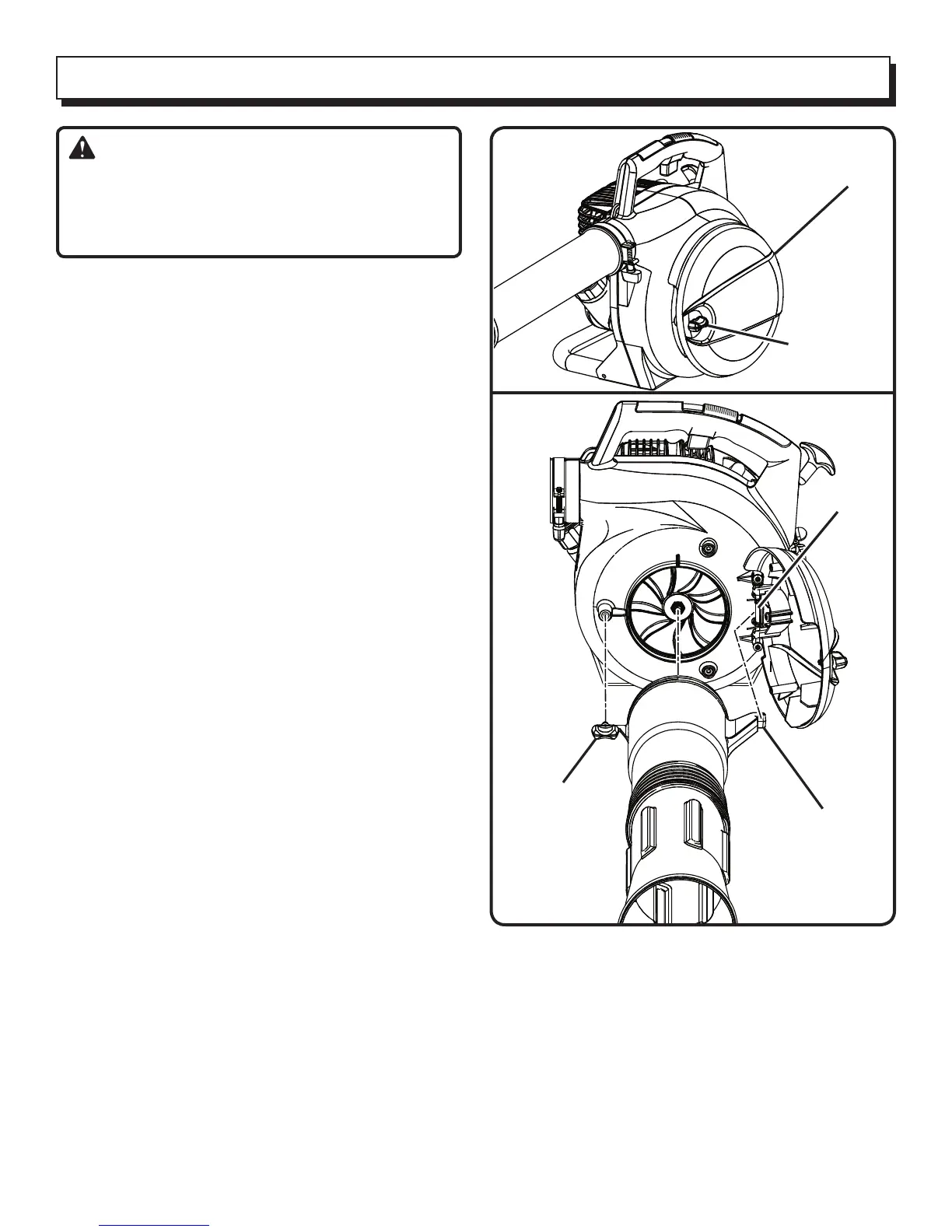

INSTALLING THE VACUUM TUBES
See Figures 6 - 7.
To install the vacuum tubes:
n Screw the upper and lower vacuum tubes together and
tighten securely.
n Loosen the door knob on the inlet cover door and open.
Place the notch in the support arm of the upper vacuum
tube under the hinge of the inlet cover door.
n Push the upper vacuum tube into the blower housing.
n Align the upper vacuum tube knob with the hole in the
housing and tighten securely.
To remove the vacuum tubes:
n Loosen the upper vacuum tube knob.
n Remove the vacuum tubes from the blower housing.
n Close the inlet cover door and tighten the door knob
securely.
INLET COVER
DOOR
DOOR KNOB
Fig. 7
Fig. 6
NOTCH IN
SUPPORT ARM
HINGE
UPPER
VACUUM TUBE
KNOB
