3.3 Safety Grille and Fan Blade

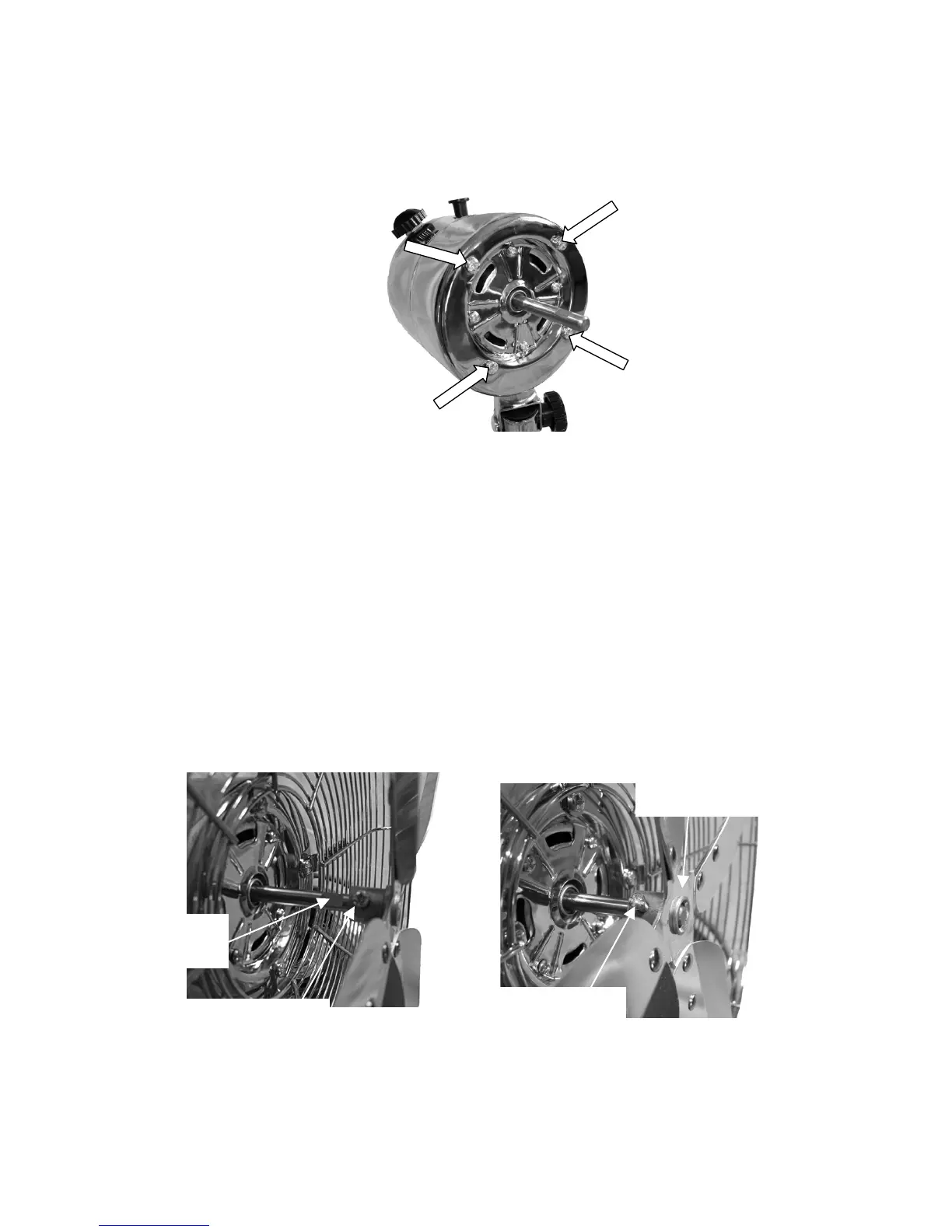

To assemble the safety grille and blade assembly, first take the motor assembly and
remove the 4 screws as identified.
Fit the back safety grille into position (with the handle on the back of the grille at the
top) and refit the 4 screws and tighten.
Remove the protective plastic sleeve from the motor spindle shaft and discard.
Next, rotate the motor spindle until the “flat” surface is facing up.
Slide the fan blade onto the spindle ensuring the screw is lined up with the “flat”
surface on the spindle as shown.
Push on until the end of the spindle is flush with the end of the fan blade hole, then
tighten the screw.
