Homeright QUICK FINISH - Setup

6
ENGLISH
SETUP
ASSEMBLY
Attention
Make sure the power cord is unplugged.

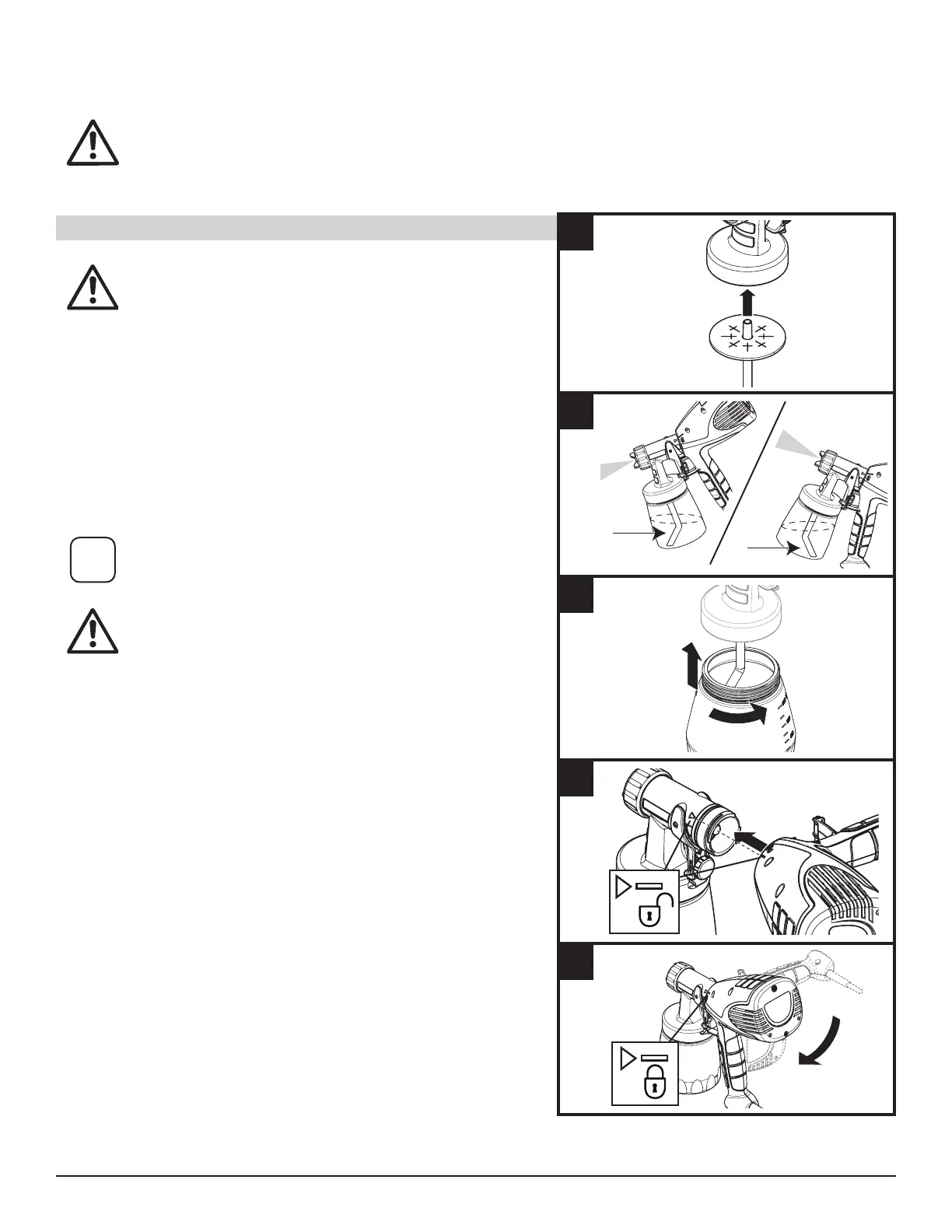

1. Insert the suction tube into the intake opening.
2. Align the pickup tube:
A If spraying downward, the angled end of the pickup tube
should be pointing toward the front of the nozzle.
B If spraying upward, the angled end of the pickup tube
should be pointing toward the rear of the nozzle.
i
Make sure the pickup tube is inserted as
far as it will go to ensure a tight fit.
Attention
Never tip the sprayer at more than a 45°
angle. Material could get into the turbine
and damage the sprayer.
3. Carefully screw the cup back onto the nozzle assembly.
Tighten firmly.
4. Align the arrow on the nozzle with the “unlock” symbol on
the turbine.
5. Insert and twist the nozzle into the turbine toward the
“lock” symbol on the turbine.
The tab below the trigger will lock the two pieces into
place.
NEVER point the spray gun at any part of
the body.
1
2
A
B
3
4
5
