SPRAYER CONTROLS

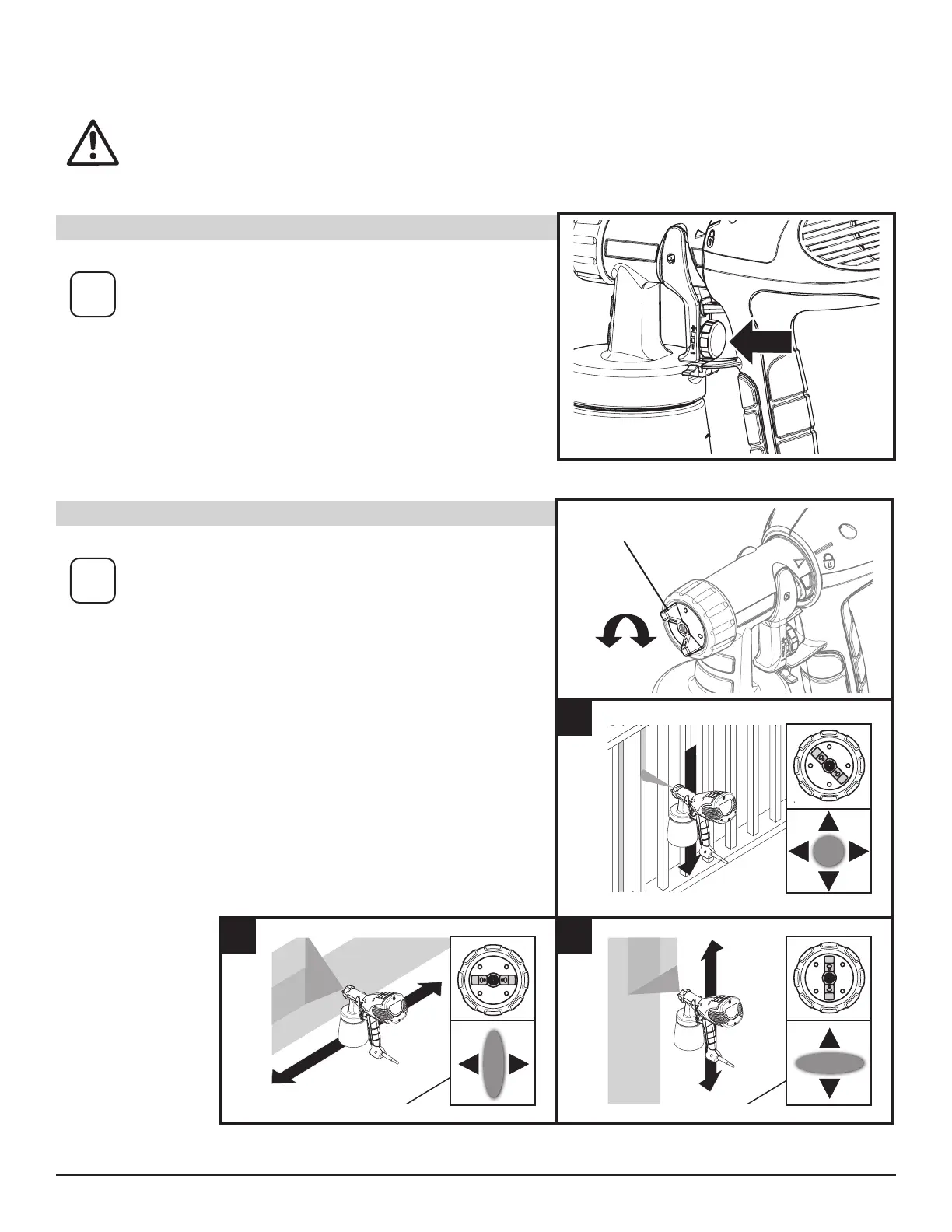

MATERIAL FLOW CONTROL
AIR CAP / PATTERN ADJUSTMENT
NEVER trigger the gun while adjusting the
ears on the air cap. NEVER point the spray
gun at any part of the body.
i
The material flow control will be factory-set
at its lowest setting out of the box. Adjust
as needed.
• Turn the knob out (counterclockwise) for less flow. Generally,
low material flow is needed for spraying smaller surface
areas, such as corners, lattice, or spindles.
• Turn the knob in (clockwise) for increased flow. Generally,
high material flow is needed for spraying large surface areas,
such as fences and decks.
i
Adjust the spray pattern by turning the air
cap ears.
The air cap position will determine the
movement direction of the spray gun.
1. Round pattern:
Use up and down, or side to side spraying motion,
depending upon the object being sprayed.
2. Vertical pattern:
Use side-to-side motion during spraying.
3. Horizontal pattern:
Use up and down motion during spraying.
AIR CAP EARS
1
=
=
=
=
=
=
2
=
=
=
=
=
=
3
=
=
=
=
=
=
