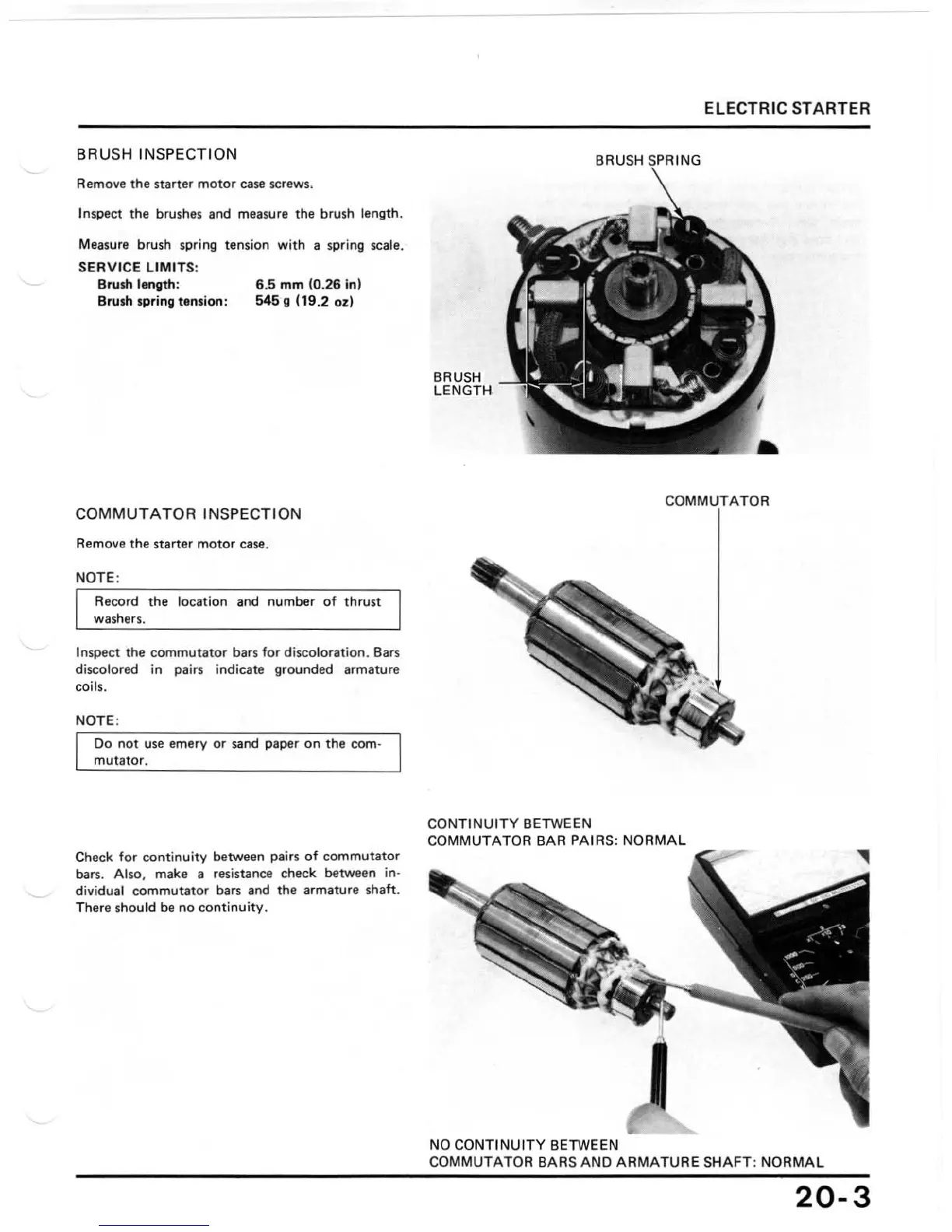

BRUSH IN SPECTION
Remove the starter motor case screws.
In spect the brushes and measure the brush length,
Measure brush spring tension with a spring scale.
SERVICE LIMITS:
Brum length:
Brush spring tension:
6.5 mm (0.26 i n)
545 9 /19.2 oz)
COMMUTATOR INSPECTION
Remo ve the starter motor case.
NOTE :
Record the location and number of thrust
washers.
Inspect the commutator bars for discoloration. Bars
discolored in pairs indicate grounded armature
coil s.
NOTE:
Do not use emery or sand paper on the com·
mutator .
Check for continu ity between pairs of com mutator
bars. Also, make a resistance check between in -
dividual commutator bars and the armature shaft.
There should be no continuity .
BRUSH
LENGTH.
BRUSH S P'''NG
CONTINUITY BETWEEN
COMMUTATOR BAR PAIRS: NORMAL
NO CONTIN UI TY BETW EEN
ELECTRIC STARTER
COMMUTATOR BARS AND ARMATURE SHAFT: NORMAL
20-3

Honda 1984 Shadow VT700C Specifications

General

Ignition	CDI
Starting	Electric
Transmission	6-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Front Brake	Single disc
Rear Brake	Drum
Front Tire	100/90-19
Rear Tire	140/90-15
Rear Suspension	Dual shocks
Fuel Capacity	13 liters
Fuel System	2x Keihin carburetors
