Honda 2012 Odyssey Body Repair Manual

14/02/18 12:54:32
01) 11-14 Odyssey MMC SM-A 14 61TK830Z enu

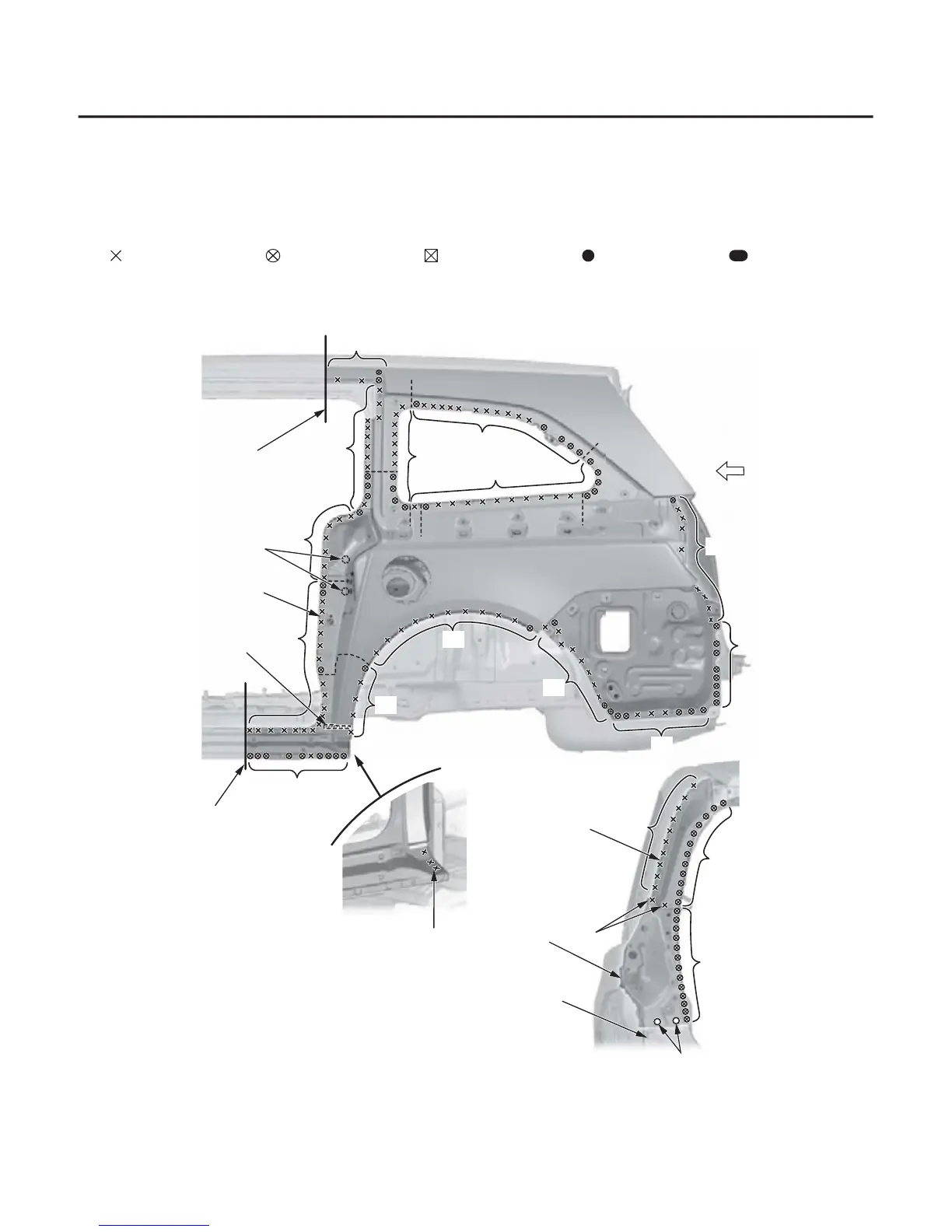

Mass production body welding positions and numbers (Outer panel and rear gutter)
NOTE:
●
Welding symbols
: 2-Plate spot welding; : 3-Plate spot welding; : 4-Plate spot welding; : MAG plug welding; : MAG welding
L=Welding length unit: mm (in)
●
( ): The number of welds
Front upper edge positions
of the rear side outer panel
repair part
(11)
(11)
(14)
(2)
REAR WHEEL ARCH
OUTER SEPARATOR
(4)
(8)
REAR PILLAR
GUTTER
(9)
[Z]
(16)
(10)
(13)
(11)
Front lower edge positions
of the rear side outer panel
repair part
[VIEW: Z]
OUTER PANEL
(10)
(21)
REAR
COMBINATION
SIDE ADAPTER
(8)
(17)
(5)
(7)
(3)
REAR FLOOR
CROSSMEMBER
(12)
M
MOUNTING BOLTS
8 x 1.25 mm
MOUNTING BOLTS
8 x 1.25 mm
MOUNTING BOLTS
6 x 1.0 mm
(cont'd)
Rear Side Outer Panel
Removal
3-45
4481_4.0_enu_10319509_4.0
