Incase of Activa (Standard)
Rear Wheel Removal
1. Place the scooter on its center stand.
2. Remove the rear wheel nut by applying
rear brake
3. Remove the rear wheel.
BRAKE SHOE WEAR
Refer to the Safety Precautions on page 44.
The front and rear brakes are equipped with
brake wear indicators.

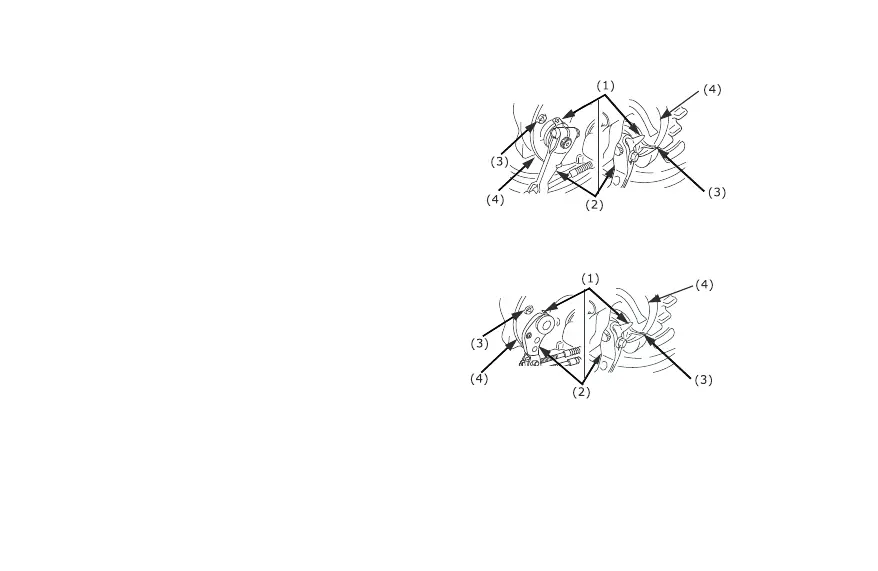

When the brake is applied, an arrow mark
(1) attached to the brake arm (2) moves
toward a reference mark (3) on the brake
panel (4). If the arrow aligns with the
reference mark on full application of the
brake, the brake shoes must be replaced.
See your Honda dealer for this service.
When the brake service is necessary, see
your Honda dealer. Use only genuine Honda
parts or its equivalent.
Incase of Activa (Deluxe)
(1) Arrow mark ¼,Sjks ekdZ½
(2) Brake arm ¼czsd vkeZ½
(3) Reference mark ¼jsQjsUl ekdZ½
(4) Brake panel ¼czsd iSuy½
Front
Rear
Front
Rear
