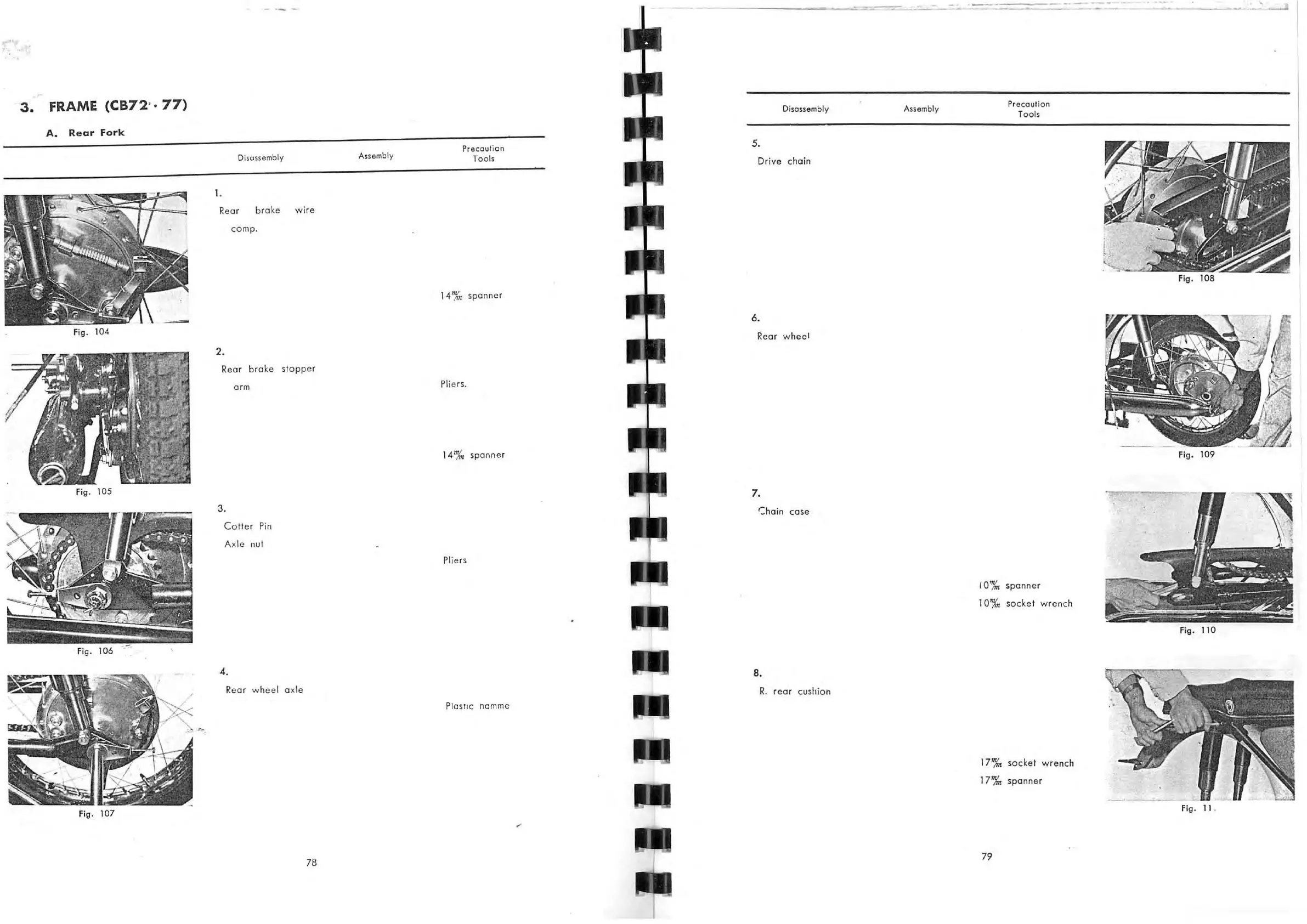

Honda C77 - Rear Fork (CB72;77) Disassembly and Assembly; A. Rear Fork; 3. Cotter Pin; 4. Rear wheel axle

.....
3. FRAME (C872 ' · 77)
A. Rear Fork
Disassembly
Assembly
1.
Rear brake wire
compo
Fig. 104
2.
Rear brake stopper
arm
3.
Coller Pin
Axle nul
Fig. 106
4.
Rear whe e l oxle
78
Precaution
Tools
14ry;'n sponner
Pliers.
14% spanner
Pliers
PlaSTIC nemme
___ ____ ___ -==-=-~_-_ -0._'
Disassembly Assembly
5.
Drive chain
6.
Rear wheel
7.
Chain case
8.
R. rear cushion
Preca ution
Tools
10% spanner
10 '% socket wrench
17~ socket wrench
17 '%, spanner
79
. ,
---- ---'
F;g. 108
F;g. 109
Fig. 11 .
