Drive Chain u Checking the Drive Chain Slider
73
Maintenance
❙

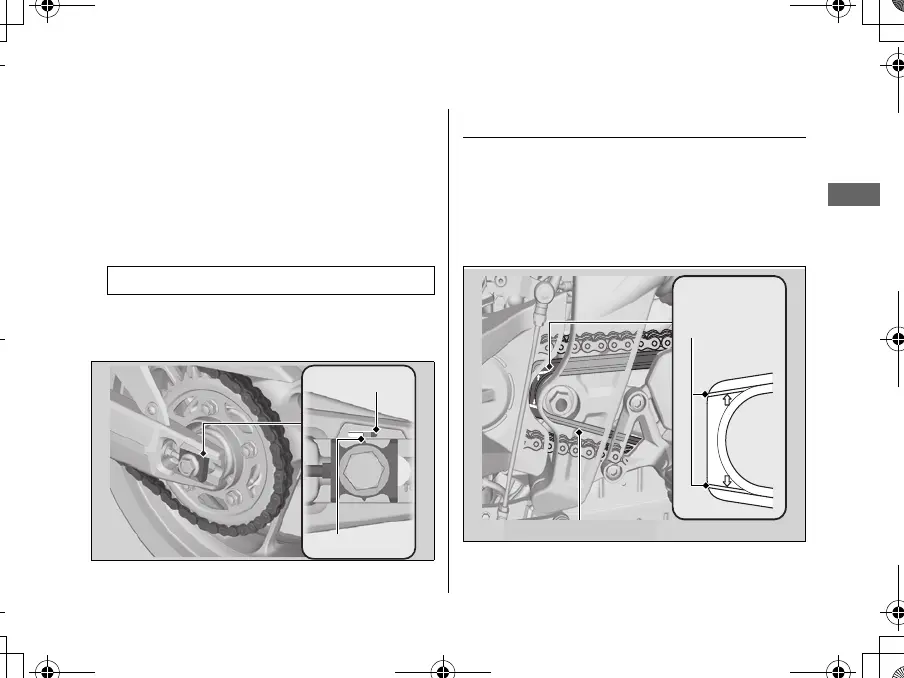

Checking the Drive Chain Wear
Check the chain wear label when adjusting
the drive chain. If the index mark on the
adjusting plate enters the red zone on the
label after the chain has been adjusted to the
proper slack, the chain is excessively worn
and must be replaced.
If necessary have the drive chain replaced by
your dealer.
Checking the Drive Chain Slider
Check the condition of the drive chain slider.
The drive chain slider need to be replaced if it
is worn to the wear limit line.
If necessary have the drive chain slider
replaced by your dealer.
Chain: DID 525V11 or RK 525KRW
Red zone
Index mark
Wear limit
line
Drive chain slider
