Honda CBR540F - Rear Wheel Removal Procedure

Tyre Puncture u Removing Wheels
92
Troubleshooting
❙
Rear Wheel
Removal
1. Support your motorcycle securely and
raise the rear wheel off the ground using
a maintenance stand or a hoist.
2. Loosen the rear axle nut, lock nuts and
turn the adjusting bolts so the rear wheel
can be moved all the way forward for
maximum drive chain slack.
3. Remove the drive chain from the rear
wheel sprocket by pushing the rear
wheel forward.
4. Remove the rear axle nut and washer.
5. Remove the rear axle shaft and adjusting
plates.

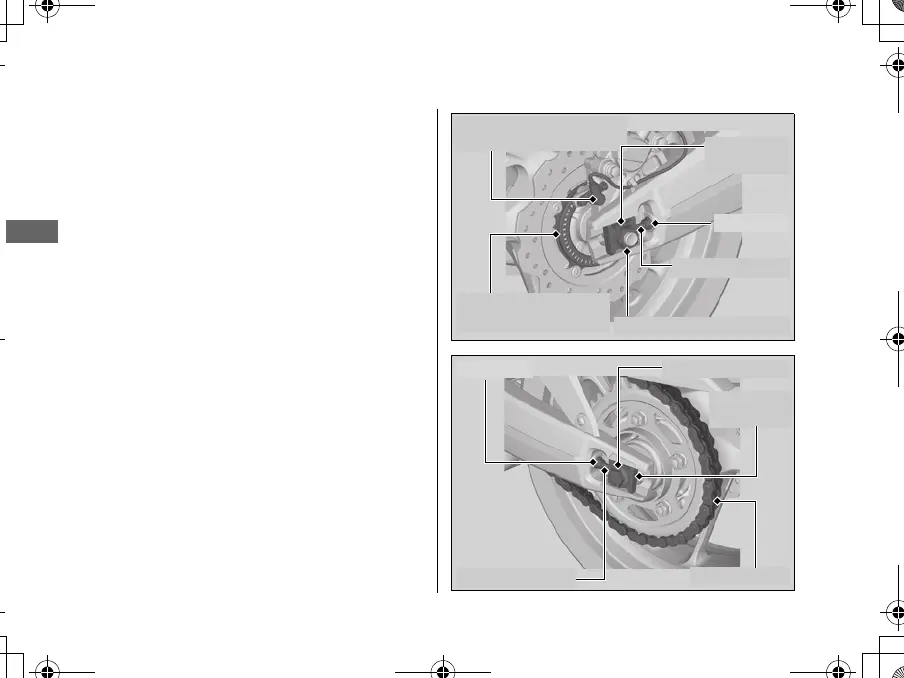

Lock nut
Adjusting bolt
Wheel speed sensor
(CBR650FA only)
Rear axle nut/washer
Pulser ring
(CBR650FA only)
Adjusting
plate
Lock nut
Adjusting bolt
Drive chain
Rear axle shaft
Adjusting
plate
