Honda CBR540F - Removing Wheels (Continued); Rear Wheel Installation Procedure

Tyre Puncture u Removing Wheels
94
Troubleshooting
2. Make sure that the slot on the brake
caliper bracket is positioned in the lug on
the swingarm.
3. Adjust the drive chain. 2 P. 71
4. Tighten the rear axle nut.
5. Hold the adjusting bolts and tighten the
lock nuts.
6. After installing the wheel, apply the brake
pedal several times, then check if the
wheel rotates freely. Recheck the wheel if
the brake drags or if the wheel does not
rotate freely.
If a torque wrench was not used for
installation, see your dealer as soon as
possible to verify proper assembly.
Improper assembly may lead to loss of
braking capacity.

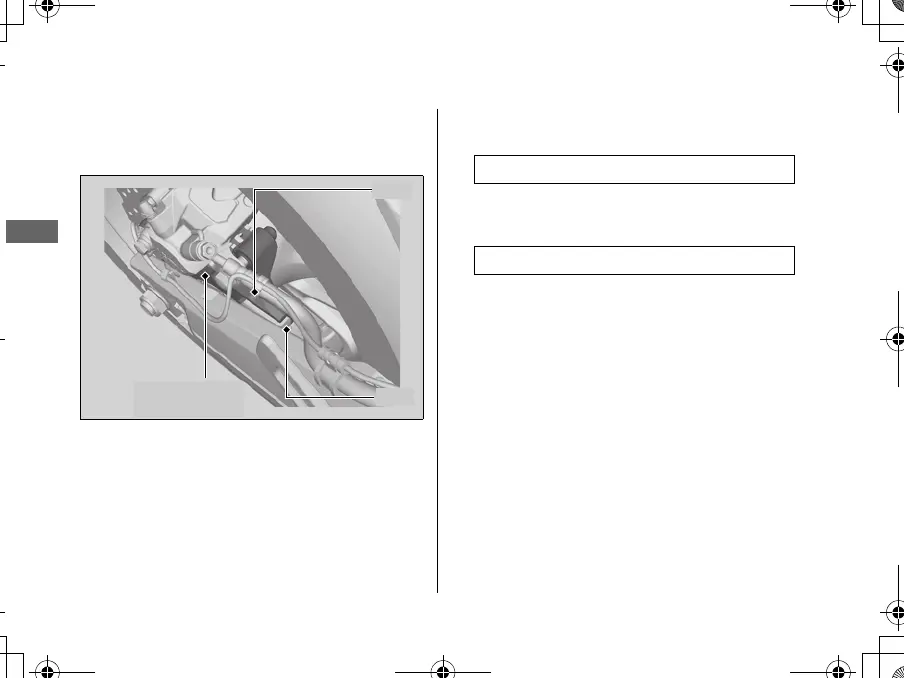

Slot
Lug
Brake caliper
bracket
Torque: 98 N·m (10.0 kgf·m, 72 lbf·ft).
Torque: 27 N·m (2.8 kgf·m, 20 lbf·ft).
