Tyre Puncture u Removing Wheels
90
Troubleshooting
Installation
1. Attach the side collars to the wheel.
2. On the left side, place the wheel
between the fork legs and insert the
lightly greased front axle shaft to the
end, through the left fork leg and wheel
hub.
3. Align the end of the front axle shaft with
the surface of the fork leg.
4. Tighten the left axle pinch bolt to hold
the axle.
5. Tighten the axle bolt.
6. Loosen the left axle pinch bolt.
7. Tighten the right axle pinch bolt.
8.
Secure the wheel speed sensor wire with
the clamp.

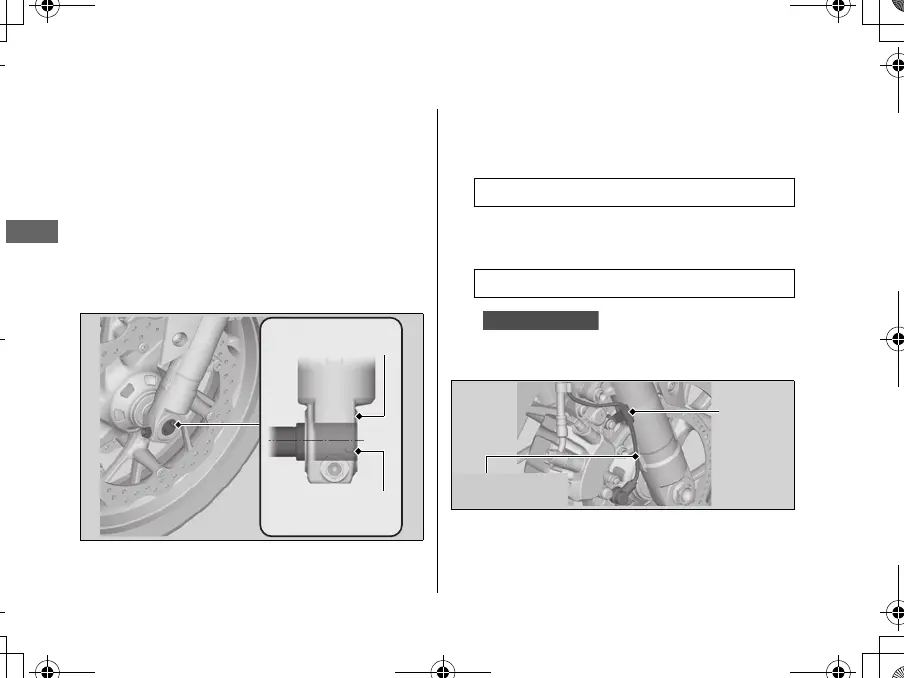

Surface of
fork leg
End of front
axle shaft
Torque: 59 N·m (6.0 kgf·m, 44 lbf·ft).
Torque: 22 N·m (2.2 kgf·m, 16 lbf·ft).
CBR650FA only
Wheel speed
sensor wire
Clamp
