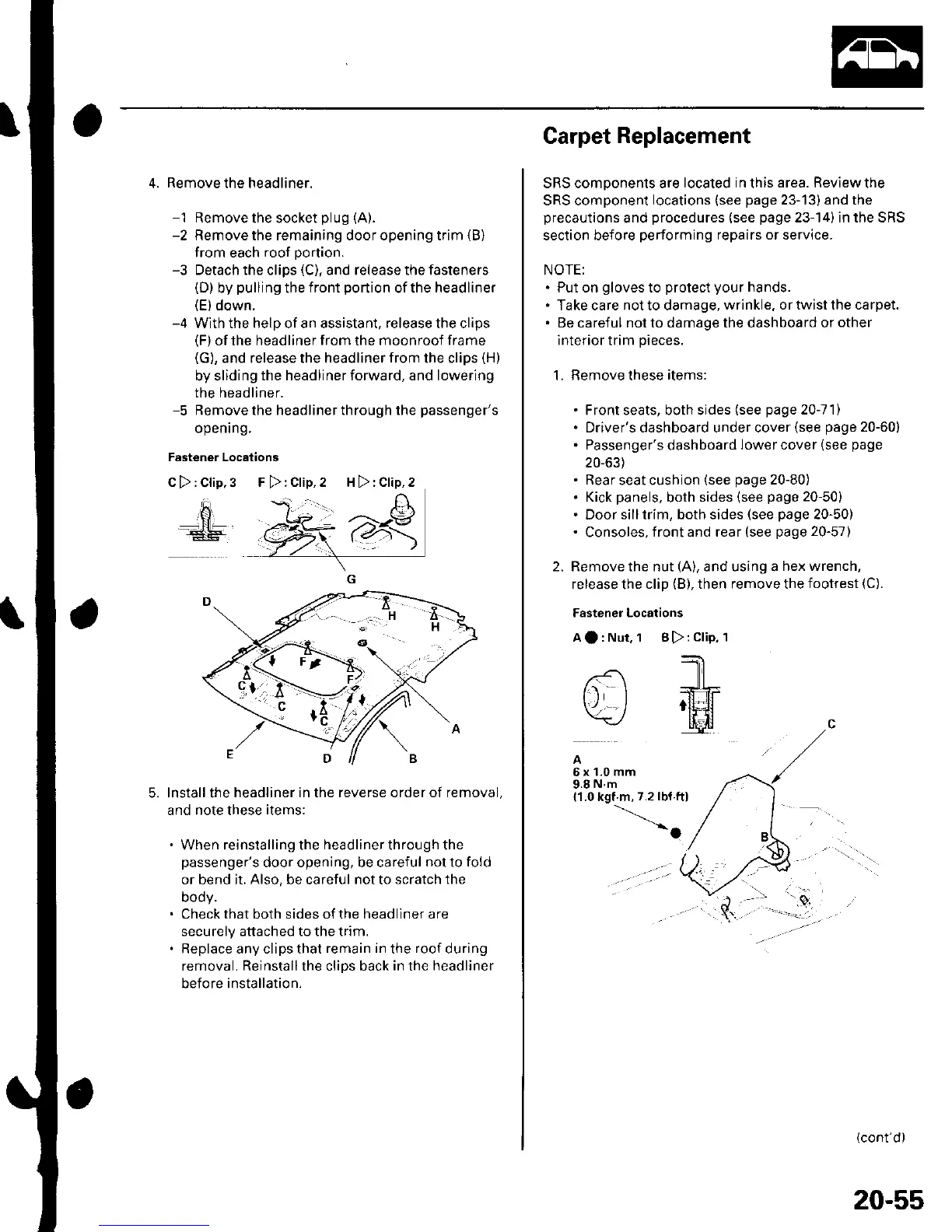

4.
Remove
the headliner.
-1
Remove
the socket
plug
(A).
-2
Remove the remaining door opening trim
{B}
from each
roof
portion.
-3
Detach the clips
(C),
and release the fasteners
(D)
by
pulling
the
front
portion
ofthe
headliner
(E)
down.
-4
With the help of an assislant, release the clips
(F)
of the headliner
from
the moonroof
frame
(G),
and release the headliner
from
the clips
(H)
by sliding
the headliner forward, and lowering
the headliner.
-5
Remove
the
headliner through the
passenger's
opening.
Fastener Locations
C>:Clip,3
a
o
5. Install the
headliner in
the
reverse order of removal,
and note these
items:
.
When reinstalling the
headliner
through the
passenger's
door opening, be careful
not
to
fold
or bend it,
Also,
be careful
not
to
scratch the
DOOy.
.
Check that both sides of the headliner are
securely attached to the trim.
.
Replace any clips that
remain in
the
roof
during
removal. Reinstallthe clips back
in
the
headliner
before installation.
F>:Clip,2 H>:Clip,2
Carpet
Replacement
SRS components are
located in
this
area. Reviewthe
SRS component
locations
(see
page
23-13) and the
precautions
and
procedures
(see
page
23-14) in the SRS
section before
performing
repairs or service.
NOTE:
.
Put on
gloves
to
protect your
hands.
.
Take care not to damage,
wrinkle. or twist the carpet.
.
Be careful not to damage the dashboard or
other
interior
trim
pieces.
1. Remove these
items:
.
Front seats, both sides
(see
page
20-111
.
Driver's dashboard under cover
(see
page
20-60)
.
Passenger's
dashboard
Iower cover
(see
page
20-631
.
Rear
seat cushion
(see
page
20-80)
.
Kick
panels,
both
sides
(see
page
20-50)
.
Door silltrim,
both sides
(see
page
20-50)
.
Consoles,
front and rear
(see
page
20-57)
2. Remove the nut
(A),
and using a
hex wrench,
release
the
clip
(B),
then remove the
footrest
(C).
Fastener Locations
Aa:Nut,1 B):Clip,'l
--'1
I
--\
-JrL
tj I
;tt4f
=\-/
l[il
A
6x1.0mm
9.8Nm
11.0
kgf m,7.2
lbf.ft)
-o
(cont'd)
20-55
