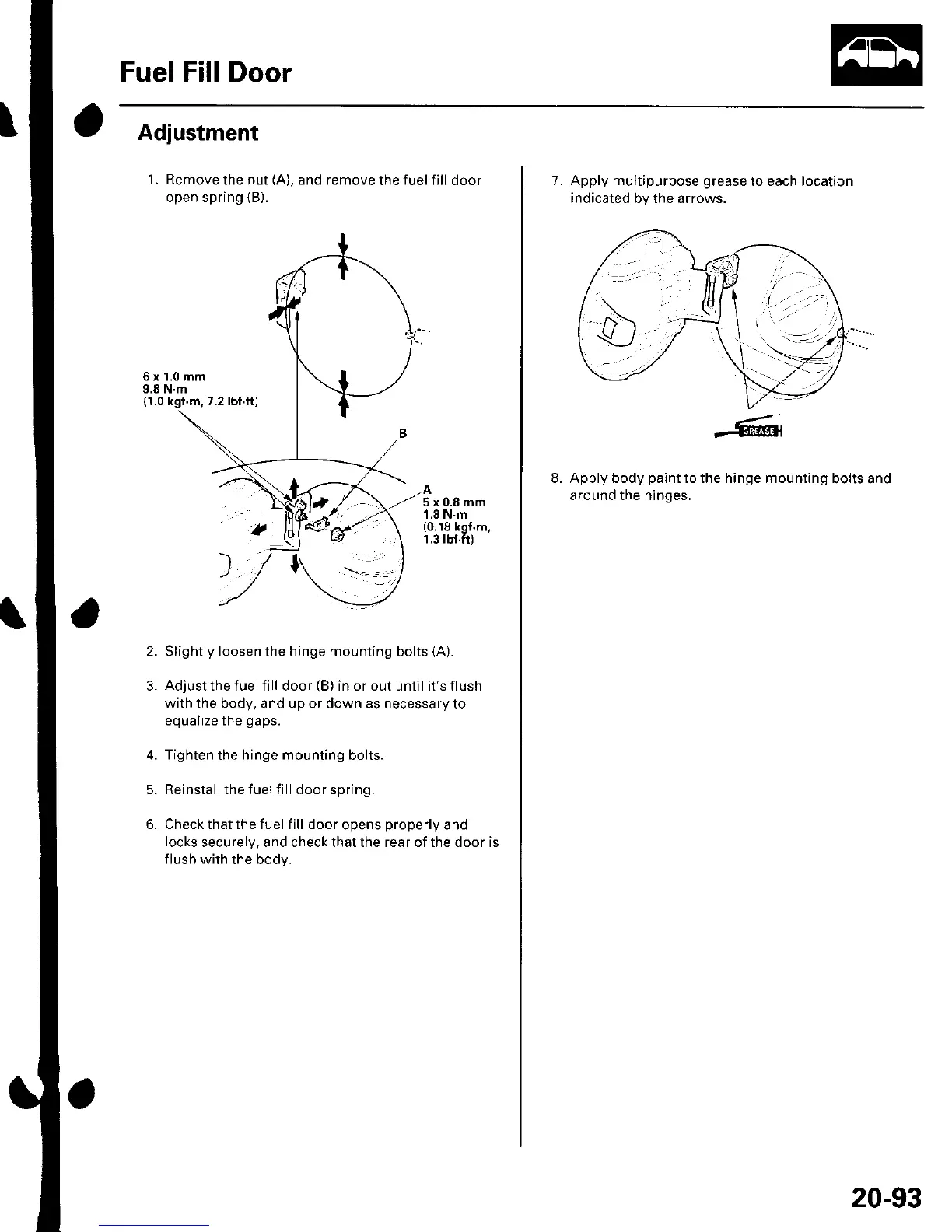

Fuel Fill
Door
Adjustment
1. Remove
the nut
(A),
and remove
the
fuel
fill door
open spring
{B).
Slightly loosen the hinge mounting
bolts
(A).
Adjust
the fuel fill door
(B)
in or out until it's flush
with the body, and up or down as necessary
to
a^rr.li7a tha n.nc
Tighten
the
hinge mounting
bolts.
Reinstallthe fuel fill door spring.
Check that the fuel f ill door
opens
properly
and
locks
securely, and check that the rear of the door is
flush with
the body.
5x0.8mm
1.8Nm
(0.18
kgf.m,
1.3 rbf.ft)
2.
3.
5.
6.
>t=-
r'
7. Apply multipurpose
grease
to each location
indicated
by the arrows.
8. Apply body
paint
to the hinge mounting
bolts and
around the hinges,
20-93
To Next Page
