Honda GL1100 1980 User Manual

-

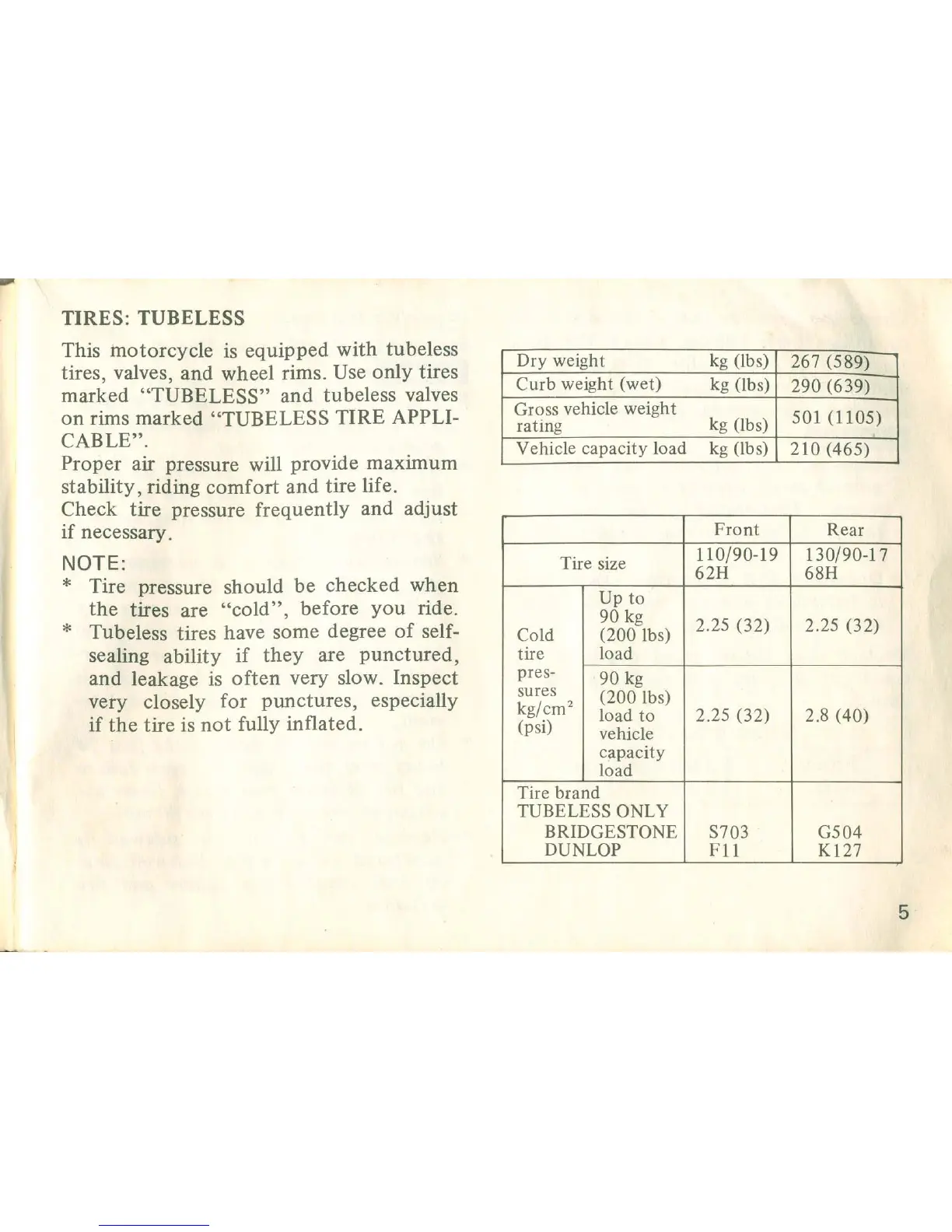

TIRES: TUBELESS
This motorcycle is equipped
with tubeless
tires, valves, and wheel rims. Use only tires
marked
"TUBELESS" and tubeless valves
on rims marked "TUBELESS TIRE APPLI-
CABLE".
Proper air pressure will provide maximum
stability, riding
comfort and tire life.
Check tire pressure frequently and adjust
if necessary.
NOTE:
* Tire pressure should be checked when
the tires are "cold", before you ride.
* Tubeless tires have some degree of self-
sealing ability if
they are punctured,
and leakage is often very slow. Inspect
very closely for punctures, especially
if the tire is not fully inflated.
Dry weight kg (lbs)
267 (589)
Curb weight (wet) kg (lbs)
290 (639)
Gross vehicle weight
501 (1105)
rating
kg (lbs)
Vehicle capacity load
kg (lbs)
210 (465)
Front Rear
Tire size
110/90-19 130/90-17
62H
68H
Up
to
90 kg
2.25 (32) 2.25 (32)
Cold (200 lbs)
tire load
pres-
90
kg
sures
(2001bs)
kg/cm
2
load to
2.25 (32)
2.8 (40)
(psi)
vehicle
capacity
load
Tire brand
TUBELESS ONLY
BRIDGESTONE S703
G504
DUNLOP F11
K127
5

Honda GL1100 1980 Specifications

General

Year	1980
Manufacturer	Honda
Model	GL1100
Category	Touring
Compression Ratio	9.2:1
Ignition	Transistorized
Starting System	Electric
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	3.50-19
Rear Tire	4.50-17
Engine Type	Four-stroke, liquid-cooled, horizontally opposed four-cylinder
Rear Suspension	Air-assisted shocks
Dry Weight	272 kg (600 pounds)
Fuel Capacity	19 liters (5.0 gallons)
Seat Height	790 mm (31.1 inches)
