Honda GX390T2 User Manual

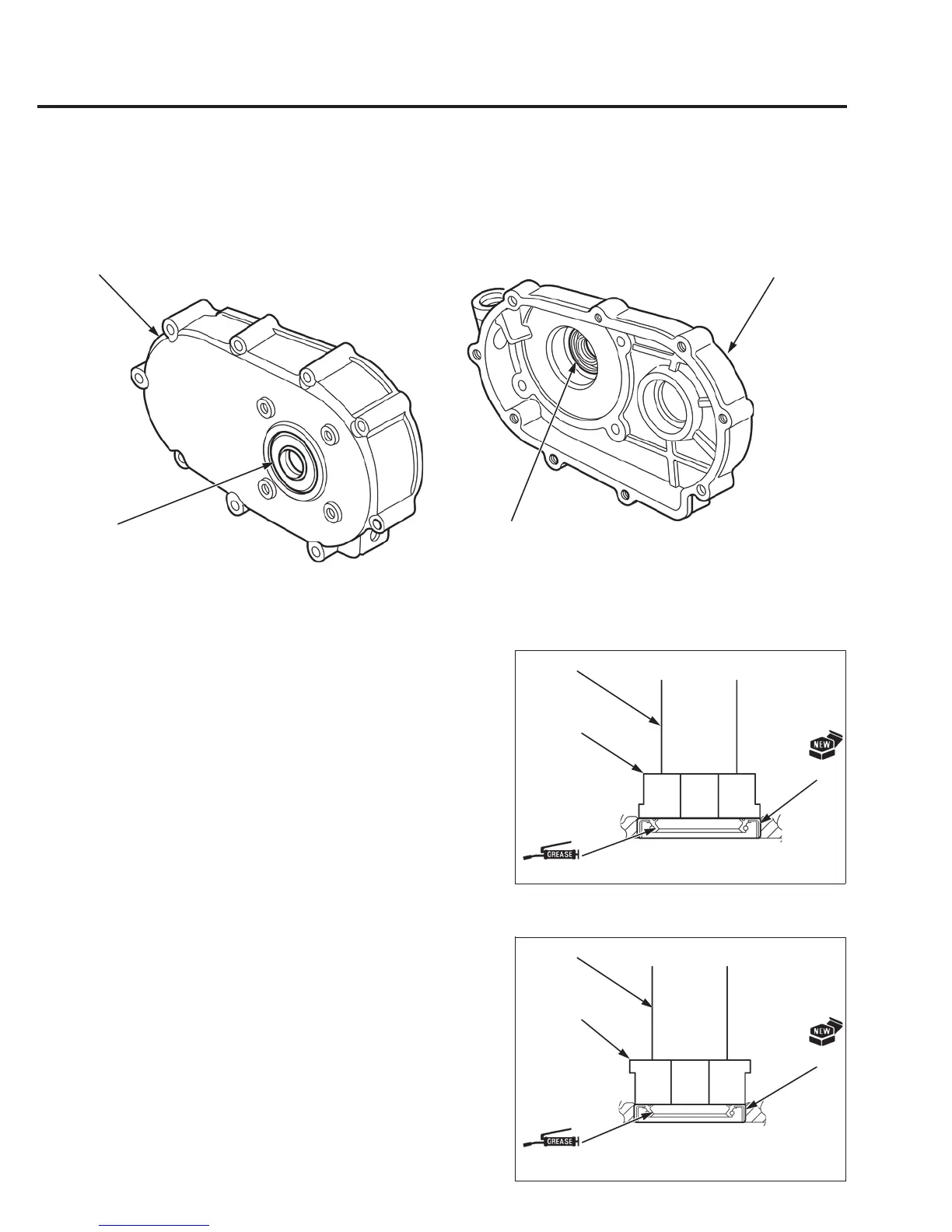

CRANKCASE
GX240/GX270 CRANKSHAFT/P.T.O. SHAFT OIL SEAL
REPLACEMENT (1/2 REDUCTION WITH CLUTCH)
LOCATION
P.T.O. SHAFT OIL SEAL
(30 x 50 x 7 mm)
Remove the oil seal from the reduction cover.
Apply grease to the lip of a new oil seal (1).
Drive the oil seal in the position as shown using the
special tools.
CRANKSHAFT OIL SEAL
(30 x 46 x 8 mm)
Remove the oil seal from the reduction case.
Apply grease to the lip of a new oil seal (1).
Drive the oil seal in the position as shown using the
special tools.
P.T.O. SHAFT OIL SEAL
(30 x 50 x 7 mm)
CRANKSHAFT OIL SEAL
(30 x 46 x 8 mm)
REDUCTION COVER
REDUCTION CASE
TOOLS:
Attachment 45 x 50 mm (2) 07946-6920100
Driver 15 x 135 mm (3) 07749-0010000
(2)
(3)
(1)
OIL SEAL LIP
TOOLS:
Attachment 45 x 50 mm (2) 07946-6920100
Driver 15 x 135 mm (3) 07749-0010000
(2)
(3)
(1)
OIL SEAL LIP
gx240ut2_gx270ut2_gx340ut2_gx390ut2

Honda GX390T2 Specifications

General

Compression Ratio	8.5:1
Oil Capacity	1.1 L
Ignition System	Transistorized magneto ignition
Starting System	Recoil Starter
Air Cleaner	Dual Element
Engine Type	4-stroke, single cylinder, OHV, air-cooled
Displacement	389 cm³
Bore x Stroke	88 mm x 64 mm
Fuel Tank Capacity	6.1 L
