GOVERNOR SYSTEM
7-9

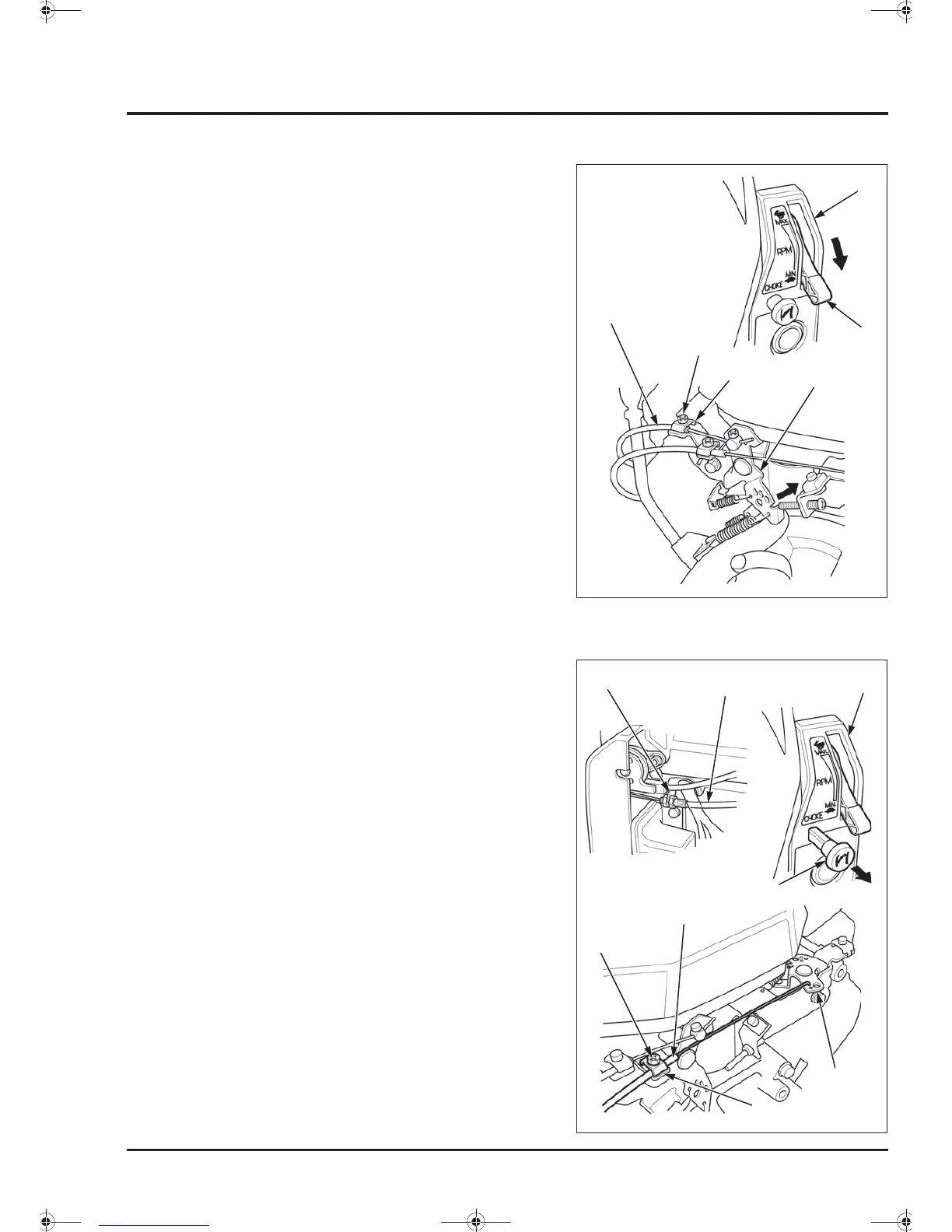

THROTTLE CABLE INSTALLATION
Connect the throttle cable (1) to the throttle lever (2) of
the control.
Move the throttle lever (3) on the control box (4) to
throttle off position.
Pull the throttle cable and be sure not to slack it.
Set the throttle cable to the cable holder (5) of the
control as shown.
Tighten the recessed bolt (6) on the cable holder to
secure the throttle cable.
Move the throttle lever of the control box to throttle off
position and be sure there is free play of the throttle
position.
Move the throttle lever of the control box to full throttle
position and be sure the throttle lever of the control
touches the maximum speed adjusting screw.
Secure the choke cable to the oil level pipe with the wire
band.
CHOKE CABLE INSTALLATION
Install the choke cable (1) on the control box bracket
(2).
Pull the choke knob (3) of the control box (4) to the fully
closed position.
Hook the choke cable to the choke lever (5) of the
control.
Pull the choke cable until the choke lever of the control
touches with the control to fully close the carburetor
choke valve.
Set the choke cable to the cable holder (6) of the control
and be sure not to slack it.
Tighten the recessed bolt (7) on the cable holder to
secure the choke cable.
Push the choke knob of the control box fully and be
sure the choke lever of the control returns to the original
position.
Pull the choke knob of the control box until it clicks and
be sure the choke lever of the control touches the
control base.
Secure the choke cable to the oil level pipe with the wire
band.
(4)
(3)
(1)
Align the outer
casing end with the
edge of the cable
holder.
(2)
(6)
(5)
(1)
(2)
(3)
(5)
(7)
(6)
(4)
(1)
