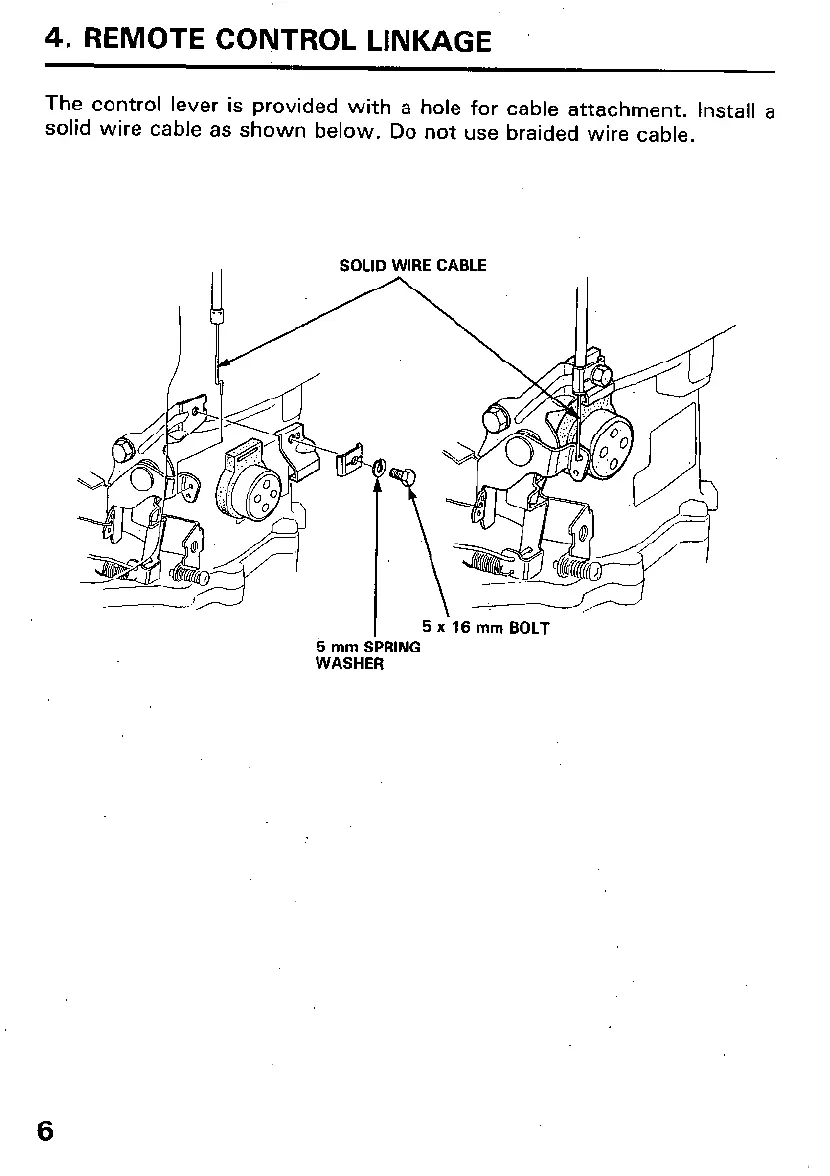

4. REMOTE CONTROL LINKAGE
The control lever is provided with a hole for cable attachment. Install a
solid wire cable as shown below. Do not use braided wire cable.
SOLID WIRE CABLE
5xl6mmBOLT
5 mm SPRING
WASHER
6
