5.2 Engine installation
a. HRD535K1 ~ 8106639 , HRD536K1 ~ 8107479
Install the engine in the reverse order of removal.
NOTE:
Connect the drive shaft with the pin hole aligned as shown (Q type and HRA536
only).
Install the drive pulley by aligning the key groove with the woodruff key on the crankshaft
(except Q type and HRA536).
Connect the throttle cable to the throttle arm, then secure the cable holder with the screw.
Adjust the throttle cable after engine installation (ch. 3.4).

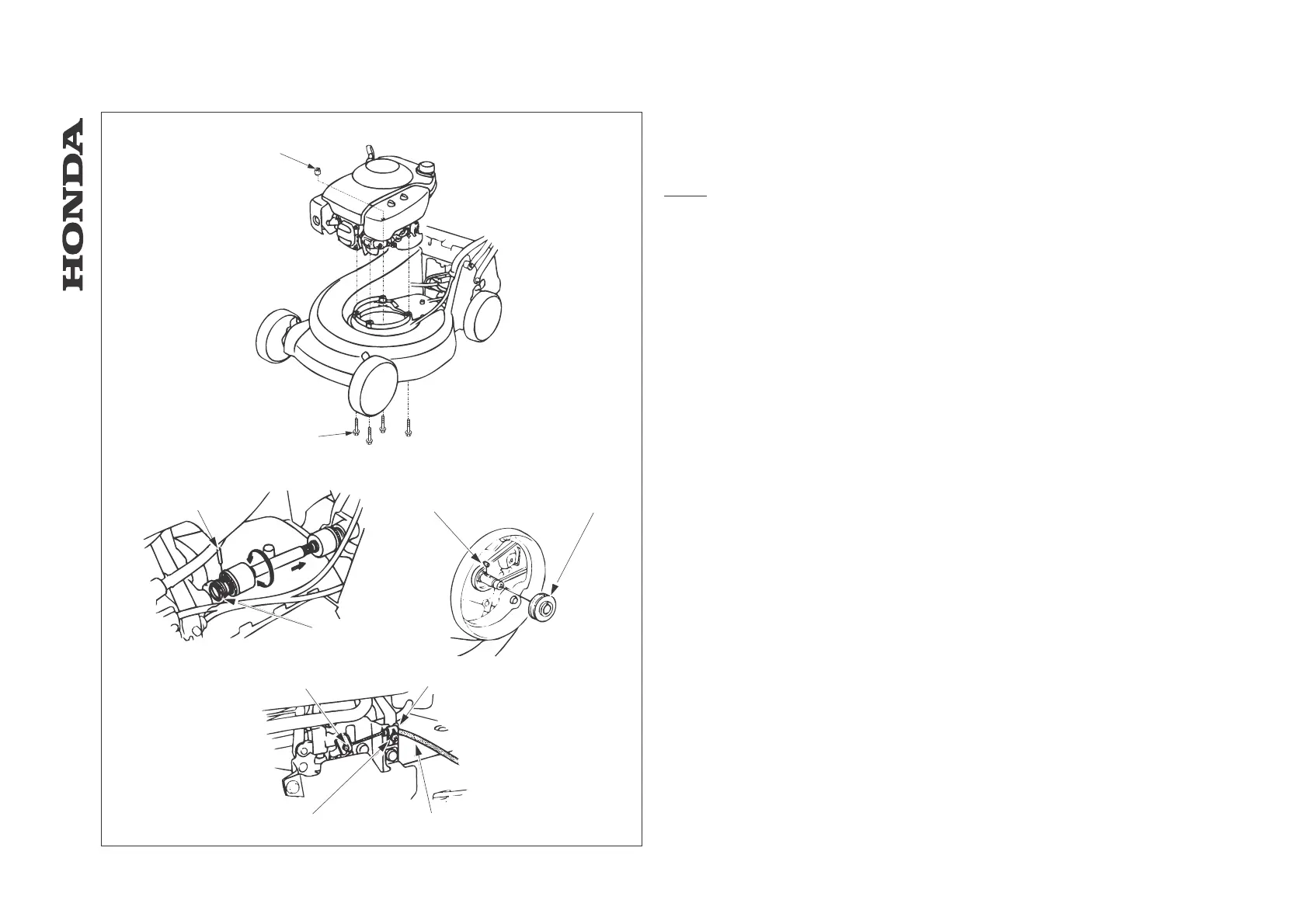

[1] FLANGE NUT, 8 mm (HRD536/K1 only)
[2] ENGINE MOUNTING SCREW, 8 mm (4)
[3] JOINT PIN
[4] PIN CLIP
[5] DRIVE PULLEY
[6] CABLE HOLDER
[7] THROTTLE CABLE
[8] SCREW
[9] THROTTLE ARM
[10] WOODRUFF KEY
-43-
HRA536 - HRD535 - HRD536
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[10]
[9]
[
8
]
- ENGINE REMOVAL / INSTALLATION
