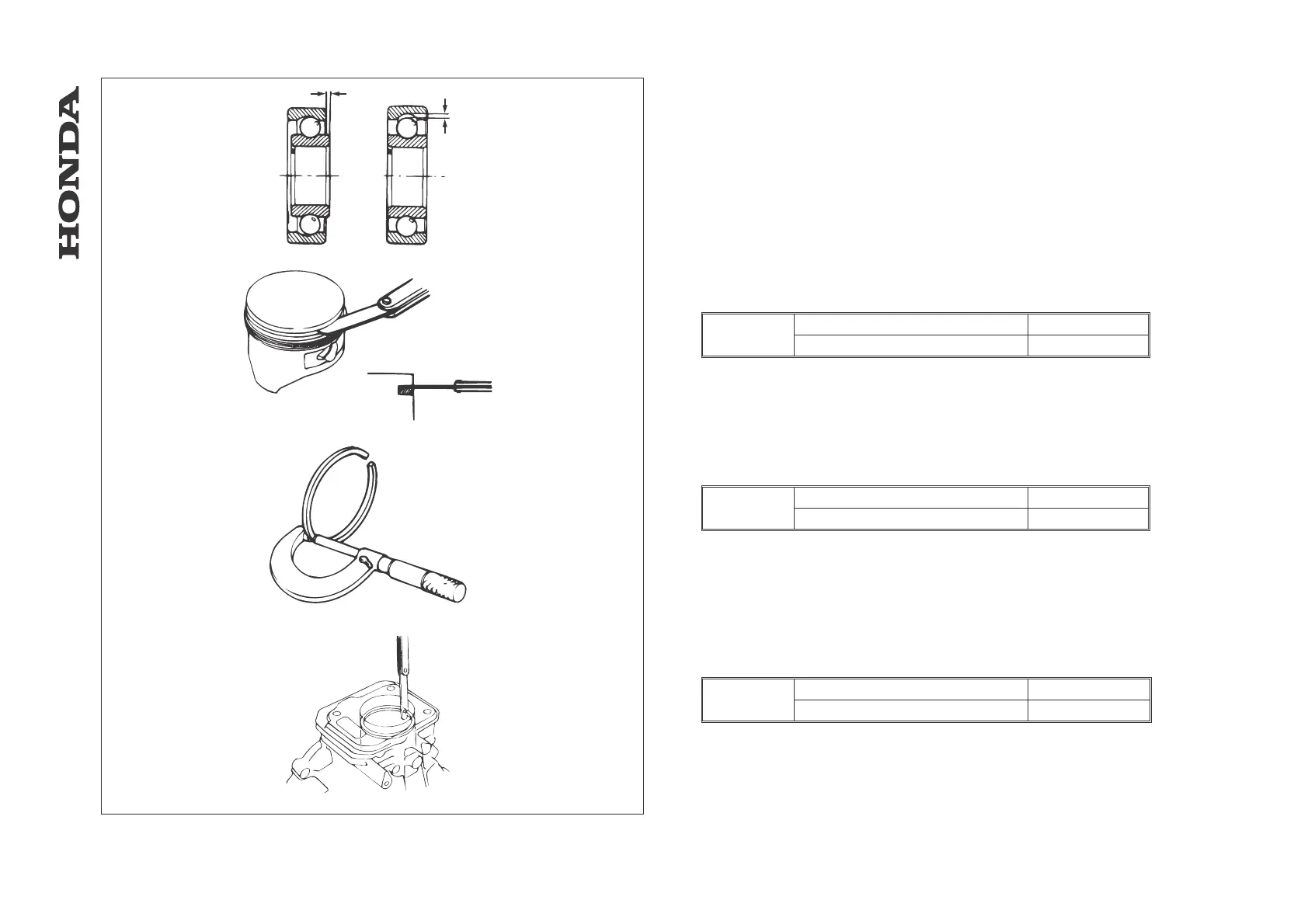

12.2 Inspection
BALL BEARING
Clean the bearing in solvent and dry it.
Spin the bearing by hand and check for clearance.
Replace the bearing if is noisy of has excessive clearance.
PISTON RING SIDE CLEARANCE
Measure the piston ring side clearance.
Service limit
Top / Second 0.15 mm
Oil (HRA536 - HRD536/K1/K2 only) 0.15 mm
PISTON RING WIDTH
Measure the piston ring thickness.
Service limit
Top / Second 1.37 mm
Oil (HRA536 - HRD536/K1/K2 only) 2.37 mm
PISTON RING END GAP
Use the piston top to position the piston rings so it will not be cocked in the cylinder bore.
Measure the piston ring end gap.
Service limit
Top / Second 1.0 mm
Oil (HRA536 - HRD536/K1/K2 only) 1.0 mm
-78-
HRA536 - HRD535 - HRD536
- OIL PAN / DRIVE SHAFT / GOVERNOR
