Honda HS720A - Chute Guide Handle (AM type); Check;Adjustment; Remote Chute Guide Control (A, AS type); Remote Chute Turn Control (A, AS type)

8

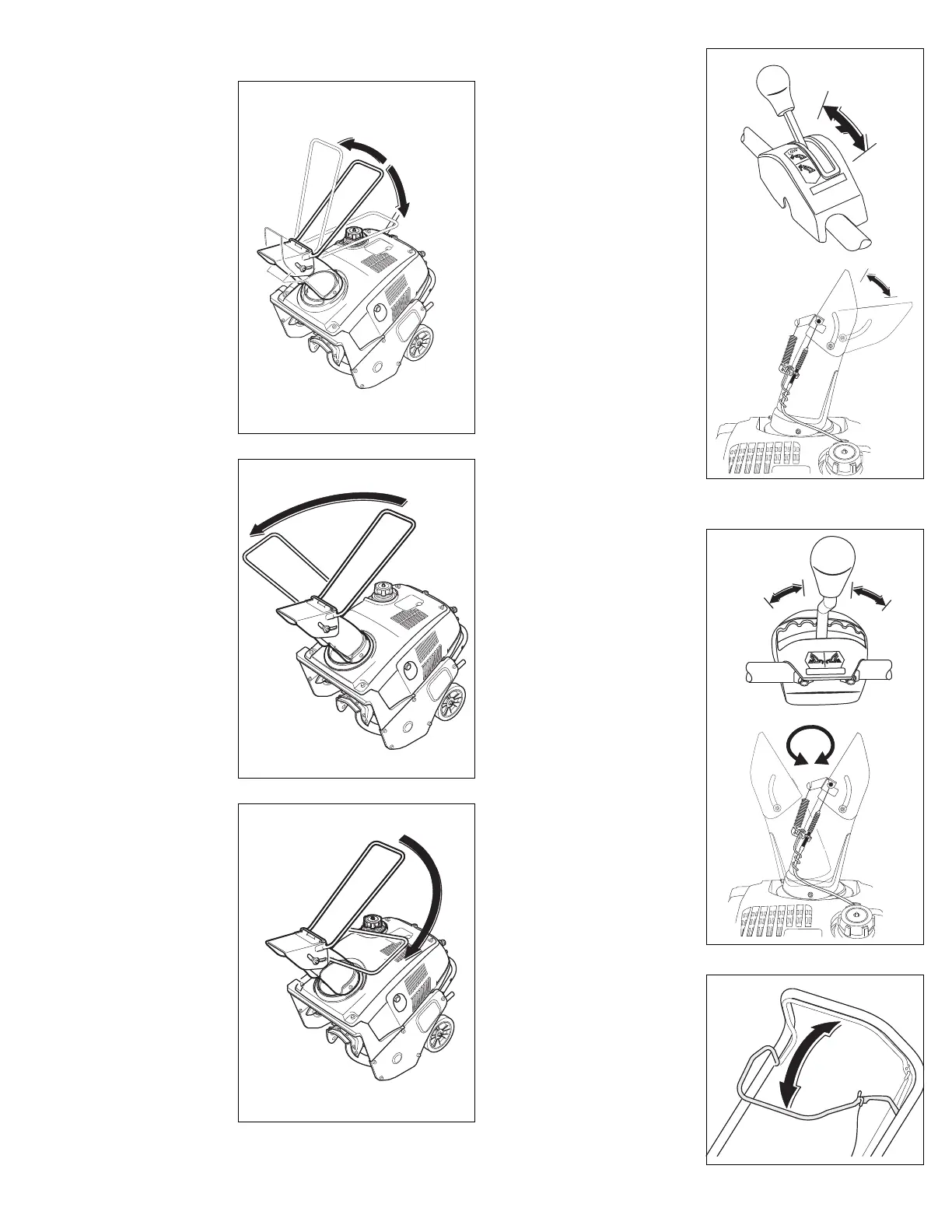

Chute Guide Handle (AM type)
Use this control to guide the snow discharge angle and direction.
Move guide handle UP or
DOWN to change the
distance of snow discharge.
Move guide handle RIGHT
to direct snow discharge to
the left.
Move guide handle LEFT
to direct snow discharge to
the right.
Remote Chute Guide Control
(A, AS type)
The remote chute guide control
moves the discharge chute UP
or DOWN to change the
distance of snow discharge.
FORWARD – Low and near
REARWARD – High and far
To move the lever, push left
slightly out of the detent and
then forward or rearward.
Remote Chute Turn Control
(A, AS type)
The remote turn control moves
the discharge chute LEFT or
RIGHT to change the direction of
snow discharge.
LEFT – Discharge left
RIGHT – Discharge right
To move the lever, pull back
slightly out of the detent and
then left or right.
Auger Clutch Lever
When this lever is engaged, the
snow thrower auger paddles
begin to spin and the snow
thrower may move forward.
Engaging the auger clutch lever
on cleared ground may cause
the snow thrower to move
forward suddenly.
HIGH
AND
FAR
LOW AND NEAR
RIGHT
LEFT
CHUTE
HIGH
LOW AND
NEAR
HIGH
AND
FAR
CHUTE
LEFT
RIGHT
LEFT RIGHT
ENGAGE
RELEASE
