Honda HS970 - Chute guide lever function (ET, EW); Chute adjust switch operation (ETS, EWS)

15
Chute adjust switch
Chute guide lever

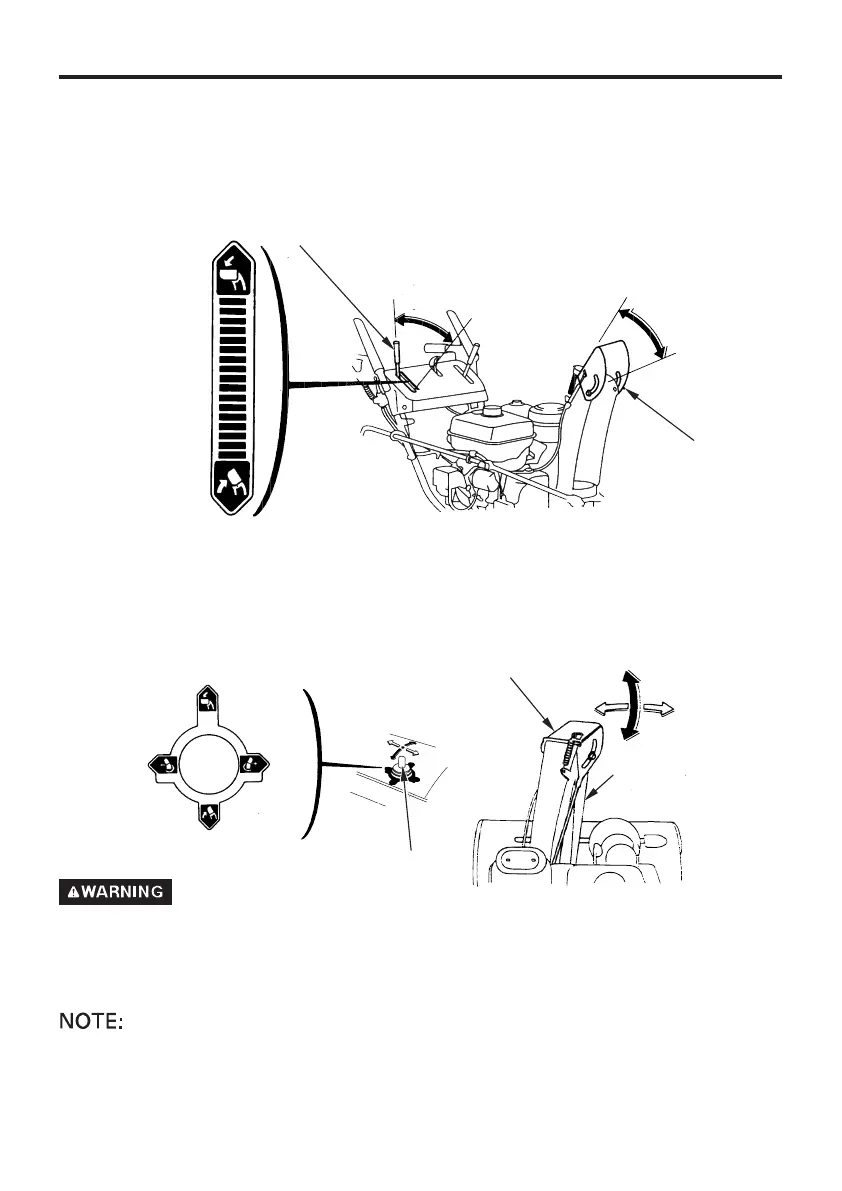

Adjust the snow discharge chute to avoid hitting the operator,
bystanders, windows, and other objects with ejected snow. Stay clear
of the snow chuter while the engine is running.
(ET, EW)
(ETS, EWS)
DOWN
CHUTE GUIDE
LEFT
UP
CHUTE ADJUST
SWITCH
HIGH AND FAR
LOW AND NEAR
····
LOW AND NEAR
HIGH AND FAR
HIGH AND FAR
LEFT
DOWN
RIGHT
RRIIGGHHTT
RIGHT
UP
LEFT
DO
WN
CHUTE GUIDE
UP
····
CHUTE GUIDE
LEVER
LOW AND
NEAR
SNOW DISCHARGE
CHUTE
This switch is used to change the snow discharge angle or direction.
The chute guide controls the snow discharge angle and direction.
Follow the steps in page if the discharge chute cannot be operated
electrically due to a low or dead battery.
····
····
