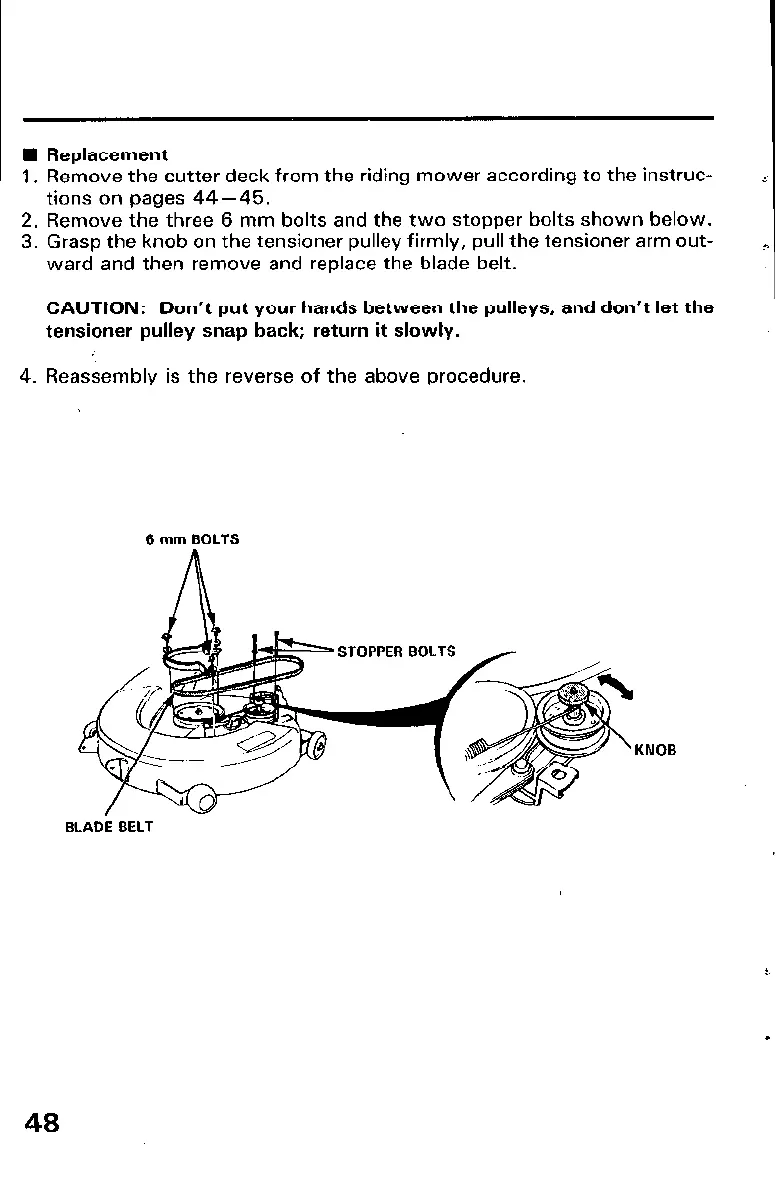

Replacement
1. Remove the cutter deck from the riding mower according to the instruc-
tions on pages 44-45.
2. Remove the three 6 mm bolts and the two stopper bolts shown below.
3. Grasp the knob on the tensioner pulley firmly, pull the tensioner arm out-
ward and then remove and replace the blade belt.
CAUTION:
Don’t put your hands between the pulleys, and don’t let the
tensioner pulley snap back; return it slowly.
4. Reassembly is the reverse of the above procedure.
6 mm BOLTS
STOPPER BOLT
KNOB
BLADE BELT
48
