Honda NSS300A Instructions For Use

80
2013.04.10 E
3
F-20

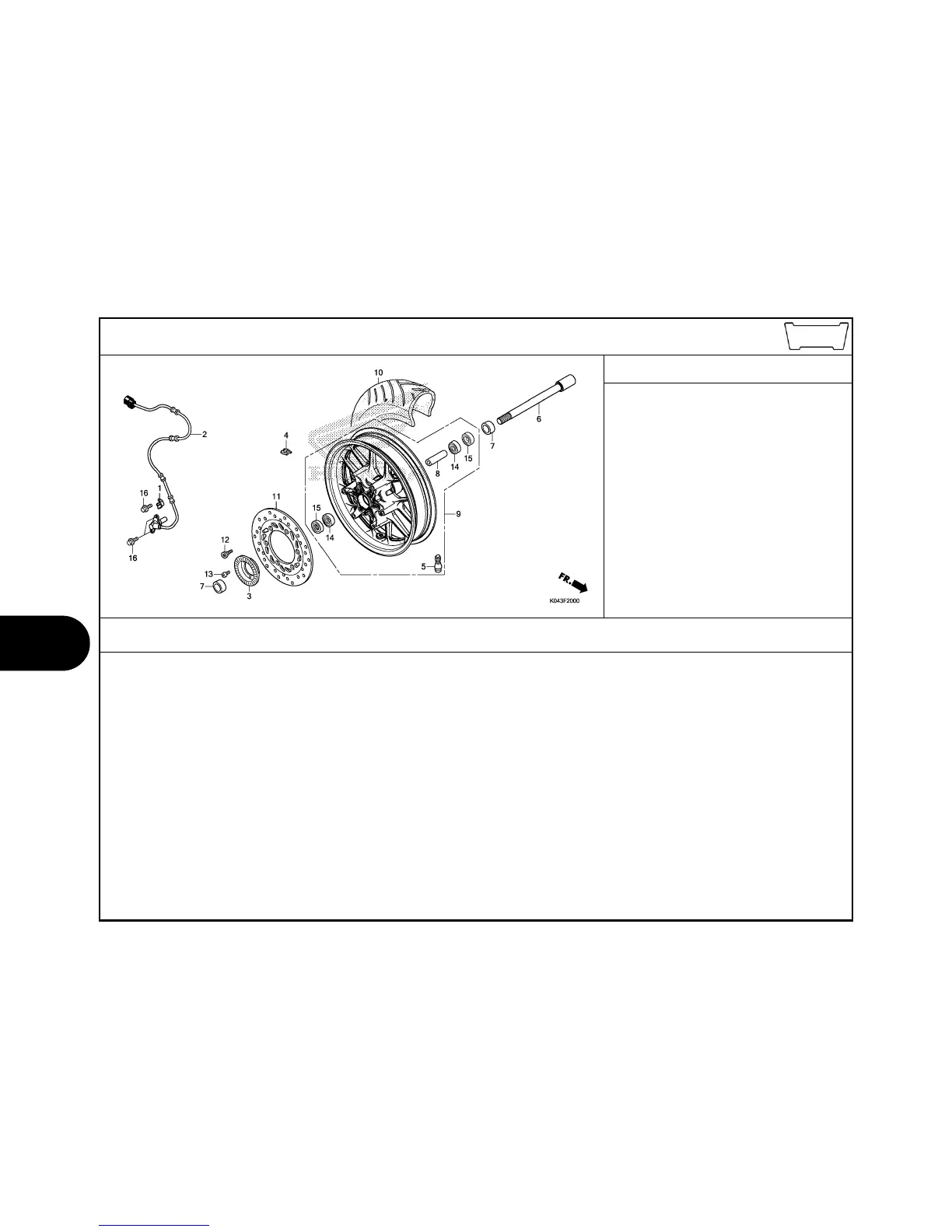

FRONT WHEEL
Ref.
No.
Part No. Description
Reqd. QTY
Parts catalogue code
NSS NSS
300 300A
D D
Serial No.
1 38515-KSV-J40 GUIDE, SENSOR CORD •••••••••• - 1
2 38520-K04-971 SENSOR, FR. WHEEL SPEED ••••• - 1
3 42515-MBT-D50 RING, RR. PULSER •••••••••••• - 1
4 42704-MER-D00 WEIGHT, BALANCE(10G) •••••••• N N
42705-MER-D00 WEIGHT, BALANCE(20G) •••••••• N N
42706-MER-D00 WEIGHT, BALANCE(30G) •••••••• N N
5 42753-KWF-901 VALVE, RIM(TRITON) •••••••••• 1 1
6 44301-K04-930 AXLE, FR. WHEEL ••••••••••••• 1 1
7 44311-K04-930 COLLAR, FR. WHEEL SIDE •••••• 2 2
8 44620-K04-930 COLLAR, FR. AXLE DISTANCE ••• 1 1
9 44650-K04-930ZA WHEEL SUB ASSY., FR.
*NH303M*
MAT AXIS GRAY METALLIC 1 -
44650-K04-970ZA *NH303M*
MAT AXIS GRAY METALLIC - 1
10 44711-K04-931 TIRE, FR.(DUN)
(120/70-14 M/C 55P) 1 1
11 45251-K04-931 DISK, FR. BRAKE(NHK PRECISION) 1 1
12 90105-KL8-741 BOLT, FR. DISK, 8X24(SAGA) •• 6 6
90105-MBB-000 BOLT, BRAKE DISK, 8X24 •••••• 6 6
13 90131-KPB-751 BOLT, TORX, 5X10 •••••••••••• - 3
14 91051-MGZ-J01 BEARING, RADIAL BALL, 6303UU
(FUJIKOSHI) 2 2
91054-MT6-831 BEARING, RADIAL BALL, 6303UU
(NSK) 2 2
15 91253-KZJ-901 OIL SEAL, 25X47X6.5(ARAI) ••• 2 2
16 96001-06014-07 BOLT, FLANGE, 6X14 •••••••••• - 3
Ref.
No.
L.O.N.
(Relative ref. Number)
Description
F.R.T.
2 617196 SENSOR, WHEEL SPEED :FRONT ••• 0.2
3 7101B0 RING, PULSER :FRONT •••••••••• 0.3
4 7101A6 WEIGHT, BALANCE :FRONT ••••••• 0.5
6 (15)
710151 AXLE, FRONT WHEEL •••••••••••• 0.2
9 7101D4 FRONT WHEEL •••••••••••••••••• 0.9
.INCLUDES: Balance
10 710139 FRONT TIRE(ONE) •••••••••••••• 0.8
.INCLUDES: Balance
11 711120 DISC, FRONT BRAKE •••••••••••• 0.3
14 710115 BEARING, FRONT WHEEL(ONE) •••• 0.4
710115G .Replace 1 bearing add ••••••• 0.1
G15
