Honda NT650 User Manual

76
* KEEP OUT OF REACH OF CHILDREN.
Battery Removal:
1. Remove the seat (page 37).
2. Remove the battery cover (1) by
removing the mount bolts.
3. Disconnect the negative (-)
terminal lead (2) from the battery first,
then disconnect the positive (+)
terminal lead (3).
4. Remove the battery from the battery
box (4).

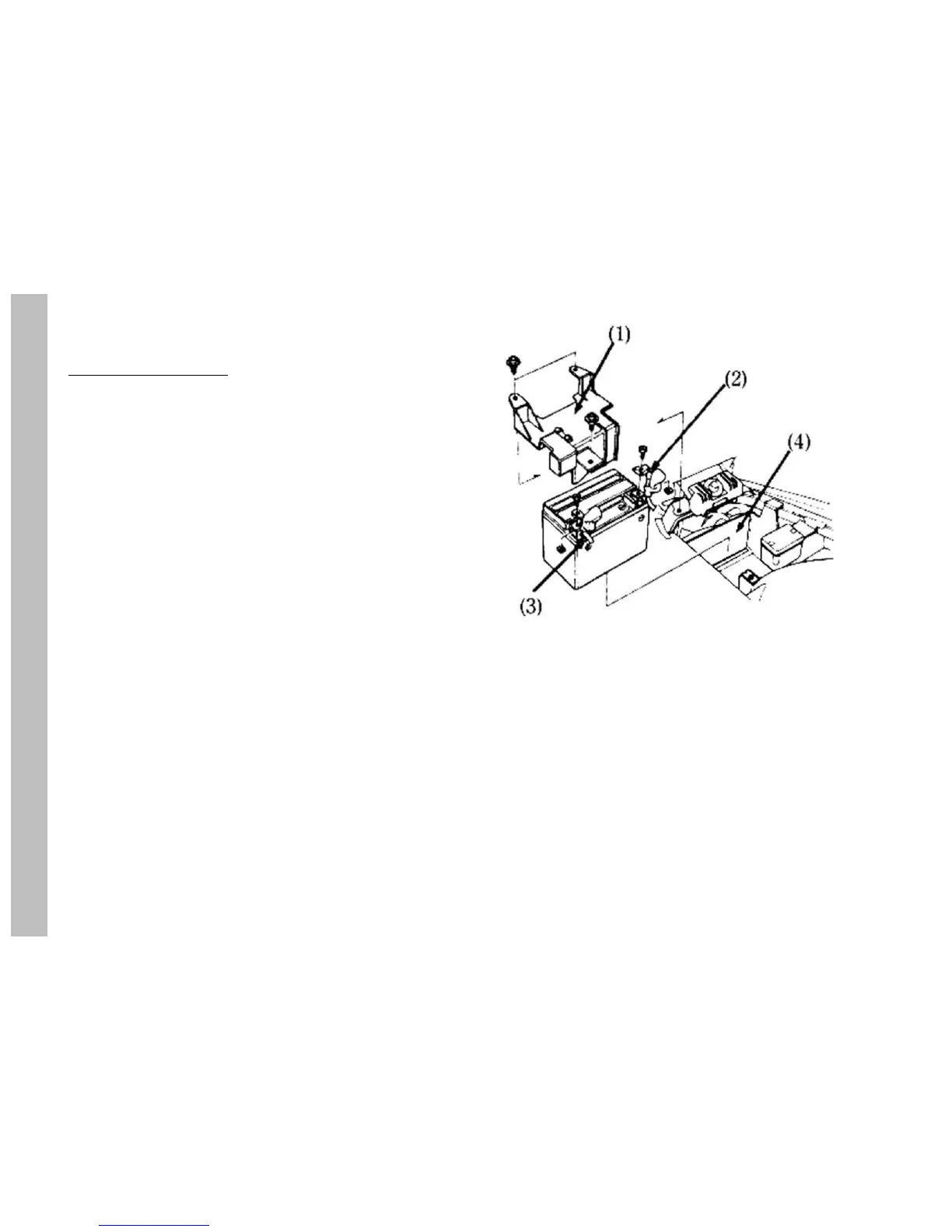

(1) Battery cover
(2) Negative (-) terminal lead
(3) Positive (+) terminal lead
(4) Battery box
E
L
E
C
T
R
I
C
A
L

Honda NT650 Specifications

General

Displacement	647 cc
Bore x Stroke	79.0 mm x 66.0 mm
Compression Ratio	10.0:1
Transmission	5-speed
Rear Brakes	Single 240mm disc with single-piston caliper
Front Tire	120/70-17
Rear Tire	150/70-17
Seat Height	800 mm (31.5 inches)
Final Drive	Chain
Fuel Capacity	19 liters (5.0 US gallons)
Wheelbase	1, 460 mm (57.5 inches)
Engine Type	Liquid-cooled, 4-stroke, SOHC, V-twin
Fuel System	Carburetor (2x 36mm Keihin CV)
Front Suspension	41 mm telescopic fork
Rear Suspension	Pro-Link single shock
Front Brakes	Dual 296mm discs with 2-piston calipers
