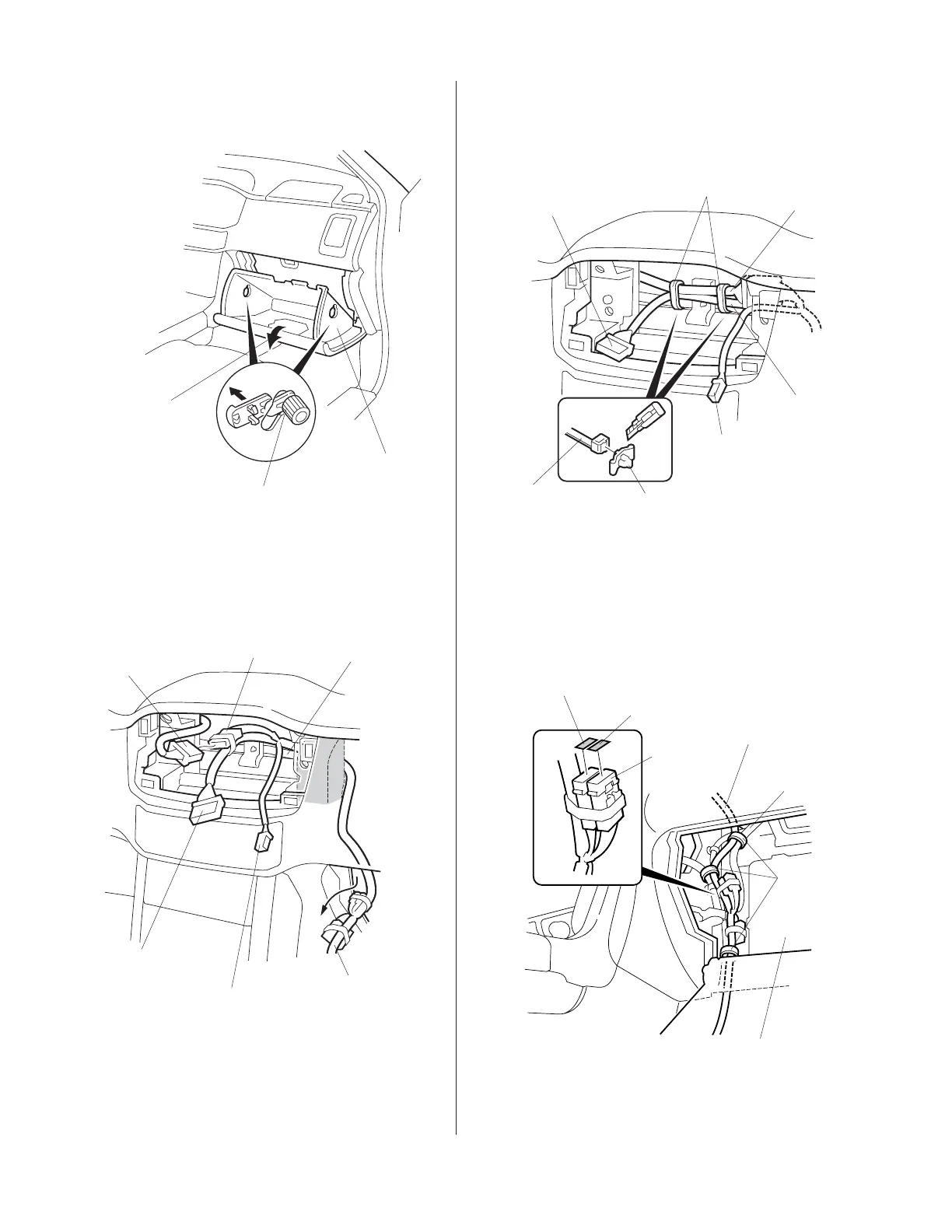

9. Lower the glove box by removing the right and left
stops.
12. Get five wire ties with clip from the kit. Using a
utility knife, cut off the clips from the wire ties with
clip at the area shown.
Routing the Subwoofer Harness
10. From the audio unit opening, route the subwoofer
harness to the bottom of the glove box opening.
13. Secure the subwoofer harness to the vehicle
harness with two cut wire ties with clip.
14. At the bottom of the glove box opening, secure
the subwoofer harness to the vehicle harness with
the remaining three cut wire ties with clip.
GLOVE BOX
STOPS (2)
Lower
completely.
3403170M
VEHICLE 20-PIN
CONNECTOR
Connect.
SUBWOOFER
20-PIN CONNECTOR
VEHICLE
HARNESS
SUBWOOFER
20-PIN CONNECTOR
SUBWOOFER
2-PIN CONNECTOR
SUBWOOFER
HARNESS
11. Plug the subwoofer harness 20-pin connector into
the vehicle 20-pin connector.
3404010M
WIRE TIE
WITH CLIP
Cut off the clip.
WIRE TIES
WITH CLIP
SUBWOOFER
20-PIN CONNECTOR
SUBWOOFER
HARNESS
VEHICLE
HARNESS
SUBWOOFER
2-PIN CONNECTOR
3404021M
GLOVE BOX
OPENING
VEHICLE
HARNESS
SUBWOOFER
HARNESS
CUT WIRE
TIES WITH
CLIP
FUSE
CASES
FUSE LABEL
(2A)
FUSE LABEL
(2A)
15. Install the 2A fuse labels to the fuse cases on the
subwoofer harness.
