Honda Pilot 2003 - Subwoofer Harness Connections; Subwoofer Bracket and Mounting

© 2003 American Honda Motor Co., Inc - All Rights Reserved. AII 25876 (0308) 5 of 8

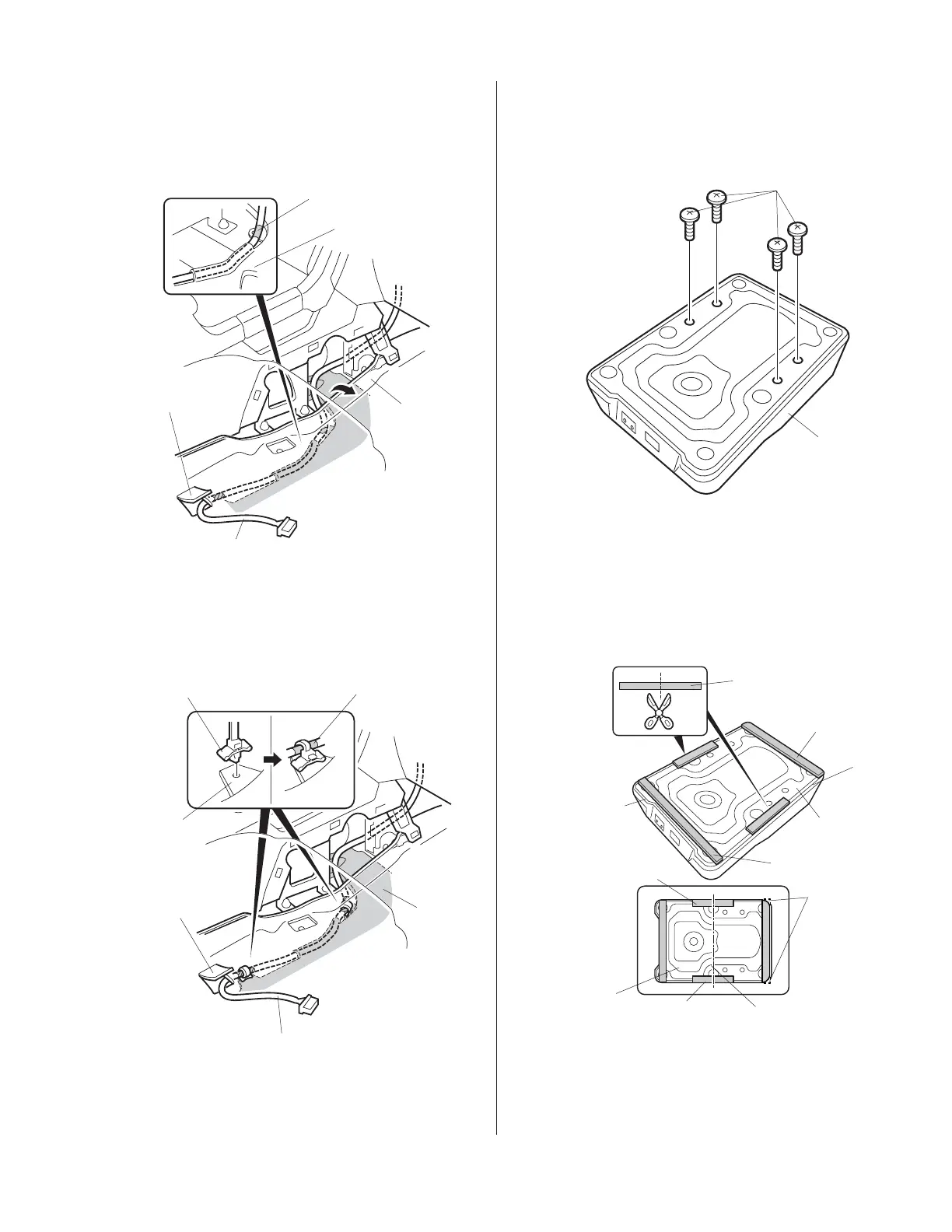

16. Lift up the carpet. Route the subwoofer harness
down and under the carpet and out through the
cutout under the passenger’s seat. Align the green
tape on the harness with the location shown.
17. Get two wire ties with clip. Push the clip of each
wire tie into the holes in the air duct.
Installing the Subwoofer Bracket
19. Remove and retain the four screws from the
subwoofer.
20. Using isopropyl alcohol on a shop towel, thoroughly
clean the areas where the small cushion tapes will
attach. Attach one small cushion tape to each
outboard edge of the subwoofer. Cut the excess
cushion tape off of the rounded edges of the
subwoofer.
21. Using scissors, cut the remaining small cushion
tape in two pieces. Attach the two cut pieces to
the sides of the subwoofer in the areas shown.
18. Secure the subwoofer harness with the two wire
ties with clip at the green tape locations.
3404040M
GREEN TAPE ON
SUBWOOFER HARNESS
AIR DUCT
FLOOR
CARPET
SUBWOOFER
HARNESS
CUTOUT UNDER
THE PASSENGER’S
SIDE SEAT
2930010W
SCREW (Reuse.)
SUBWOOFER
3404030M
SUBWOOFER
CUSHION
Use 1/2
cushion tape.
Attach each 1/2
piece at the center.
Cut off the
excess part.
CUSHION
SUBWOOFER
CUSHION
CUSHION
Cut a cushion
tape into two.
CUSHION
Use 1/2
cushion tape.
OUTBOARD
EDGE
OUTBOARD
EDGE
3404050M
WIRE TIE
WITH CLIP
GREEN TAPE ON
SUBWOOFER HARNESS
AIR DUCT
CUTOUT
UNDER THE
PASSENGER’S
SIDE SEAT
SUBWOOFER
HARNESS
AIR DUCT
