Honda Pilot 2003 - Subwoofer Assembly to Seat Riser

6 of 8 AII 25876 (0308) © 2003 American Honda Motor Co., Inc - All Rights Reserved.
3404060M
WIRE TIE
WITH CLIP
SUBWOOFER
BRACKET
SUBWOOFER
8-PIN
CONNECTOR
SUBWOOFER
SUBWOOFER
HARNESS
SUBWOOFER
END OF
CORRUGATE TUBE

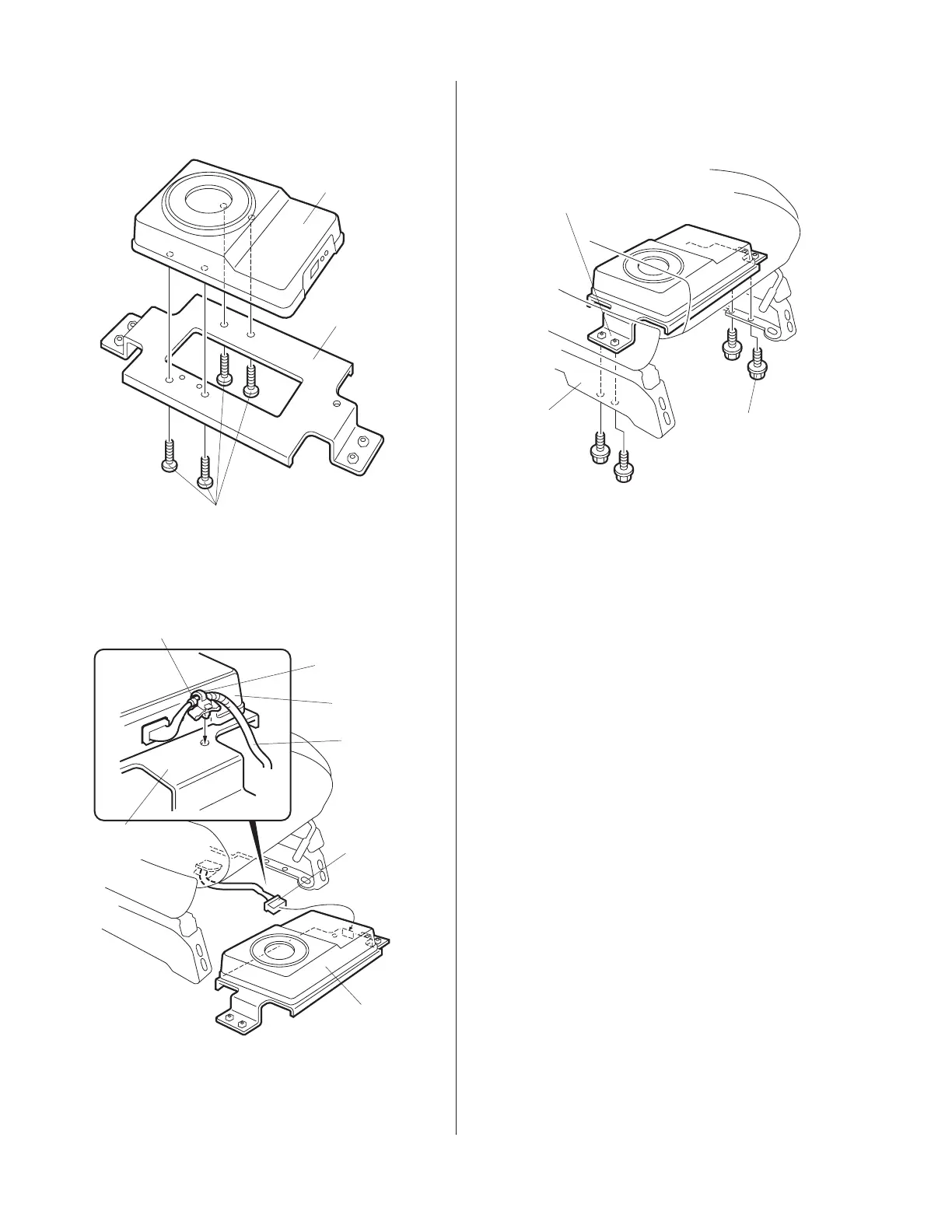

22. Position the subwoofer on the subwoofer bracket,
and install the subwoofer to the subwoofer bracket
using the four screws you removed in step 19.
23. Plug the subwoofer harness 8-pin connector into
the subwoofer.
24. Attach one wire tie with clip to the subwoofer
harness at the end of corrugate tube, then push
the clip into the hole in the subwoofer bracket.
25. Attach the subwoofer assembly to the seat riser
with four 6 x 12 mm flange bolts from the
attachment kit.
26. Reinstall the passenger’s seat and torque the seat
bolts to 35 N·m (25 lbf·ft). Reinstall the front and
rear covers.
3403220M
SCREW (reused)
SUBWOOFER
BRACKET
SUBWOOFER
3404070M
SUBWOOFER
BRACKET
SEAT
RISER
6 x 12 mm FLANGE
BOLTS (4)
