ENGINE REMOVAL/INSTALLATION
8-3
SERVICE INFORMATION
GENERAL
• When removing/installing the engine, tape the frame around the engine beforehand for frame protection.
• A hoist or equivalent is required to support the frame when removing and installing the engine. Support the engine
using a jack or other adjustable support to ease engine mounting bolt removal.
• Do not support the engine using the engine oil filter or it will be damaged.
• The crankcase and crankshaft require engine removal for service. Other components can be serviced with the engine
installed in the frame.
SPECIFICATIONS
TORQUE VALUES

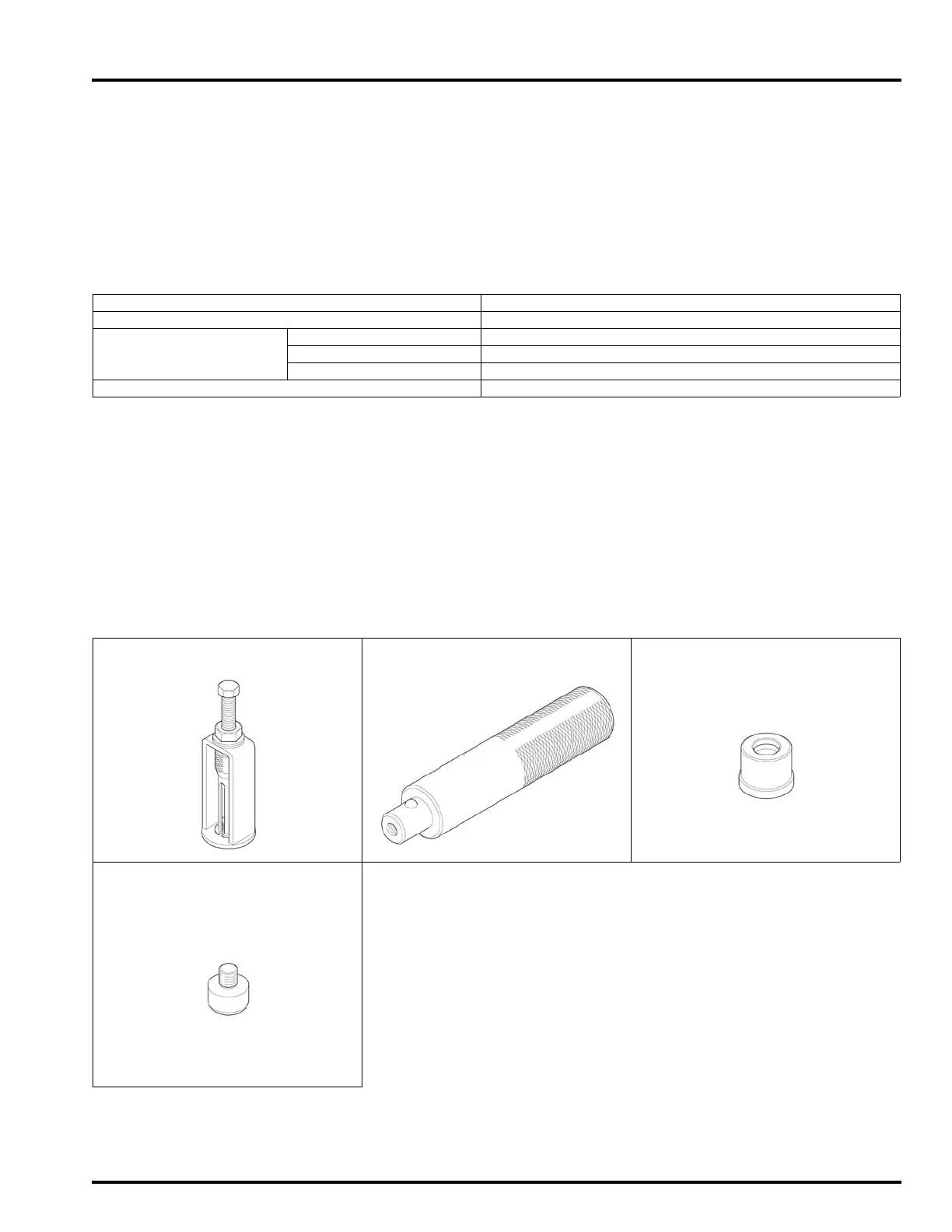

TOOLS
ITEM SPECIFICATIONS
Engine dry weight 41 kg (90.4 lbs)
Engine oil capacity After draining 1.2 liter (1.3 US qt, 1.1 lmp qt)
After oil filter change 1.4 liter (1.5 US qt, 1.2 lmp qt)
After disassembly 1.7 liter (1.8 US qt, 1.5 lmp qt)
Coolant capacity (radiator and engine) 1.1 liter (1.2 US qt, 1.0 lmp qt)
Frame pivot nut 78 N·m (8.0 kgf·m, 58 lbf·ft) U-nut.
Engine pivot nut 78 N·m (8.0 kgf·m, 58 lbf·ft) U-nut.
Engine hanger bracket nut 64 N·m (6.5 kgf·m, 47 lbf·ft) U-nut.
Swing rod nut (Upper) 42 N·m (4.3 kgf·m, 31 lbf·ft) U-nut.
Swing rod nut (Lower) 52 N·m (5.3 kgf·m, 38 lbf·ft) U-nut.
Rear brake caliper mounting bolt 30 N·m (3.1 kgf·m, 22 lbf·ft) Aloc bolt; replace with a new one
Starter motor cable terminal nut 10 N·m (1.0 kgf·m, 7 lbf·ft)
Bearing remover, 20 mm
07931-MA70000
Driver
07749-0010000
Attachment, 24 x 26 mm
07746-0010700
Pilot, 20 mm
07746-0040500
