Honda SH300 2009 User Manual

MAINTENANCE
4-16

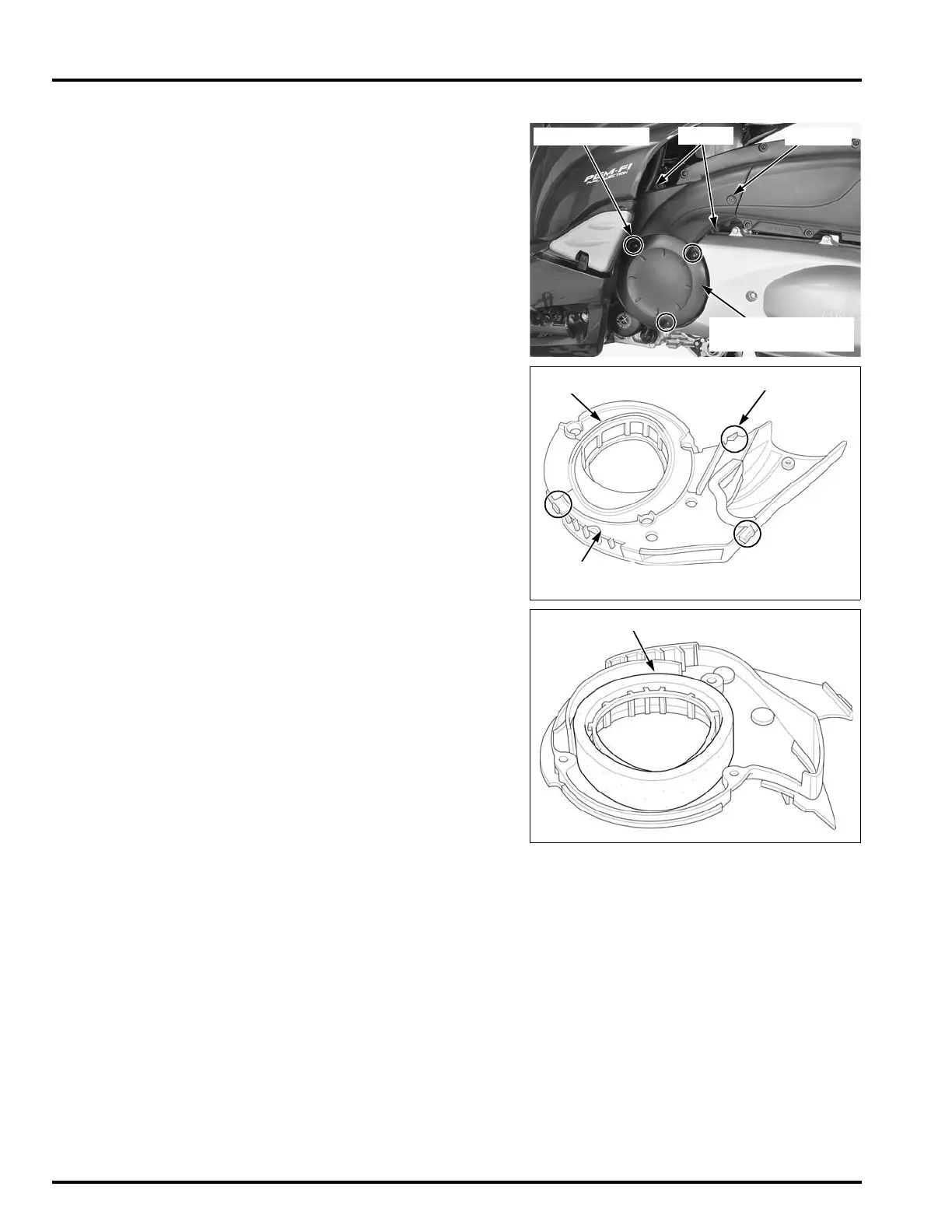

BELT CASE AIR CLEANER
Remove the three socket bolts and screw.
Remove the belt case air cleaner housing from the
left crankcase cover.
Release the three tabs of the air cleaner base cover
from the slots of the air cleaner base.
Remove the air cleaner base cover from the air
cleaner base.
Check that the O-ring of the air cleaner base cover is
in good condition, replace if necessary.
Remove the air cleaner element from the base core.
Wash the element in non-flammable or high flash
point solvent.
Squeeze out the solvent and let it dry thoroughly,
then install it onto the base core.
Install the belt case air cleaner housing in the
reverse order of removal.
BELT CASE AIR
CLEANER HOUSING
SOCKET BOLTS
TABS
SCREW
TABS/SLOTS
AIR CLEANER
BASE COVER
O-RING
Do not apply oil to
the element.
TORQUE:
Belt case air cleaner housing socket bolt:
10 N·m (1.0 kgf·m, 7 lbf·ft)
ELEMENT

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
