Honda SH300 2009 User Manual

ALTERNATOR/STARTER CLUTCH
13-8

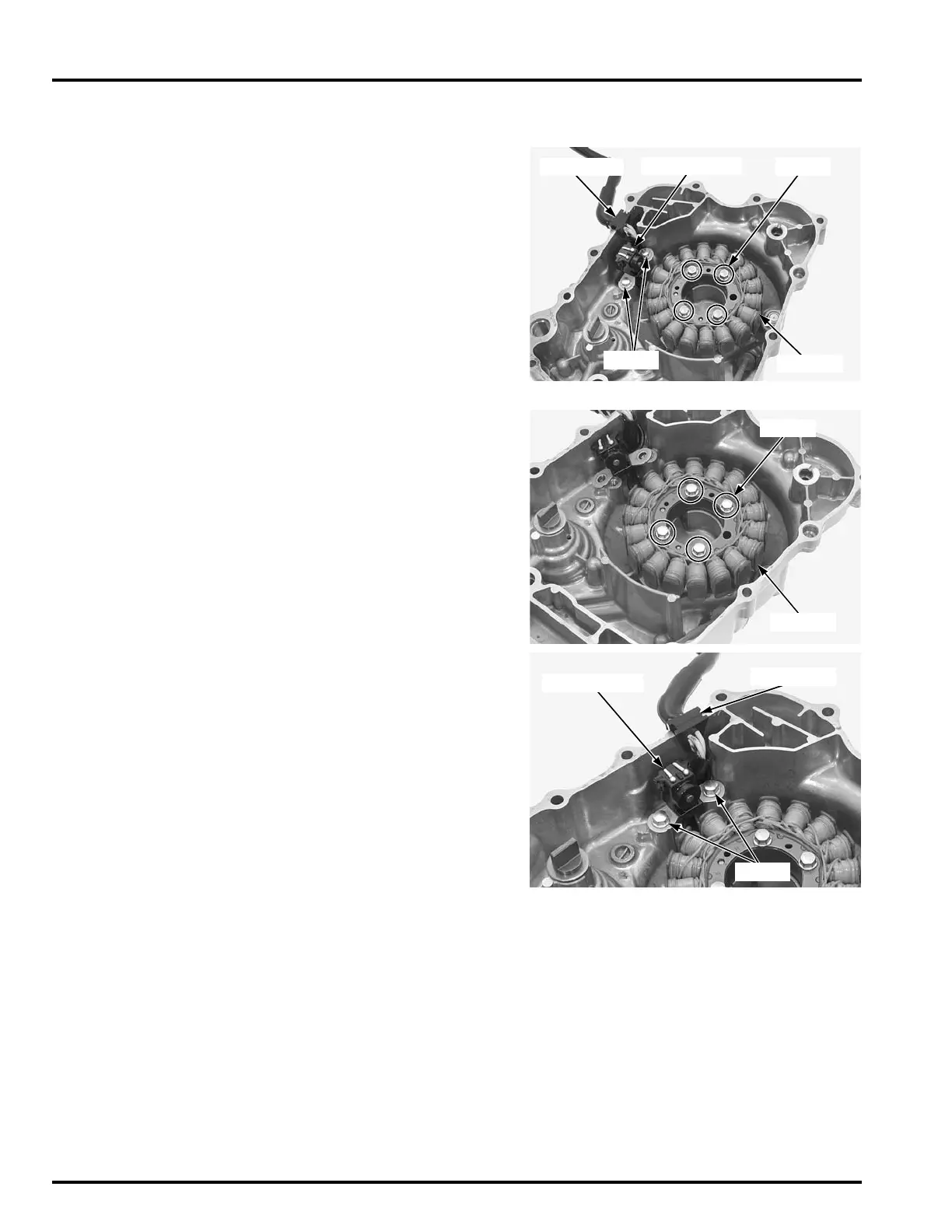

STATOR/CKP SENSOR
REMOVAL
Remove the right crankcase cover (page 13-4).
Remove the following from the right crankcase
cover:
– four bolts and stator
– two bolts and CKP sensor
– wire grommet
INSTALLATION
Install the stator and tighten the four bolts.
Install the CKP sensor and tighten the two bolts.
Set the wire grommet into the right crankcase cover
groove properly.
Install the right crankcase cover (page 13-5).
GROMMET
STATOR
CKP SENSOR
BOLTS
BOLTS
STATOR
BOLTS
GROMMET
BOLTS
CKP SENSOR

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
