Changing Final Drive Oil
1.
Place your vehicle on the side stand on a
level surface.
2.
Place a drain pan under the drain bolt.
3.
Remove the oil fill hole cap, O-ring, drain
bolt, and sealing washer to drain the oil.
4.
Install a new sealing washer onto the
drain bolt. Tighten the drain bolt.
Torque: 9 lbf·ft (12 N·m, 1.2 kgf·m)
5.
Fill the final gear with the recommended
oil. 2 P. 45
Required oil: 5.4 US oz (160 cm
3
)
6.
Check the oil level. It should be flush with
the lower edge of the oil fill hole.
7.
Install a new O-ring onto the oil fill hole
cap. Tighten the oil fill hole cap.
Torque: 9 lbf·ft (12 N·m, 1.2 kgf·m)
8.
Check that there are no oil leaks.
Final Drive Oil u Changing Final Drive Oil
Maintenance
64

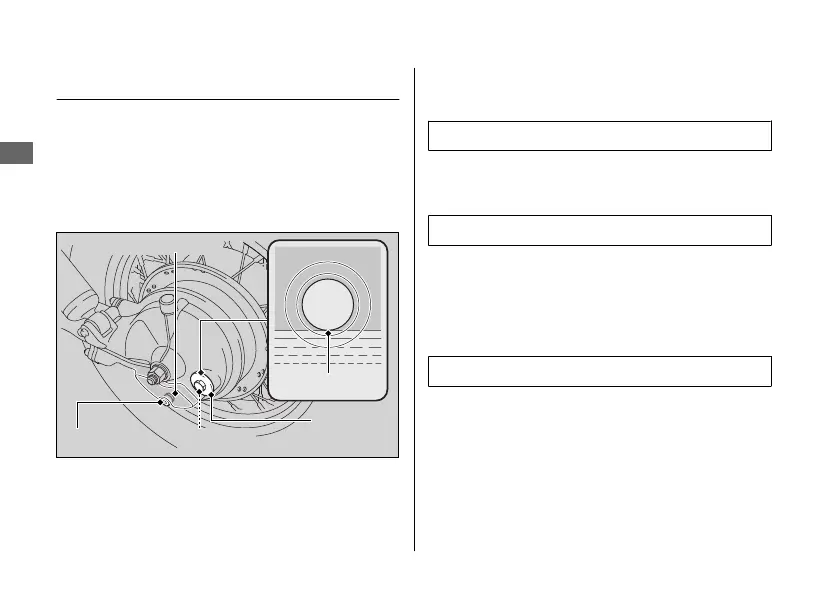

Oil fill
hole cap
Drain bolt
O-ring
Sealing washer
Lower edge
To Next Page
