Adjusting the Rear Brake Pedal
Freeplay
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.
If proper adjustment cannot be obtained by
this method, see your dealer.
1.
Adjust by turning the rear brake adjusting
nut a half-turn at a time.
2.
Apply the brake several times and check
for free wheel rotation after the brake
pedal is released.
Brakes u Adjusting the Rear Brake Pedal Freeplay
Maintenance
68

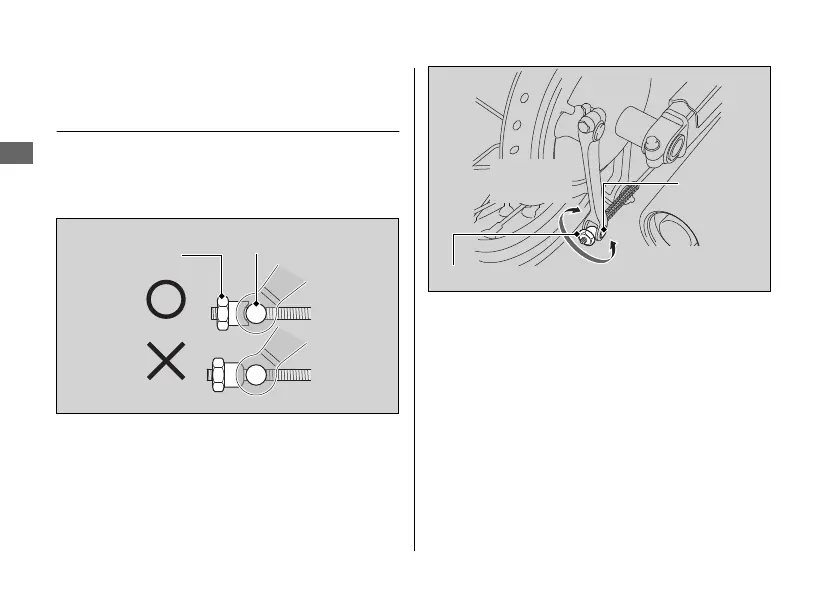

Adjusting nut
Brake arm pin
Increase
Freeplay
Adjusting nut
Brake
arm pin
Decrease
Freeplay
