Removal
1.
Place your vehicle on a firm, level surface.
2.
Support your vehicle securely and raise
the rear wheel off the ground using a
maintenance stand or a hoist.
3.
Remove the rear brake adjusting nut.
4.
Disconnect the brake rod from the brake
arm.
5.
Disconnect the brake stopper arm from
the brake panel by removing the cotter
pin, stopper arm nut, washer and rubber
grommet.
6.
Loosen the axle holding bolt.
Tire Puncture u Removing Wheels
Troubleshooting
89
Continued

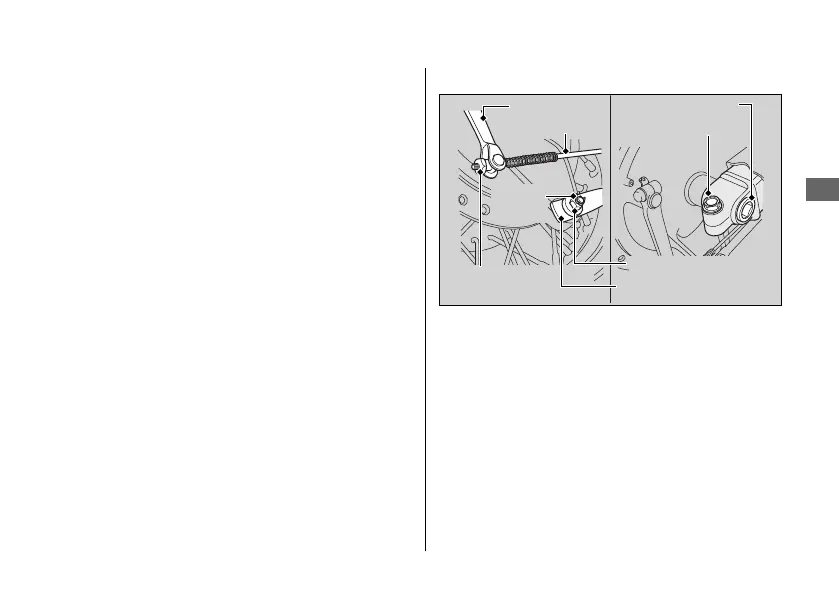

Rear brake
adjusting nut
Brake stopper arm
Stopper arm nut
Rear axle shaft
Axle holding
bolt
Brake arm
Cotter
pin
Brake rod
To Next Page
