āā
ā
ā
24mm
(0.1 0.2 in)
24mm(0.10.2in)
(2)
(4)
LEFT HANDLEBAR
(1)
(3)
(4) rubber sleeve
(5) lock nut
(6) adjusting nut
(1) dust cover
(2) reverse assist lever
(3) rear brake lever
(6)
(5)
133

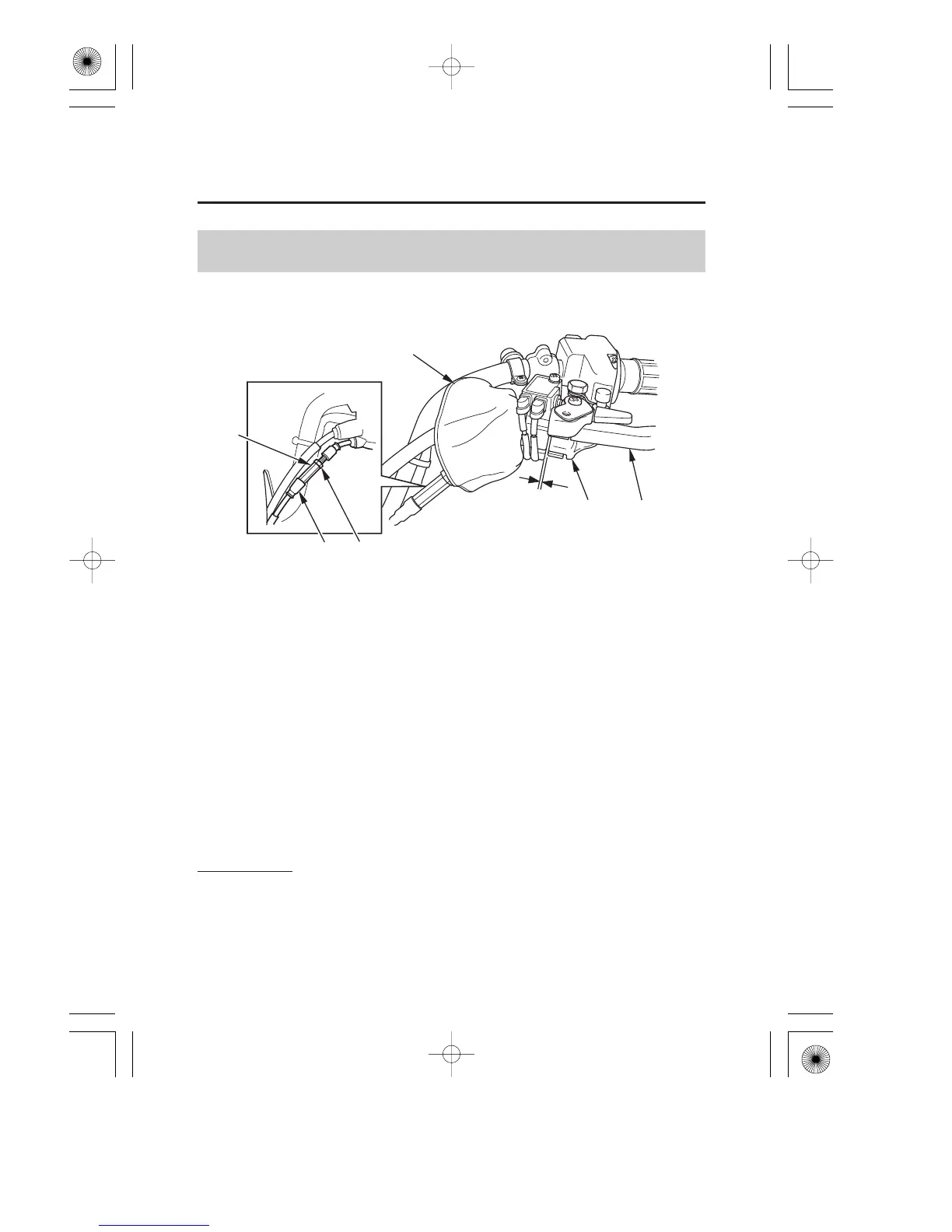

Reverse Lock System Adjustment
Servicing Your Honda
Reverse Lock System
Saf ety PrecautionsRefer to on page .
Turn over the dust cover ( ).
Check the reverse assist lever ( ) freeplay, measured at the rear brake
lever ( ) end near the cable:
To adjust, slide the rubber sleeve ( ), loosen the lock nut ( ) and turn
the adjusting nut ( ).
After adjustment, tighten the lock nut securely.
Return the dust cover and rubber sleeve.
Other Checks
Check the reverse assist lever and cable for loose connections or other
damage. If the cable is worn or kinked, have it replaced by your Honda
dealer.
1.
2.
3.
4.
1
3
89
2
45
6
06/10/24 13:18:57 32HP4800_142
