(1) (2)
(2) 4WD indicator
4WD MODE 2WD MODE
4WD MODE2WD MODE

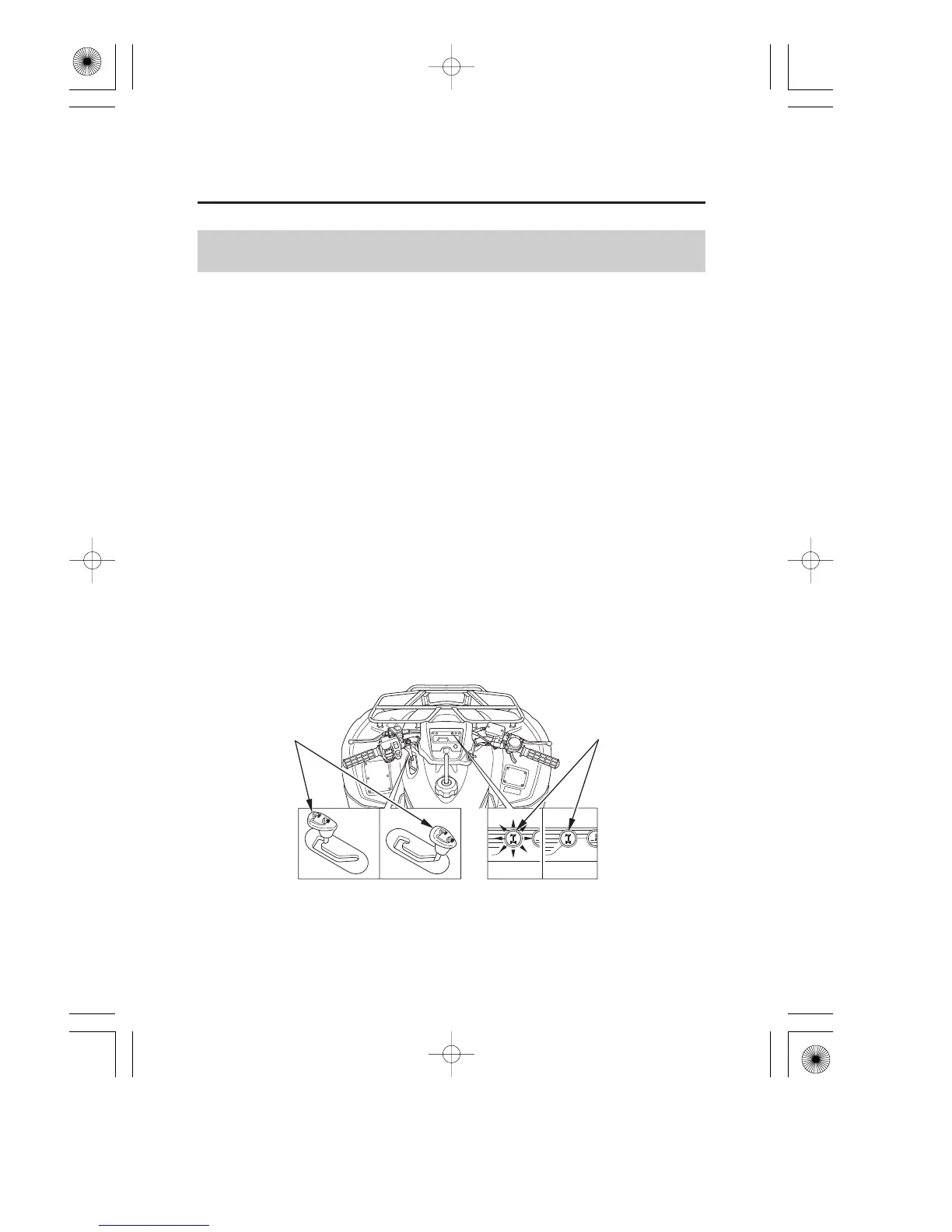

(1) 2WD/4WD select lever
26
2WD/4WD Select Lever ( only)
Controls & Features
Instruments & Controls
TRX420FE
Your ATV is equipped with a 2WD/4WD select lever ( ), which
permits a choice between the ‘‘2WD’’ and ‘‘4WD’’ drive modes. Select
a drive mode that’s suitable for your riding.
Keep both hands on the handlebar while machine is in motion and come
to a complete stop before using the 2WD/4WD select lever.
The 2WD/4WD select lever is located on the left side of the fuel tank.
To select the drive mode, shift the 2WD/4WD select lever to the desired
position.
After the 2WD/4WD select lever is used, the selected drive mode may
not mecanically engage until the throttle is applied.
To check your present drive mode, look at the 4WD indicator ( ).
2WD mode : the 4WD indicator goes off when the 2WD mode engages.
4WD mode : the 4WD indicator goes on when the 4WD mode engages.
1
2
06/10/24 13:01:25 32HP4800_035
