Fuel Valve
Controls & Features
Indicators & Controls

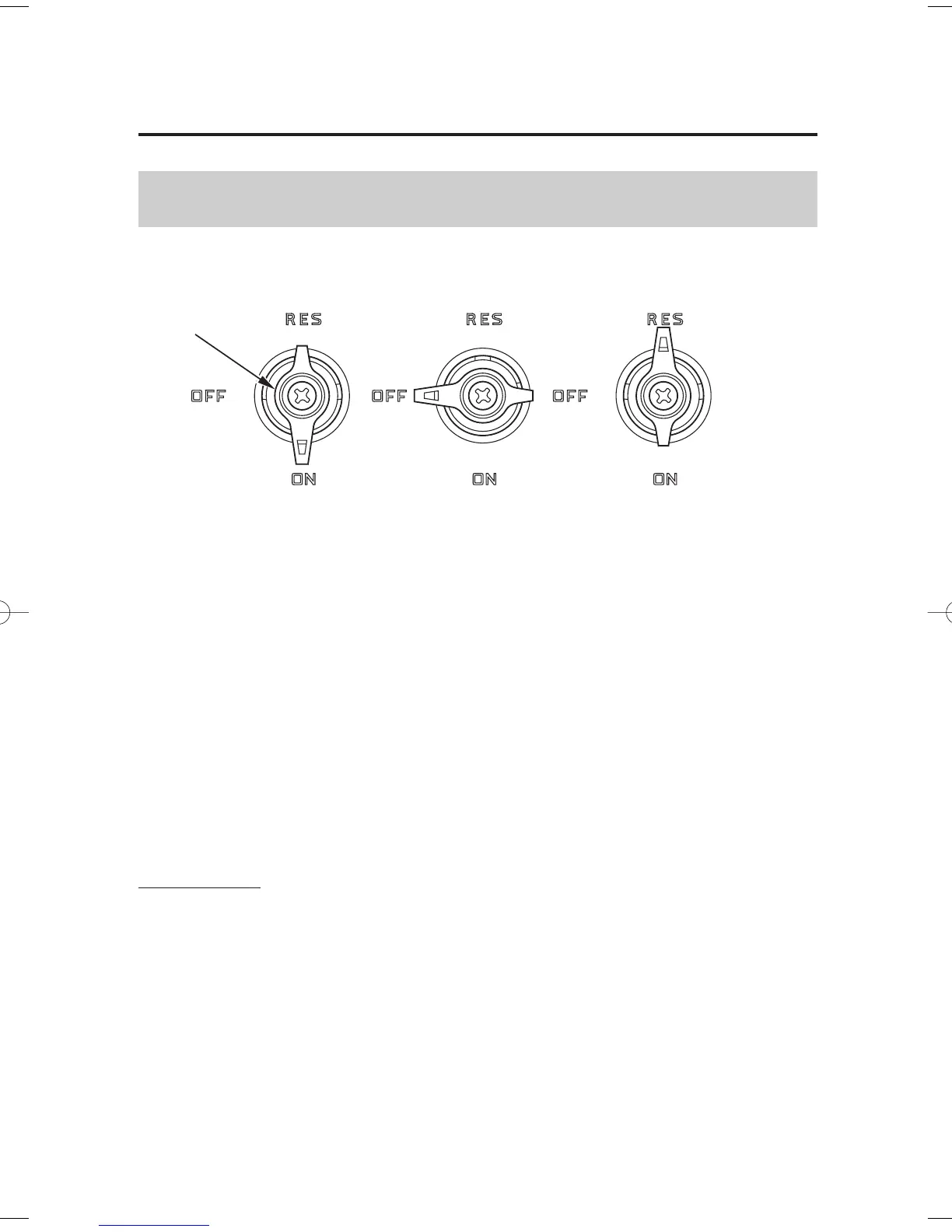

ON normal position for riding.
OFF for parking, storing, or transportation.
RES for extra fuel to get to a gas supply for refueling.
Reserve Fuel
Remember to check that the fuel valve is in the ON position each time
you refuel. If the fuel valve is left in the RES position, you may run out
of fuel with no reserve.
For complete information about fueling your ATV, see page .
The three-way fuel valve is used to control the flow of fuel from the
fuel tank to the carburetor.
The manual fuel valve ( ) is located on the left side under the fuel tank.1
89
