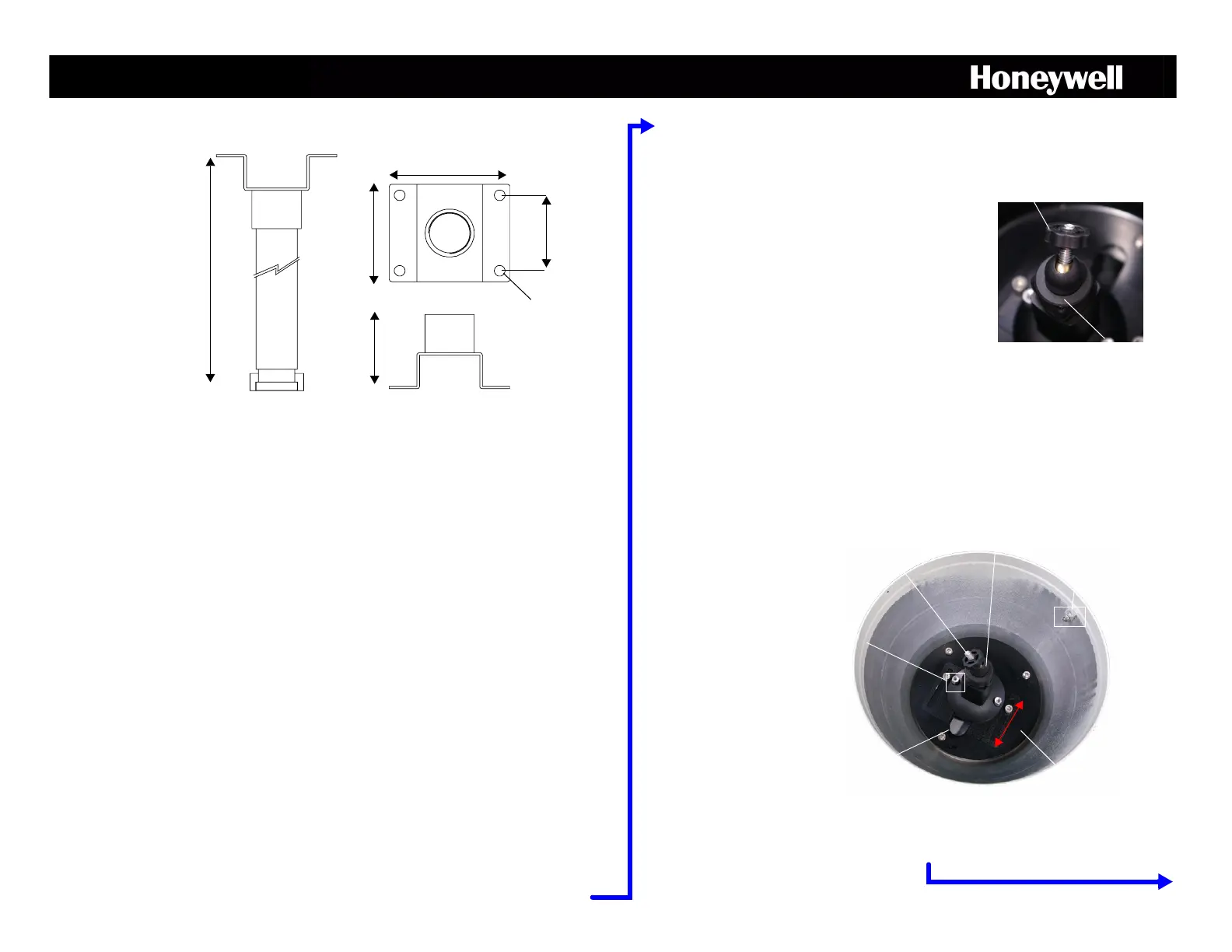

Figure 6 Ceiling Mount Dimensions
3 Install the Housing
1. If not already done, route the field wiring:
a. Through the housing mount, then
b. Through the field wiring access hole in the housing, and then
c. Through the field wiring access hole under the base plate (see
Figure 7).
Note The wiring must extend at least one foot (0.3 m) past the
mount for wiring purposes.
2. Install the housing on the mount. Make sure there is Teflon
®
tape on
the threaded nipple part of the housing.
14.76” (375.0 mm)
5.51” (140.0 mm)
PF 1.5”
3.58" (91.0 mm)
4.57” (116.0 mm)
0.47” (12.0 mm)
diameter
3.54” (90 mm)
4 Install and Adjust the Camera Position
Single Ball Joint Stick Mount (HDH4D)
1. Screw the camera onto the 1/4”-20
tripod mounting screw. Keep the
nut on the inside, closest to the ball
socket.
2. Loosen the position screws on the
base plate. See Figure 7.
3. Slide the camera mount in the slot
to position the camera based on the
installation requirements.
4. Tighten the position screws on the
base plate.
5. Loosen the base of the ball socket.
Adjust the camera to the required
angle.
6. Turn the base of the ball socket to tighten and secure the camera
angle.
7. Tighten the camera mounting nut tight against the fixed camera block.
8. Complete the wiring as per the camera selected.
Figure 7 Internal Pendant Housing - Single Ball Joint
Camera mount screw and nut
Ball socket base
Field wiring
access hole
Clip lower dome
lanyard to bracket
Position screws
(1 of 2) in the
base plate
Loosen ball socket base to
adjust camera angle
Camera mount screw
(1/4“-20 tripod) and nut
Base plate slot (1 of 2)
