Honeywell BENDIX/KING KCS55A - KG 102;102 A 400 Hz. Supply Interconnection Diagrams

BENDIX/KING KCS 55/55A
Rev 11, Apr/2007 ©Honeywell International Inc. Do not print without express permission of Honeywell Page 2-57
Notes:
1. Using the KG 102/102A as a 26V, 400 Hz. supply, the compass X, Y, and Z input of the KI
229 or KNI 582 must be the only load on the compass bootstrap output.
2. The KG 102/102A has only 5 VA of available 26V, 400 Hz. power at pin p and t and should
not be overloaded.
3. The 2.7K resistor provides a pull up for the compass valid to the KNI 582. Pin D pulls the
compass valid low in an invalid condition.

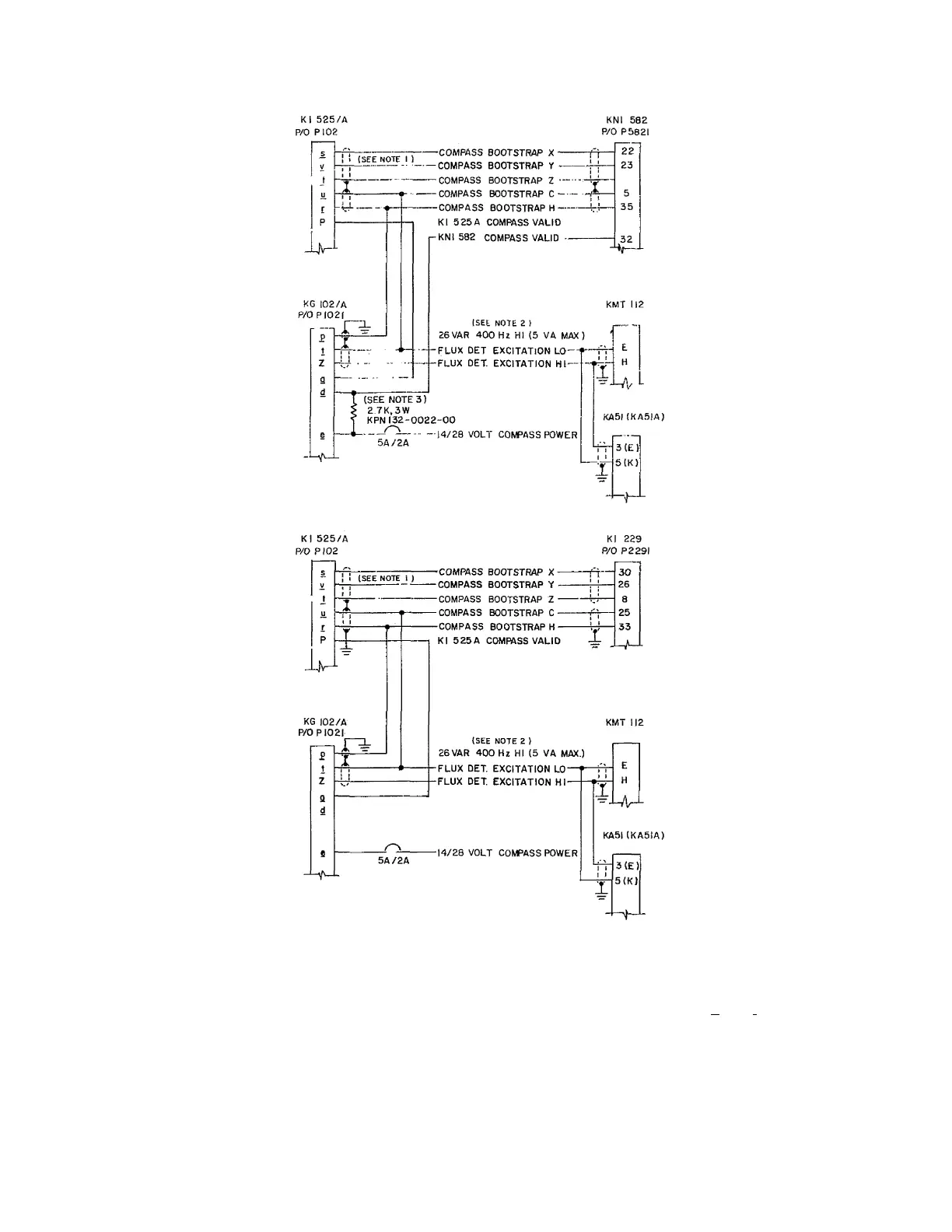

FIGURE 2-28
KG 102/102A 400 Hz. Supply Interconnection Diagrams
