USE & OPERATION (CONTINUED)
EN
Remove the screws from the Rear Grill of the Air Cooler.
Carefully pull out the Rear Grill from the Air Cooler.
The Honeycomb Cooling Pad is secured on the Rear Grill by two Horizontal Bars that are fixed in
place by two screws on the Left and Right Sides of these Horizontal Bars. Remove these screws
to release the Horizontal Bars.
Pull out the Honeycomb Cooling Pad by sliding it out from the Rear Grill. Replace with the new
Honeycomb Cooling Pad by sliding into the grooves of the Rear Grill until it fits comfortably and
securely in place on the grill. Replace the Horizontal Bars back onto the Rear Grill by replacing the
Left and Right Side screws and tightening them in place. This secures the Honeycomb Cooling
Pad in place on the Rear Grill.
Repeat steps 1 to 4 to remove the Honeycomb Cooling Pad on the Left and Right Side Grills.
1.
2.
3.
4.
5.
Removing the Honeycomb Cooling Media:
WARNING: DO NOT operate the Air Cooler when any or all of the Rear or Side Grills are removed
from the Air Cooler, or if there is a loose-fitting Rear or Side Grill. Doing so can cause serious injury or
dangerous electrical shock.

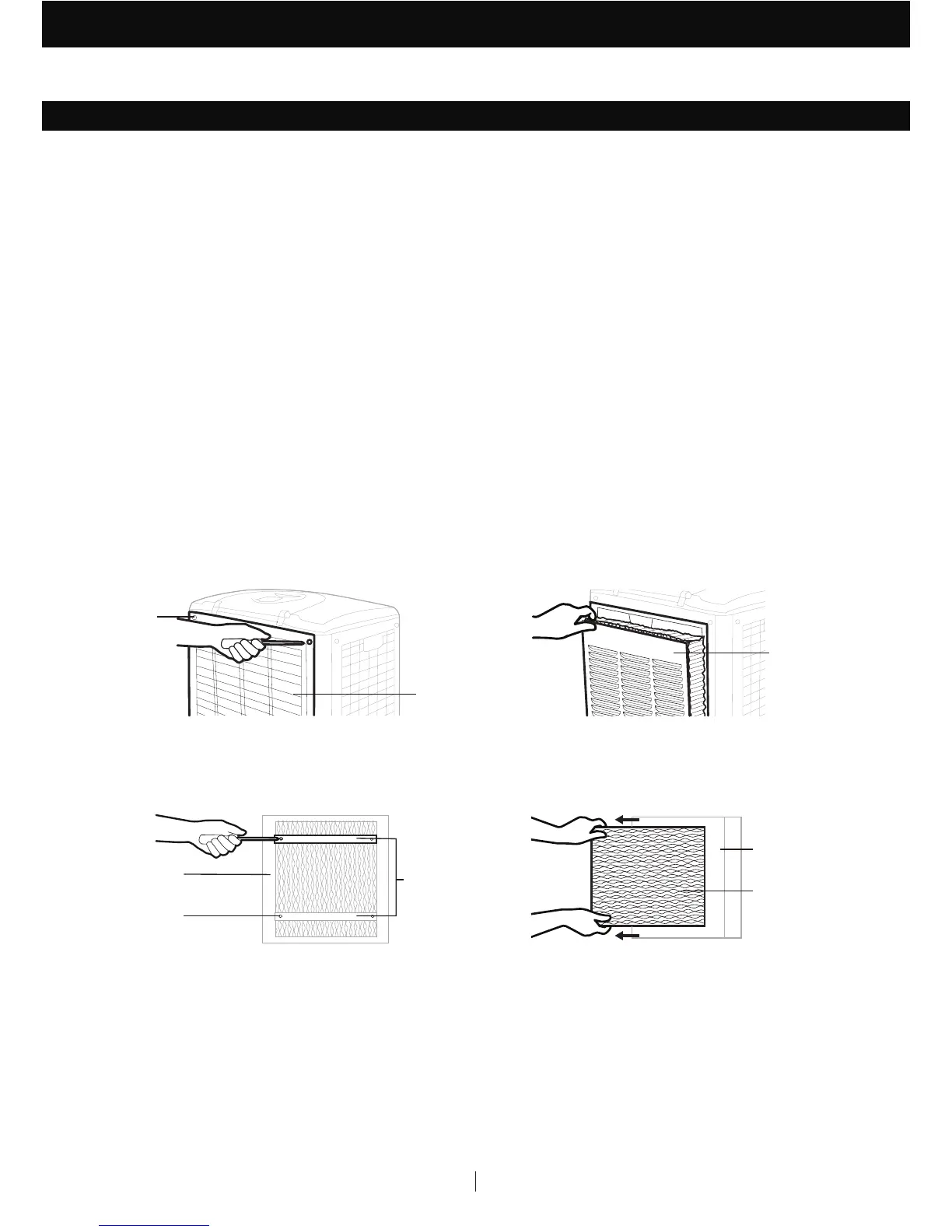

Step 2:
Rear Grill
Step 1:
Rear Grill
Rear Grill
Screws
Step 3:
Rear
Honeycomb Pad
Screws
Horizontal
Bars
Step 4:
Rear
Honeycomb
Pad
Rear Grill
CLEANING THE HONEYCOMB COOLING MEDIA (CONTINUED)
To Next Page
