OFF
COOL
ON
OFF
ON
0
3
2
1
SPEED
SWING
(1)
(2)
9
8
(3)
(4)
(5)
6
7
10
11
14
16
12
13
15
17
7) Louvers
8) Water Level Indicator
9) Control Panel
10) Right Side Grill
11) Water Inlet Valve
12) Drain Plug
13) Rear Grill
14) Power Cord & Plug
15) Rear Grill Screws
16) Water Fill Door
17) Honeycomb Cooling Media
(Media is on 3 sides)
1) Water Inlet Hole
2) Handle
3) Left Side Grill
4) Lever for Horizontal Louvers
5) Water Tank
6) Casters

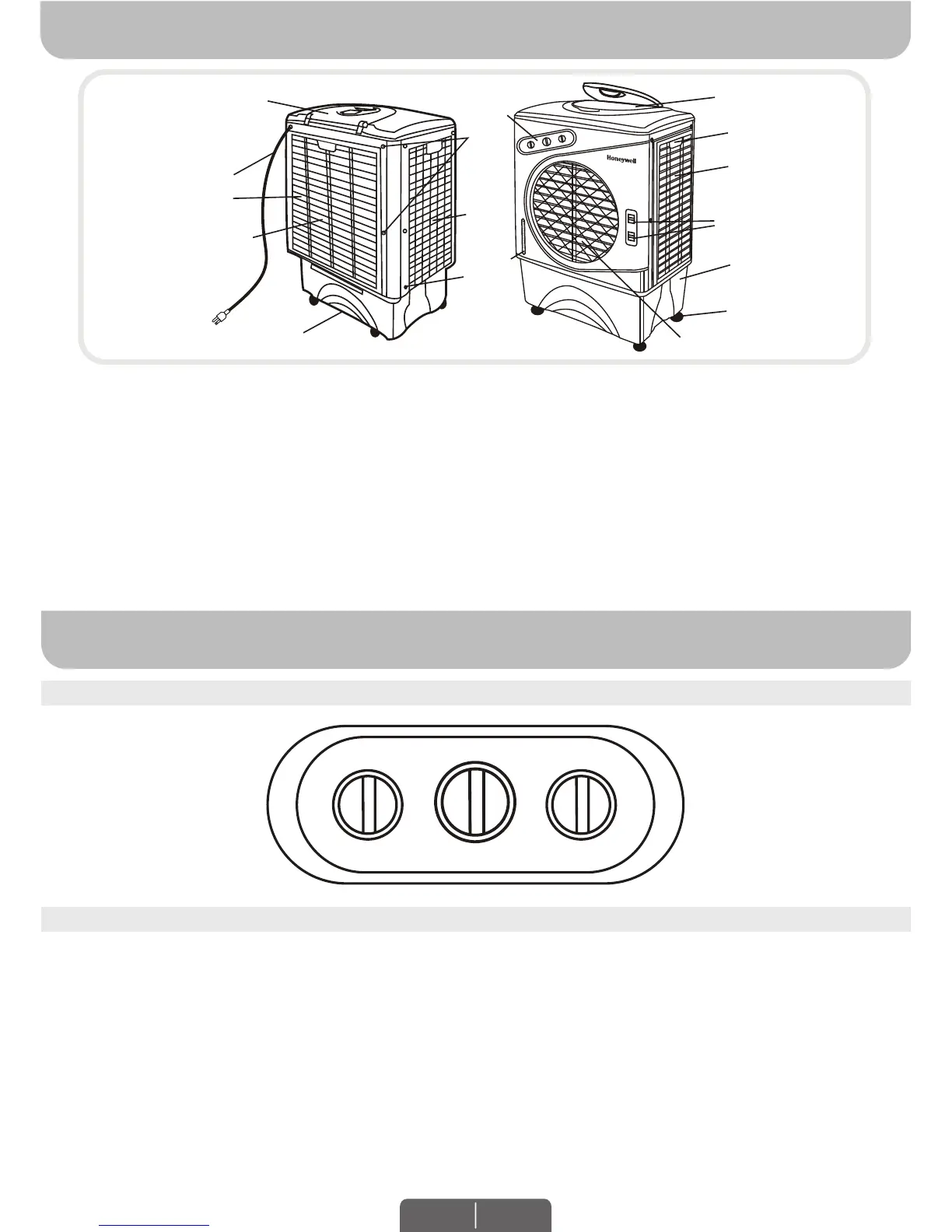

PARTS DESCRIPTION
USE & OPERATION
CONTROL PANEL
FUNCTION BUTTONS
SPEED / ON - OFF
Connect to the power supply and turn the SPEED knob. The fan will start. Change the speed from 3 to
1 (1 for Low, 2 for Medium and 3 for High fan speed). To switch OFF the unit, turn the SPEED knob to 0.
COOL
You must add water before operating the unit on Cool mode. Turn the COOL knob to the ON position to
activate evaporative cooling. The water pump will operate and you will feel the cooler air after the
Honeycomb Cooling Media is completely wet.
SWING
Turn the SWING knob to the ON position to activate the movement of the louvers. The louvers will begin
to move left to right automatically. Vertical Air Flow - You can manually adjust the lever located at the
front of the unit to change vertical air flow.
WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER
MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY.
WARNING: FOR OUTDOOR MODEL CO60PM, USE ONLY ON GFCI PROTECTED RECEPTACLES.
COOL
SPEED
SWING
OFF
ON
ON
OFF
0
3
2
1
EN 1
