CT87A,B,J ROUND® THERMOSTAT
9 69-0274-5
Mount the thermostat
1. Pull off the thermostat cover and discard the red plastic insert that
holds the mercury switch in place during shipping.

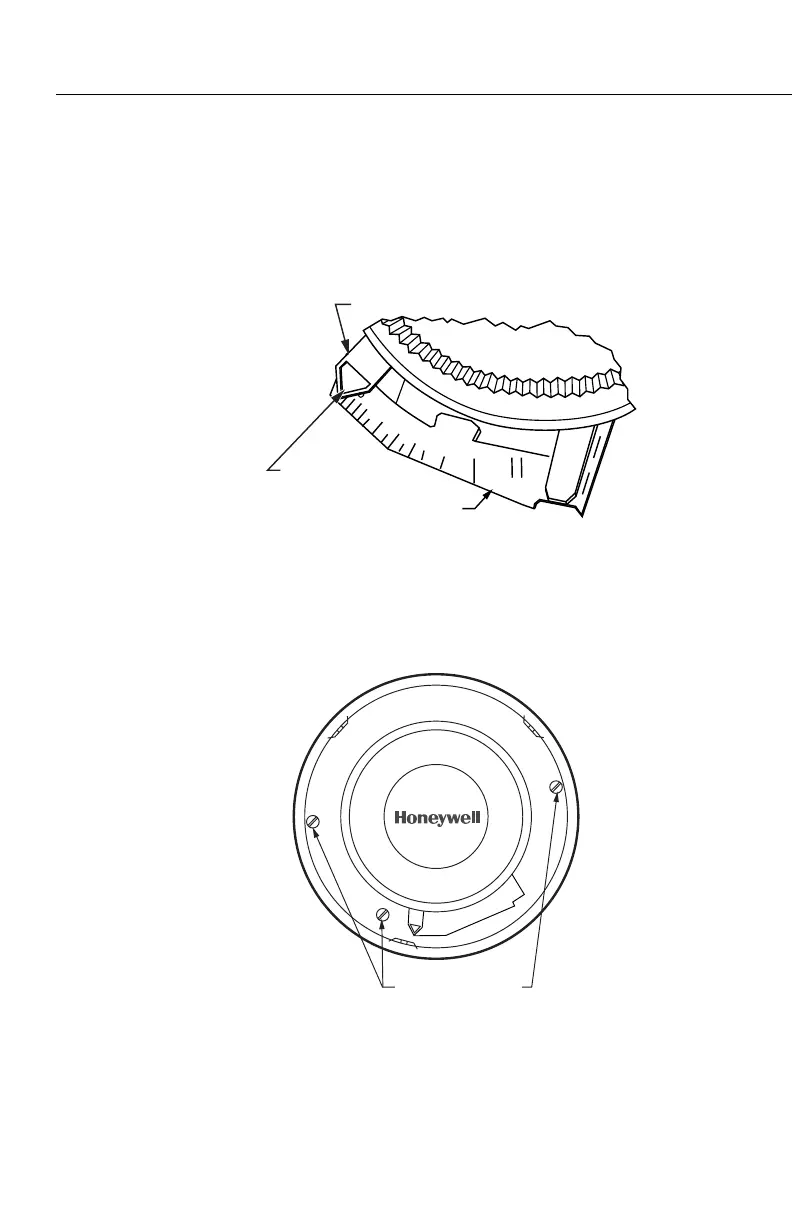

2. Using a pencil point, slide the heat anticipator indicator to 1.2 on the
scale as shown in Fig. 14.
IMPORTANT: This prevents the thermostat from being damaged.
3. Place the thermostat over the wallplate or subbase so that the three
captive mounting screws align with the three raised screw holes on
the wallplate/subbase.
4. Tighten the three captive mounting screws as shown in Fig. 15.
NOTE: These screws complete the electrical connections to the
thermostat.
7
.15
.12
.10
.2
.6
1
.2
.5
.4
.3
HOLE SUITABLE FOR
PENCIL POINT
TO MOVE INDICATOR
HEAT ANTICIPATOR INDICATOR
SCALE
M20226
Fig. 14
CAPTIVE SCREWS (3)
M20227
Fig. 15
