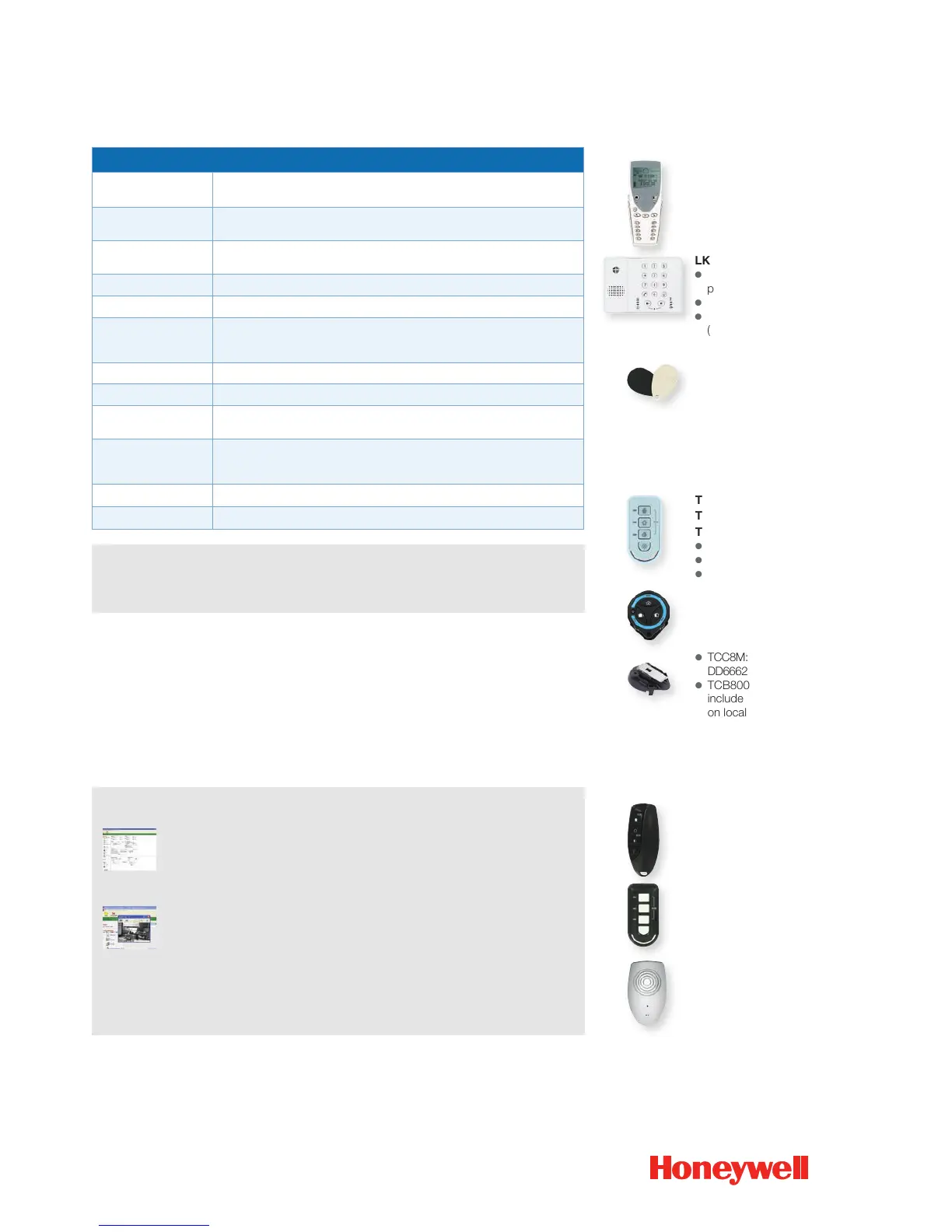

Technical specications:
Domonial
Wireless security for remote monitored systems
Honeywell Security Group
Newhouse Industrial Estate
Motherwell
Lanarkshire
ML1 5SB
United Kingdom
Tel:+44 (0) 1698 738200
www.honeywell.com
HSC-Domonial-06-UK(1212)DS-C
December 2012
© 2012 Honeywell International Inc.
ETH800
(2)
l
Ethernet Module
l
RJ45 Connector
l
10 Base T (10
Mbit/s)
l
Ethernet fault
detection
Features:
Peripherals
Up to 32 radio peripherals (detectors, keypads, keyfobs) –
4 years’ independent operation on average. 1 programmable wired output
Video
(1)
Transfer of images captured by infrared detectors with built-in cameras
from the Domonial range (up to 10
(6)
video detectors)
Radio
868-870 Mhz narrow band. 10 sub-channels 2-way protocol.
Anti-jamming technology (Optional remote antenna)
Siren
Built-in loudspeaker / Siren. 95db max. 2 settings (intrusion / re)
Intercom
Built-in microphone & loudspeaker for audio verication and speech (half-duplex)
Transmission
Built-in PSTN transmitter with telephone line return.
Built-in or optional GSM transmitter, depending on the alarm panel model
(2)
Optional Ethernet transmitter
(2)
Protocols
PSTN: Secom 3 – Contact ID – Cesa – Surtec. IP/GPRS: Secom 3.
Users
10 users - including 1 master
System information
5 LEDs on the panel provide full system status.
Log: 1000 events
Power supply
230V AC
Backup battery 4V / 3.5 Ah – 60-hour / 48-hour independent operation
(depends on the module installed)
Home automation
X10-compatible – up to 12 peripherals
Dimensions (h x w x d)
183 x 235 x 48mm
Control peripherals and accessories:
TAG-G / TAG-I
l
Gray or ivory proximity tags
for TCU800M and LKP(E)
S8M-EN
Common keyfob features
l Full, partial or annex area
setting
l
Home automation control
(3)
TCB800M (White)
(5)
TCB800M-1 (Black)
(5)
TCC8M /TCC800M (Compact)
l
2-way communication
l
System status on request
l
Cyclic code encryption
l
Alarm memory warning
l
Programmable key
combinations
l
Optional belt or wall bracket
for TCC8M /TCC800M
l
TCC8M: Compliant to
DD6662:2010/ BS8243:2010
l
TCB800M-1 & TCC800M
include panic function for use
on local audible signalling
systems only
l
TCB800M-1: 75 x 37 x 16
mm (h x w x d)
l
TCC8M/TCC800M: 48 x 56 x
9 mm (h x w x d)
DOM-FOB
(5)
l
4-button keyfob
l
For use on local audible
signalling systems only
l
88 x 38 x 19 mm (h x w x d)
TCBPA8M-1
l
Panic button
l
Compliant to
DD6662:2010 BS8243:2010
l
75 x 37 x 16 mm (h x w x d)
TP800
l
Wired intercom terminal
l
Up to 3 peripherals and 30m
maximum
l
135 x 85 x 35 mm (h x w x d)
(3)
For home automation installations (to standard X10) tted
with XM10 modules
(4)
Cannot be used with DOM-FOB
(5)
Models with panic function
(6)
Or 5, depending on the model of detector used
Programming tools:
DOMOPC
l
Programming kit
l
Remote conguration
l
Remote diagnostics
l
Event log
l
Compatible with a PSTN line
equipped with fax / answering
machine
l
Software, USB/serial adapter,
CAB800PC and DOMODEM2
supplied
l
Display of images captured by
the infrared detector(s) with built-
in camera(s)
DOMODEM2
l
Modem for PSTN line
l
Serial cable supplied
DOMOPC-LT
l
Kit includes software, serial cable and
USB adapter
DOMOPC-GSM
l
GSM Modem supplied with software
and USB adapter
CAB800PC
l
Serial connector cable for local
programming
Ordering references: (alarm panels)
CMI8UK-STD-7 Alarm panel with built-in PSTN transmitter
CME8UK-STD7G Alarm panel with PSTN transmitter and GSM/GPRS module
Common keypad features:
l
Up to 10 users
l
Full, partial or annex area
setting
l
Home automation control
(3)
TCU4-800M
l
Keypad with integrated
proximity reader for
programming and
general use
l 155 x 62 x 28 mm (h x w x d)
LKP-S8M-EN/LKPES8M-EN
(4)
l
Keypad with integrated
proximity reader
l
Built-in 90dB siren
l
Half-duplex wireless audio
(LKPES8M-EN)
l
150 x 110 x 27 mm
GPRSE-1
(2)
l
GSM/GPRS Module
(900 / 1800 Mhz)
l
Provides main or backup
transmission
(1)
: Compatible with: CME8UK-SDT7G, CMI8UK-STD-7 tted with an ETH800 module
(2)
: Only one module can be tted in the panel (Ethernet or GPRS)
Honeywell reserves the right to change the product without prior notice.
EXT-ANTENNA-1
l
Remote antenna kit
l
2-way communication
l
Locate between 5 and 60m
from the control panel
