Electrical installation
Installation guide 762 VITO interfaces & VITO probes Page 27
Caution
For grounding reasons, first connect the black wires towards the level gauge (VITO
interface is powered by the level gauge).

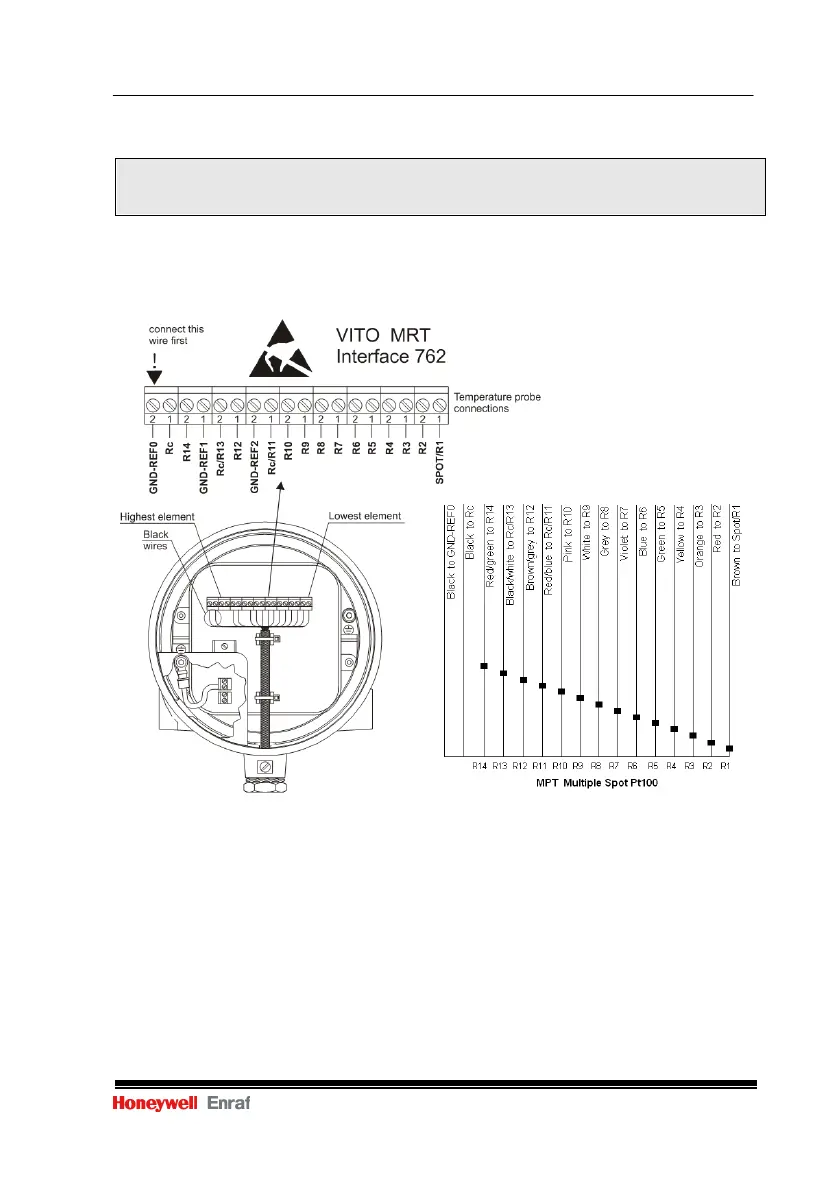

Figure 16 MPT Multiple Spot (Pt100) connected to 762 VITO-MRT
Note:
Non used MPT elements connections should be left open.
